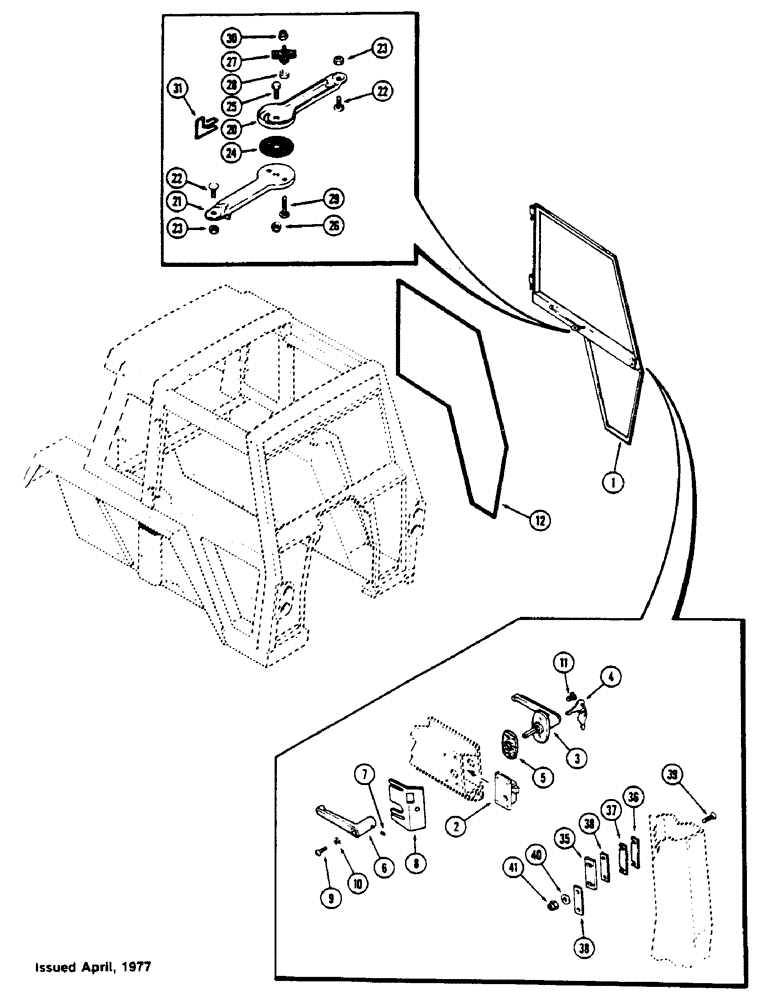

Запчасти Case IH 1175 (244) - CAB, DOOR, FIRST USED CAB SERIAL NUMBER 7838473 (09) - CHASSIS

1

F89394

DOOR

ASSY. - cab (Includes glass), for glass data and ordering, see Figure 342, Includes: Ref. 2 - 11

1шт.

2

F98122

LATCH

LOCK - door

1шт.

3

F64122

HANDLE

ASSY. - locking, Includes: Ref. 4

1шт.

4

A42653

SET OF 2 KEYS

KEY - door lock

2шт.

5

F63860

GASKET

- outside handle

1шт.

6

F63925

HANDLE

ASSY. - inside, Includes: Ref. 7

1шт.

7

176-49

SCREW - 5/16"-18 x 5/16" sltd. hd. cone pt. set

1шт.

8

F63658

COVER

- door latch

1шт.

9

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd

4шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

11

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- #10-24 x 5/8" Oval hd. Phillips

2шт.

12

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - door, 180-1/2" (Order A42504)

1шт.

A42504

TYRE/TIRE

WEATHERSTRIP - (50' roll)

1шт.

20

F63991

ARM

- door, upper

1шт.

21

F63990

ARM

- door, lower

1шт.

22

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8 x 3/4" N.C. rd. hd. sq. neck

2шт.

23

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - 3/8" hex., crown lock

2шт.

24

F63405

DISC

- friction, door arm

1шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

26

231-1445

NUT,5/16"-18, GB

NUT - 5/16" N.C. hex. lock

1шт.

27

F63415

KNOB

- door arm

1шт.

28

F63586

BUSHING

SPACER - knob

1шт.

29

111-261

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G2

BOLT - 5/16 x 2" N.C. rd. hd. sq. neck

1шт.

30

131-1117

LOCK NUT,5/16"-18, GA

NUT - 5/16" N.C. hex., crown lock

1шт.

31

F64025

DOOR

WIRE - door stop

1шт.

35

F63783

CATCH

- door

1шт.

36

F63784

SHIM

- door catch (12 ga.)

1шт.

37

F63785

SHIM

- door catch (14 ga.)

1шт.

38

F63786

SHIM

- door catch (20 ga.)

2шт.

39

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- 1/4 x 1" N.C. flat hd

2шт.

40

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

41

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. hex. lock

2шт.
