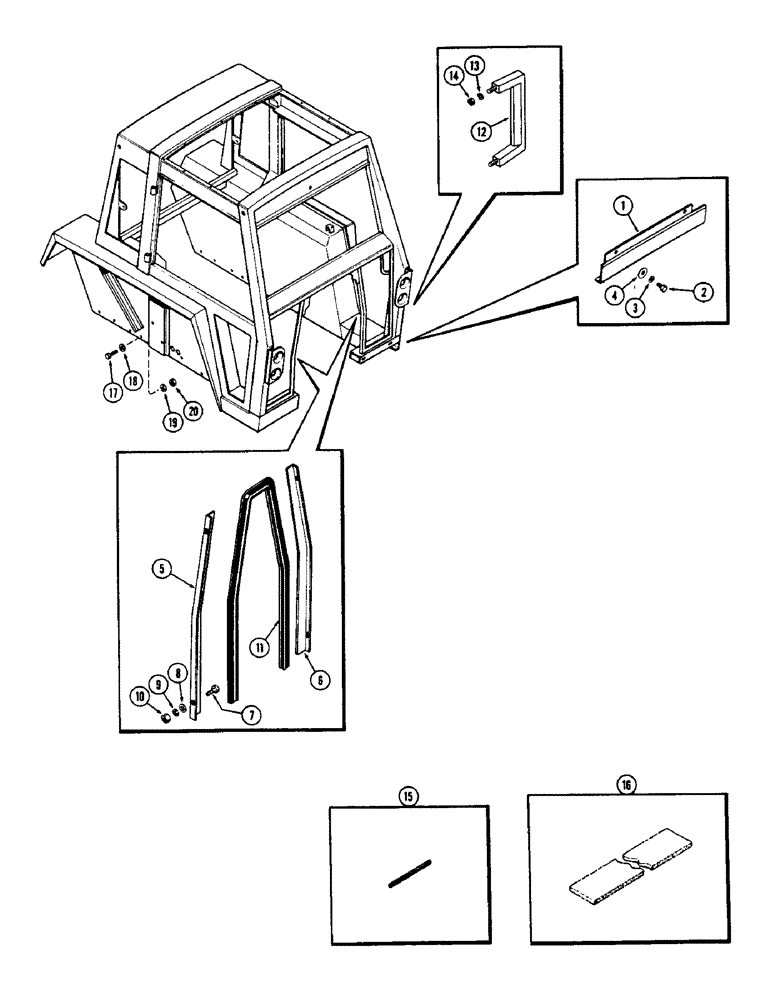

Запчасти Case IH 1175 (240) - CAB, LOWER SHEET METAL, USED PRIOR TO CAB SERIAL NUMBER 7814176 (09) - CHASSIS

F89696

CAB - w/o heater or air conditioner (Mach. Item)

1шт.

F89698

CAB - w/air conditioner (Mach. Item)

1шт.

F89700

CAB - w/heater (Mach. Item)

1шт.

F89702

CAB - w/air conditioner and heater (Mach. Item)

1шт.

1

F89641

PANEL

- battery access

1шт.

2

113-151

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

- 5/16 x 3/4" hex.

2шт.

3

192-45

LOCK WASHER

- lock, 5/16"

2шт.

4

195-80

WASHER - 3/8 x 1-1/8 x 1/16"

2шт.

5

A61138

FILLER - dust shield, R.H.

1шт.

6

A61139

FILLER - dust shield, L.H.

1шт.

7

113-30

BOLT - 1/4 x 5/8" N.C. hex.

4шт.

10

129-517

NUT - 1/4" N.C. hex.

4шт.

11

A62885

SEAL

- dust shield (90" long), to be attached with adhesive 345-22

1шт.

12

A60530

HANDLE

- cab mounting

1шт.

13

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-770

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

15

F63177

MOLDING - under hoses (6" long), to be attached with adhesive 345-22 (Order F13009)

2шт.

16

F63365

FOAM - temperature barrier, rear (1st used trac. ser. no. 8693001), to be attached with adhesive 345-22

1шт.

16

F63219

FOAM

- front, temperature barrier, to be attached with adhesive 345-22, Serial Range: -8693001

1шт.

17

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex.

2шт.

17

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8 x 1-3/4" N.C. hex.

4шт.

17

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- 3/8 x 1" N.C. hex.

14шт.

18

195-525

WASHER,3/8", SAE

- 3/8 x 1-1/8 x 1/16"

38шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

18шт.
