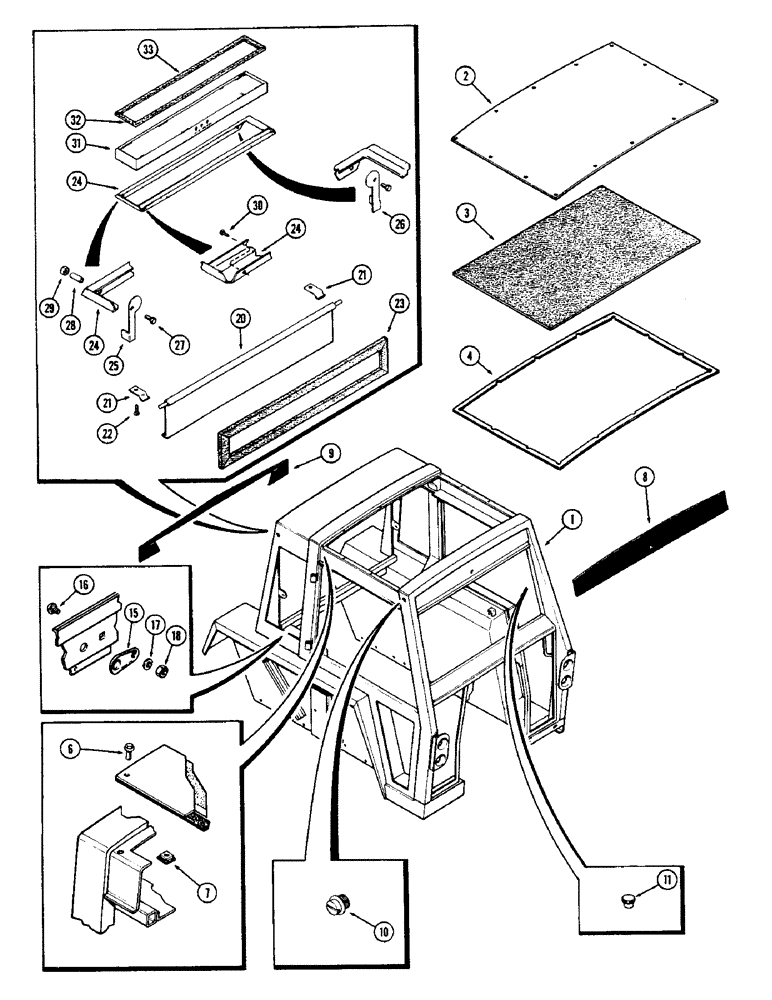

Запчасти Case IH 1175 (234) - CAB, UPPER SHEET METAL, USED PRIOR TO CAB SERIAL NUMBER 7814176 (09) - CHASSIS

F89696

CAB - w/o heater or air conditioner (Mach. Item)

1шт.

F89698

CAB - w/air conditioner (Mach. Item)

1шт.

F89700

CAB - w/heater (Mach. Item)

1шт.

F89702

CAB - w/air conditioner and heater (Mach. Item)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

2

F63721

PANEL

ROOF ASSY. - cab (Replaces F63196)

1шт.

3

F63722

FOAM

- roof temperature barrier (Replaces F63221)

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - roof, 1/4 x 3/8" (Order A42676)

1шт.

A42676

SEAL

- roof (25" roll)

1шт.

6

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. hex. washer hd. mach.

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- 1/4" "J" type Tinnerman

18шт.

8

A42582

DECAL

- front panel

1шт.

9

321-1915

DECAL - rear crown

1шт.

10

353-550

PLUG,Slotted, 1/2"-13

Plastic, In lifting holes Slotted, 1/2"-13

4шт.

11

353-408

PLUG,Dome, .750" hole, Nylon

- post holes, 3/4

2шт.

15

F12598

PLATE

COVER - utility

1шт.

16

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - 1/4 x 1/2' N.C. carr.

1шт.

17

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

18

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. Esna lock

1шт.

20

F89643

VALVE

ASSY. - pressure adjusting (rear mounted), for front mounted valve see Figure 272 (Order F89674)

1шт.

21

F63260

CLIP

- valve hinge

2шт.

22

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" phillips, self-tapping

2шт.

23

NSS

NOT SOLD SEPARAT

SEAL - valve, 1/8 x 1/2 x 16-1/2" (Order A42905)

1шт.

A42905

FOAM

SEAL - valve (50' roll)

1шт.

24

F89645

PLATE

ASSY. - filter inlet

1шт.

25

F63267

CAM - latch, R.H.

1шт.

26

F63266

LATCH

CAM - latch, L.H.

1шт.

27

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

28

T32262

SPACER - cam bolt

2шт.

29

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. hex., lock

2шт.

30

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" Phillips, self-tapping

7шт.

31

NLS

NO LONGER SERVICED

- air intake

1шт.

32

F63331

SEAL - filter sides, 1/4 x 3/4 x 5-3/32"

2шт.

33

F63332

SEAL

SEAL - filter front & rear, 1/4 x 3/4 x 38-1/2"

2шт.
