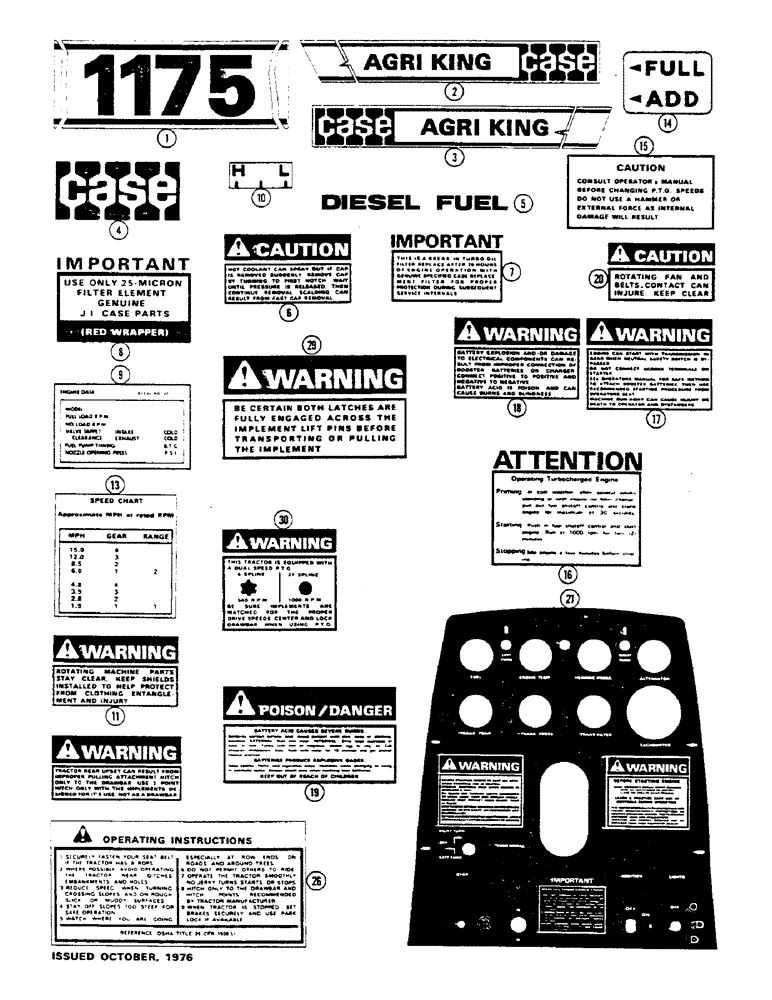

Запчасти Case IH 1175 (223A) - DECALS, FIRST USED TRACTOR SERIAL NUMBER 8736722 (09) - CHASSIS

A45265

KIT

- decal, Includes: Ref. 1 - 21

1шт.

1

321-2662

DECAL

- 1175

2шт.

2

321-2670

DECAL

- Case Agri-king, R.H. side

1шт.

3

321-2671

DECAL

- Case Agri-king, L.H. side

1шт.

4

321-2600

DECAL

- Case (On fuel tank)

1шт.

5

321-2601

DECAL

- diesel fuel (On fuel tank)

1шт.

6

321-3708

DECAL

- pressure cooling system (Replaces 321-2100)

1шт.

7

321-3863

DECAL

- important, engine oil filter change (Replaces 321-2101)

1шт.

8

321-1763

DECAL

- hydraulic oil filter (25 micron)

1шт.

9

321-2312

DECAL

- engine data

1шт.

10

321-1335

DECAL

- seat adjustment indicator

1шт.

11

321-3710

DECAL

- Caution, shields (Replaces 321-2682)

1шт.

13

321-1631

DECAL

- 8 speed

1шт.

14

321-1642

DECAL

- Add-Full (Trans. case)

1шт.

15

321-1650

DECAL

- Caution, P.T.O.

1шт.

16

321-3765

DECAL

- Attention, turbo procedure

1шт.

17

321-3709

DECAL

- Danger, starter (Replaces 321-2788)

1шт.

18

321-3707

DECAL

- booster, charger connection

1шт.

1st used on tractor S.N. 8797501

1шт.

19

321-2996

DECAL

- Safety label, battery hazard

1шт.

20

321-3596

DECAL

- Caution, fan

1шт.

1st used on tractor S.N. 8797501

1шт.

21

321-3764

DECAL

- operational procedure and inst. panel

1шт.

1st used on tractor S.N. 8797501

1шт.

25

321-3104

DECAL

KIT - decal, control console and inst. panel

1шт.

1st used on tractor S.N. 8797501

1шт.

26

321-3895

DECAL

- operational instruction (OSHA) (Replaces 321-3739)

1шт.

1st used on tractor S.N. 8797501

1шт.

28

321-3845

DECAL

- hitch instructions

1шт.

1st used on tractor S.N. 8797501

1шт.

29

321-3339

DECAL

- warning latch

1шт.

30

321-3901

DECAL

- P.T.O. dual speed

1шт.
