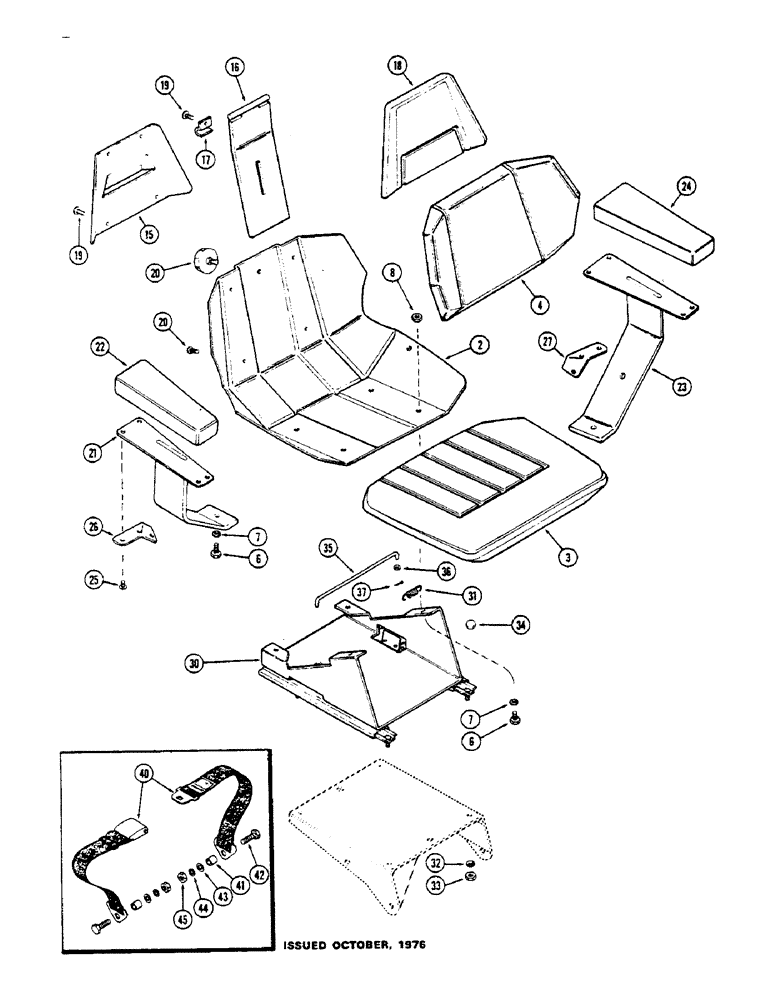

Запчасти Case IH 1175 (220) - AGRI-KING SEAT, VINYL WITHOUT CAB, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS

A64492

SEAT

ASSY. - Agri-King, vinyl (w/o cab), Includes: Ref. 2 - 27

1шт.

2

A60461

FRAME

ASSY. - seat (Order A66642)

1шт.

3

A60462

CUSHION

ASSY. - seat bottom

1шт.

4

A64823

CUSHION

ASSY. - backrest

1шт.

5

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- #10 x 3/4" N.C. pan hd., mach.

6шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

7

92-6

LOCK WASHER,3/8"

8шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

NSS

NOT SOLD SEPARAT

BACKREST ASSY. - upper, Includes: Ref. 15 - 19

1шт.

15

A60478

FRAME

- upper backrest cushion (Order A66649)

1шт.

16

A64825

PLATE

SPRING ASSY. - backrest (Order A66648)

1шт.

17

A60479

CLIP

- upper backrest, pivot

2шт.

18

A60472

CUSHION

ASSY. - backrest, upper

1шт.

19

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- #10 x 1/2" pan hd., mach.

6шт.

20

A60468

KNOB

ASSY. - backrest adjusting

1шт.

21

A61092

SUPPORT

ASSY. - armrest, R.H.

1шт.

22

A61098

CUSHION

- armrest, R.H.

1шт.

23

A61093

SUPPORT

ASSY. - armrest, L.H.

1шт.

24

A61099

CUSHION

- armrest, L.H.

1шт.

25

187-534

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - #10 x 1/2" rd. hd. self-tapping

8шт.

26

A64828

BRACKET

SUPPORT - armrest to lower backrest, R.H.

1шт.

27

A64829

BRACKET

SUPPORT - armrest to lower backrest, L.H.

1шт.

30

A60450

SUPPORT

ASSY. - seat, upper, Includes: Ref. 31

1шт.

31

A42299

SPRING

- adjuster return

1шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

33

9635082

NUT,5/16" - 18, Gr 5

4шт.

34

A59829

KNOB

- seat adjusting, to be attached with adhesive 345-22

1шт.

35

A60898

ROD - seat lock

1шт.

36

95-3

WASHER,#12

- 1/4 x 9/16 x 3/64"

2шт.

37

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

40

A66391

SAFETY BELT

SAFETY BELT (Replaces A60906)

1шт.

41

A60907

BUSHING

SPACER - anchor, seat belt

2шт.

42

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

43

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

2шт.

44

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

45

425-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

2шт.
