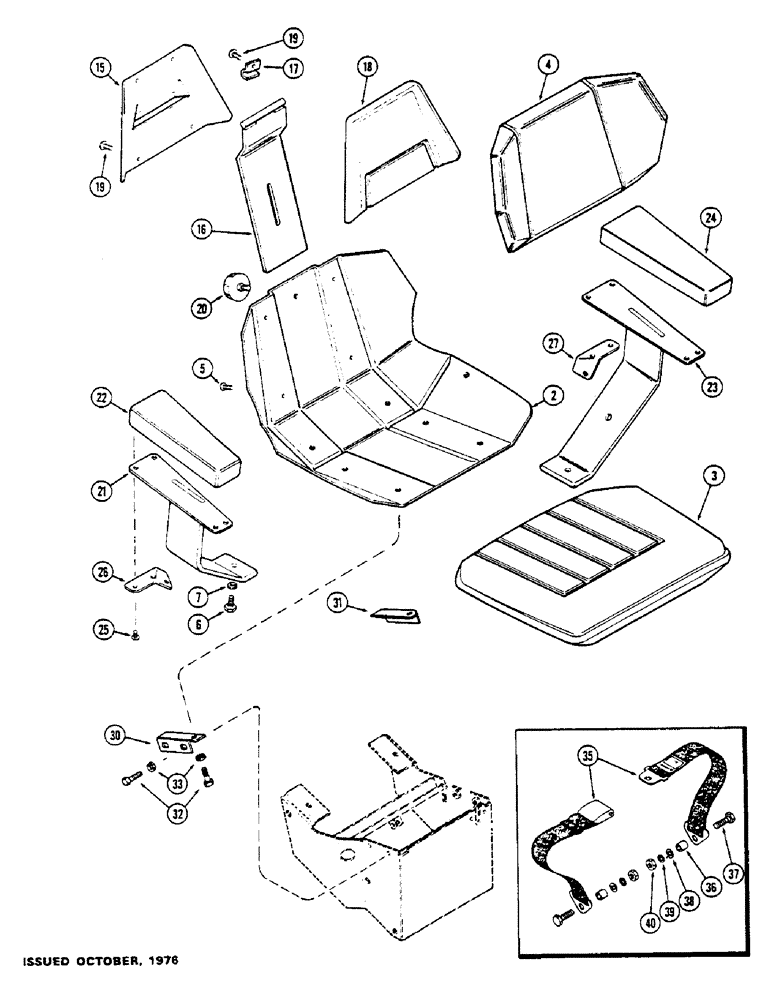

Запчасти Case IH 1175 (219G) - AGRI-KING SEAT, VINYL WITHOUT CAB, USED TRACTOR SERIAL NUMBER 8693001 TO 8736722 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
A64492
SEAT
ASSY. - complete w/arms and backrest (Includes: Ref. 2 - 27)
1шт.
A64833
SEAT
ASSY. - w/o arms and backrest (Includes: Ref. 2 - 8)
1шт.
2
A60461
FRAME
ASSY. - seat (Order A66642)
1шт.
3
A60462
CUSHION
ASSY. - seat bottom
1шт.
4
A64823
CUSHION
ASSY. - backrest
1шт.
5
182-526
SCREW,Cross Pan Hd, #10 - 24 x 3/8"
- #10-24 x 3/8" pan hd
6шт.
7
193-68
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
8шт.
8
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
4шт.
15
A60478
FRAME
- upper backrest (Order A66649)
1шт.
16
A64825
PLATE
SPRING ASSY. - backrest (Order A66648)
1шт.
17
A60479
CLIP
- upper backrest pivot
1шт.
18
A60472
CUSHION
- upper backrest
1шт.
19
182-123
SCREW,Sl Pan Hd, #10 - 24 x 3/8"
- #10-24 x 1/2" pan hd
6шт.
20
A60468
KNOB
ASSY. - adjusting, backrest
1шт.
21
A61092
SUPPORT
- R.H. armrest
1шт.
22
A61098
CUSHION
- R.H. armrest
1шт.
23
A61093
SUPPORT
- L.H. armrest
1шт.
24
A61099
CUSHION
- L.H. armrest
1шт.
25
187-534
SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"
SCREW - #10 x 1/2" rd. hd. self-tapping
8шт.
26
A64828
BRACKET
SUPPORT - R.H., Serial Range: armrest-backrest
1шт.
27
A64829
BRACKET
SUPPORT - L.H., Serial Range: armrest-backrest
1шт.
30
A65140
BRACKET
- seat support, R.H.
1шт.
31
A65141
BRACKET
- seat support, L.H.
1шт.
32
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
4шт.
33
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
35
A66391
SAFETY BELT
SAFETY BELT (Replaces A60906)
1шт.
36
A60907
BUSHING
SPACER - anchor, seat belt
2шт.
37
A61946
STEP BOLT
BOLT - seat belt shoulder
2шт.
38
195-529
WASHER,7/16", SAE
- 15/32 x 59/64 x 1/16"
2шт.
39
192-22
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
40
425-117
NUT,7/16"-20, G5
- 7/16" N.F. hex
2шт.
Выбрано товаров: 32
