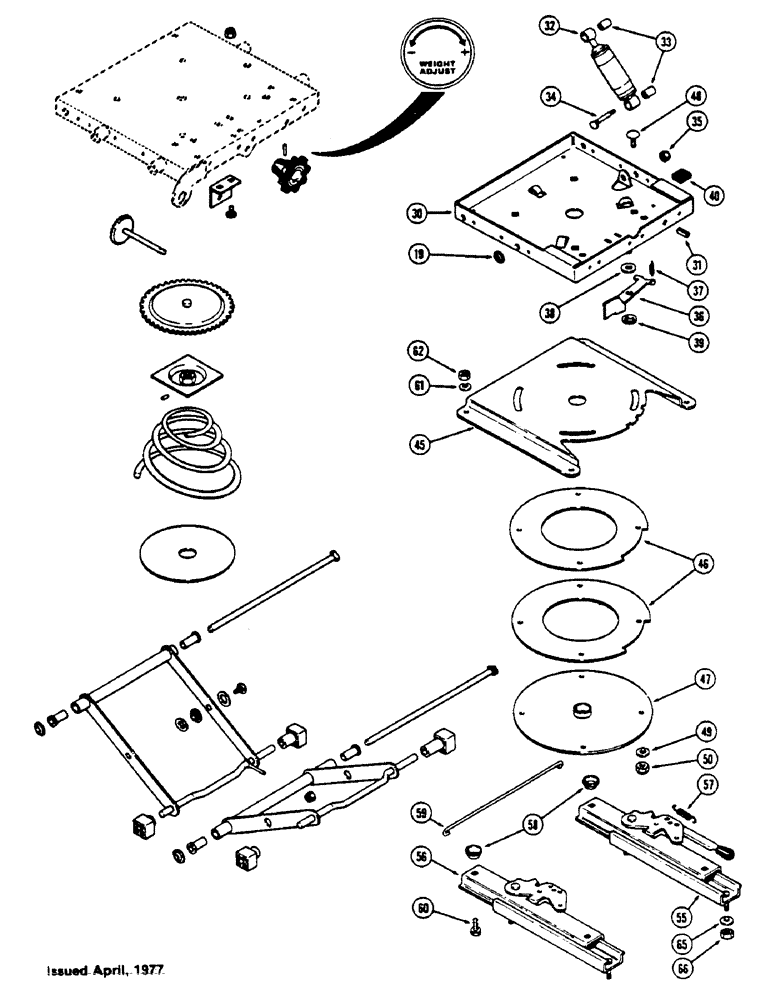

Запчасти Case IH 1175 (215I) - SEAT, CLOTH, WITH SWIVEL, FIRST USED TRACTOR SERIAL NUMBER 8802110 (09) - CHASSIS

A139350

SEAT

AND SUSPENSION ASSY. - Includes: Ref. 30 - 62 and 1 - 38 on Fig. 215G

1шт.

30

NSS

NOT SOLD SEPARAT

BASE ASSY. - lower, w/swivel

1шт.

31

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

32

A45503

SHOCK ABSORBER

- seat

1шт.

33

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

34

A45056

STEP BOLT

BOLT - shoulder (Replaces A45502)

1шт.

35

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - 3/8" N.C. hex. nylock

1шт.

36

A45520

LATCH

- swivel

1шт.

37

A45521

SPRING

- latch swivel

1шт.

38

A45519

WASHER

- spacer

1шт.

39

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Pal type) Push, 1/2"

1шт.

40

A45054

BUMPER,Neoprene

- seat (Replaces A45509)

2шт.

45

A45582

PLATE

- swivel latch

1шт.

46

A45514

DISC

BEARING - swivel

2шт.

47

NSS

NOT SOLD SEPARAT

PLATE ASSY. - bottom swivel

1шт.

48

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8 x 1-1/4" N.C. rd. hd. sq. neck

4шт.

49

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

4шт.

50

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" N.C. hex. lock

4шт.

55

A45522

SLIDE

- w/handle

1шт.

56

A45523

SLIDE

- locking, Includes: Ref. 57

1шт.

57

A45060

SPRING

- slide

1шт.

58

NSS

NOT SOLD SEPARAT

SPACER - slides (Supplied w/slides)

4шт.

59

A45524

ROD

- latch connecting

1шт.

60

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

4шт.

61

92-5

LOCK WASHER,5/16"

4шт.

62

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

65

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

4шт.

66

9635082

NUT,5/16" - 18, Gr 5

4шт.
