(215C) - SEAT CONVERSION ATTACHMENT, NON-SWIVEL TO DELUXE SWIVEL

Запчасти Case IH 1175 (215C) - SEAT CONVERSION ATTACHMENT, NON-SWIVEL TO DELUXE SWIVEL (09) - CHASSIS

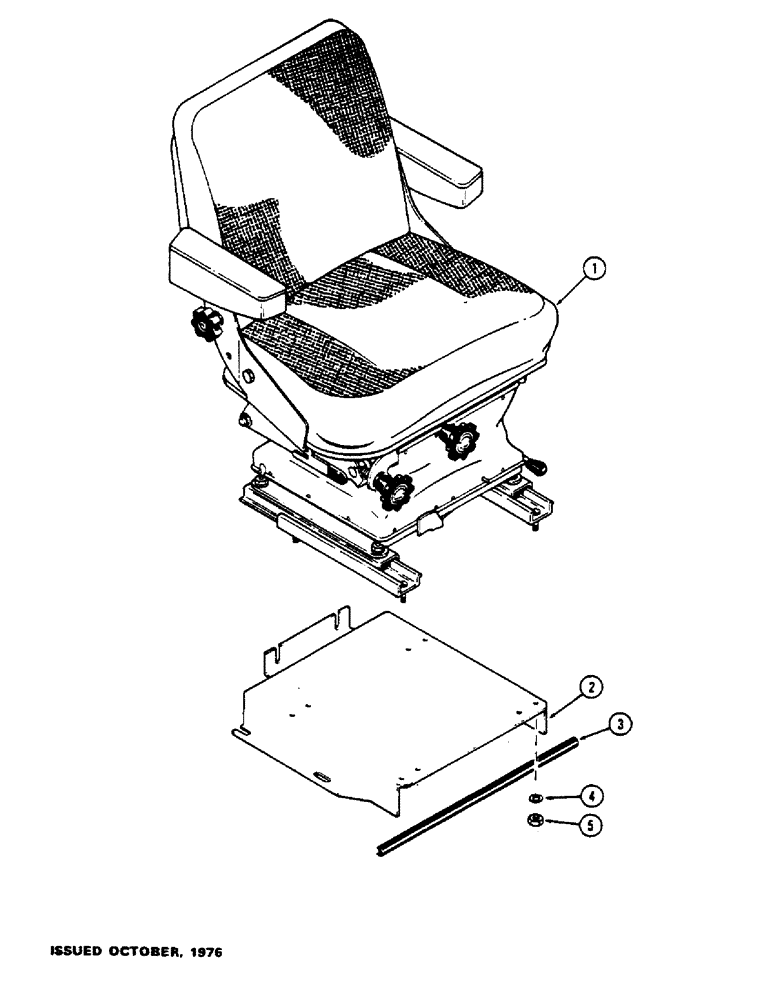

Схема запчастей Case IH 1175 - (215C) - SEAT CONVERSION ATTACHMENT, NON-SWIVEL TO DELUXE SWIVEL (09) - CHASSIS
5
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A67202

ATTACHMENT

- seat conversion (Mach. item), Includes: Ref. 1 - 5

1шт.

1

A139350

SEAT

ASSY. - cloth w/swivel (See Figures 215E and 215G)

1шт.

2

A141329

ADAPTER

- seat to support plate

1шт.

3

A64865

SEAT

TRIM - seat adapter edge

1шт.

4

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 5/64"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.
