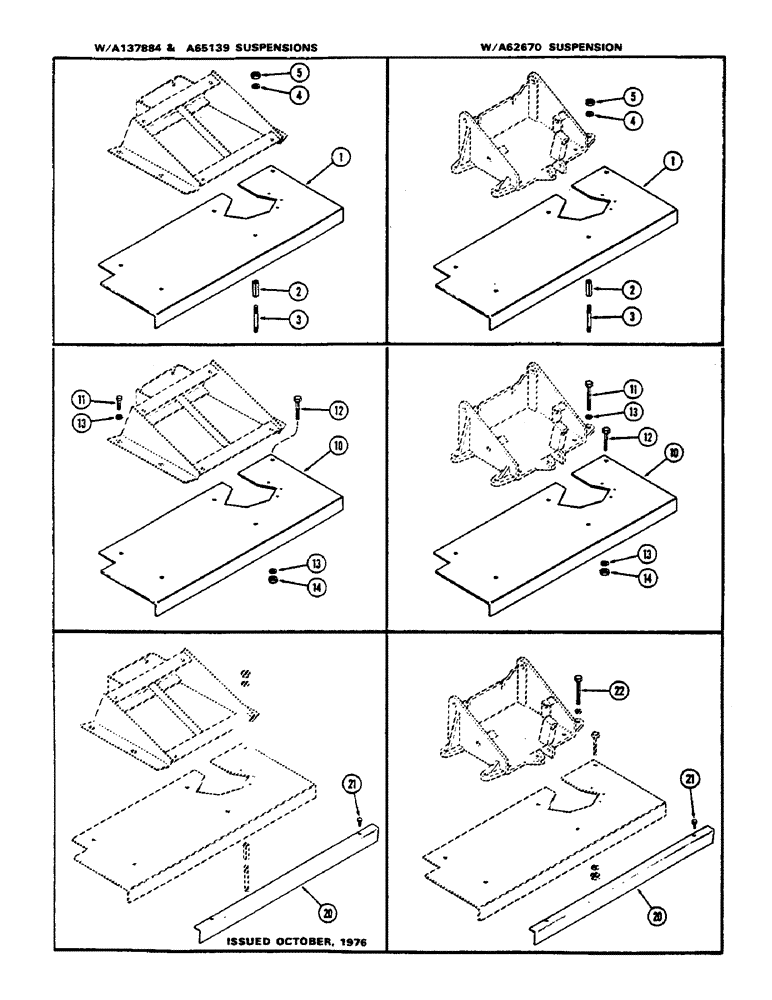

Запчасти Case IH 1175 (215A) - SEAT SUSPENSION SUPPORTS, WITHOUT CAB, USED TRACTOR SERIAL NUMBERS 8727601 TO 8802110 (09) - CHASSIS

1

A62672

PLATE

- seat suspension support

1шт.

2

A65472

SPACER

- plate

5шт.

3

A66428

PLATE

STUD - 3/8" N.C. x 3-1/2"

5шт.

4

195-104

WASHER,3/8"

- 7/16 x 1 x 3/32"

5шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

10

A62673

SUPPORT

PLATE - seat suspension support w/spacers (Order 1-A62672, 5-A66428, 5-195-104 and 5-129-103), to trac., Serial Range: -8727601

1шт.

11

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

to trac. Hex, 3/8"-16 x 3", G5, Serial Range: -8727601

4шт.

12

113-294

BOLT - 3/8 x 2-3/4" N.C. hex., to trac., Serial Range: -8727601

1шт.

13

92-6

LOCK WASHER,3/8"

to trac. 3/8", Serial Range: -8727601

1шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., to trac., Serial Range: -8727601

1шт.

20

A62461

FLOOR

ANGLE - floor mat retaining W/ CAB

1шт.

21

187-1060

SELF-TAP SCREW,Sltd Hex Hd, 1/4" x 3/4"

SCREW - 1/4 x 3/4" N.C. self-tapping W/ CAB

2шт.

22

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

to trac, w/cab Hex, 3/8"-16 x 3 1/4", G5, Serial Range: -8727601

4шт.
