Запчасти Case IH 1175 (212) - CONTROL CONSOLE (09) - CHASSIS

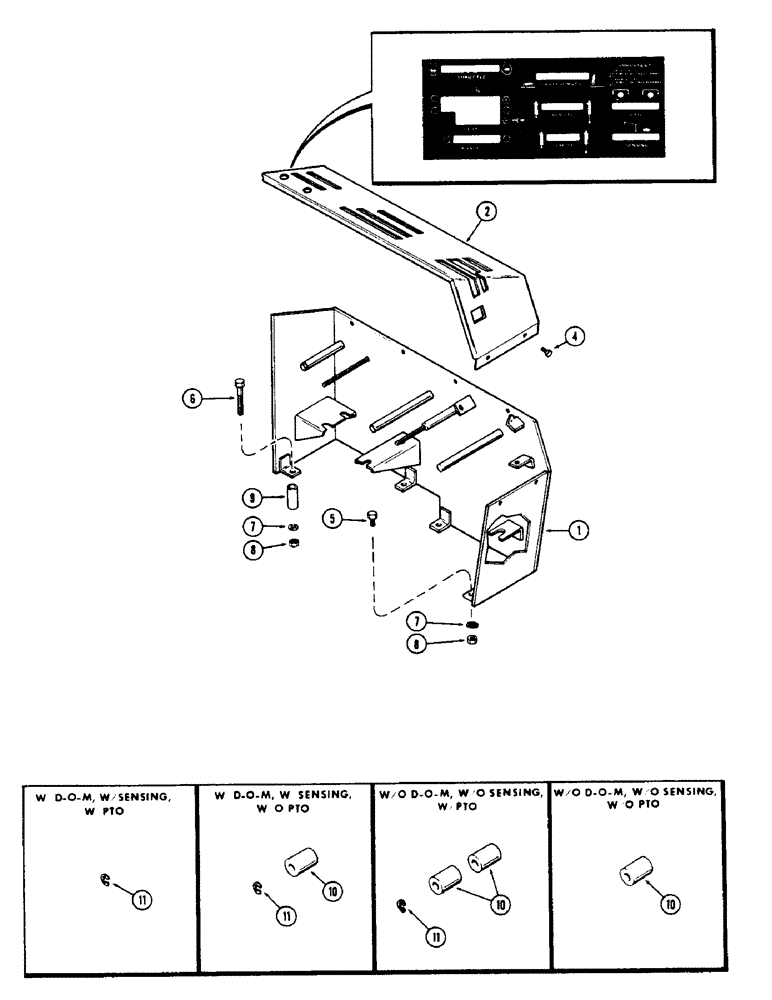

Схема запчастей Case IH 1175 - (212) - CONTROL CONSOLE (09) - CHASSIS
9
7
2
10
1
5
11
10
8
6
7
11
11
8
4
10

Артикул

Название

Примечание

Количество

1

A65581

CONSOLE - control (1st used trac. ser. no. 8711576)

1шт.

1

A64582

CONSOLE - control to trac., Serial Range: -8711576

1шт.

2

A65580

COVER

- console (Incl. decals) (1st used trac. ser. no. 8711576)

1шт.

2

A64559

COVER

- console (Incl. decals), see Figure 222 for deecal kit to trac., Serial Range: -8711576

1шт.

4

113-22

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

- 1/4 x 1/2" N.C. hex.

6шт.

5

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

5

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- 3/8 x 1-7/8" N.C. hex.

1шт.

6

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex

1шт.

7

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

3шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

9

A65472

SPACER

- console (13/32 x 9/16 x 2" long)

1шт.

10

A59994

SPACER

- D-O-M sensing and P.T.O. (See Insets)

1шт.

11

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, (see insets) #62, .480" Dia, E-Type

1шт.

Выбрано товаров: 13
