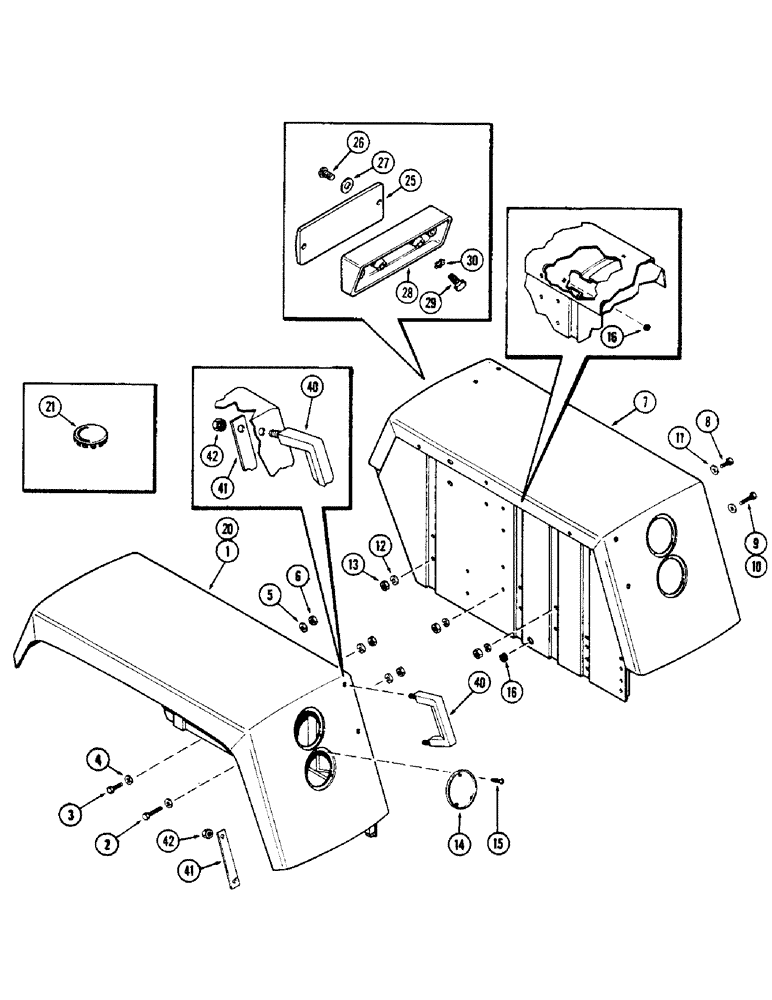

Запчасти Case IH 1175 (211A) - FENDERS, 24 INCH FENDER (09) - CHASSIS

1

A65358

FENDER

ASSY. - R.H. (Replaces A62304 and A64886)

1шт.

2

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

5шт.

3

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

7

A64887

FENDER

ASSY. - L.H. (Replaces A62309)

1шт.

8

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- 3/8 x 2-1/2" N.C. hex.

3шт.

9

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

10

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

11

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

6шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

14

A66660

PLATE

COVER - cultivator light opening (1st used trac. ser. no. 8736722)

1шт.

14

A59330

COVER

- cultivator light opening (Order A66660) to trac., Serial Range: -8736722

1шт.

15

187-1050

SCREW

- #10 x 1/2" N.C. type "T" tape

3шт.

16

A59722

GROMMET

- wire harness

2шт.

20

A65358

FENDER

ASSY. - R.H. (Replaces A64886)

1шт.

21

A63779

HOLE PLUG BUTTON,17/32"

PLUG - black button (for hole) 17/32"

1шт.

25

A62415

REFLECTOR

- red, fender rear

2шт.

26

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - #10 x 5/8" rd. hd. self-tapping

4шт.

27

195-512

WASHER,#10

- plain, 7/32 x 7/16 x 1/16"

4шт.

28

A62416

BRACKET

- reflector

2шт.

29

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - 1/4 x 1/2" hex. hd. self-tapping

4шт.

30

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int.-ext. Shakeproof

4шт.

40

A60530

HANDLE

- mounting

1шт.

41

A59338

PLATE

- handle mounting, R.H.

1шт.

42

230-4216

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C.

2шт.
