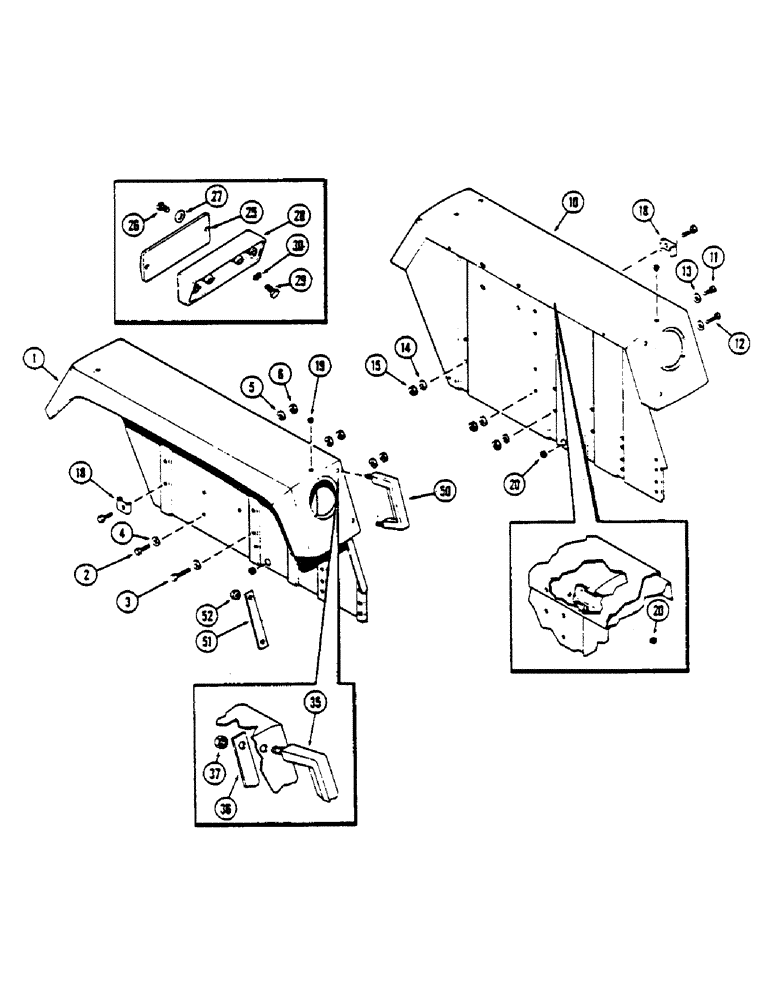

Запчасти Case IH 1175 (210) - FENDERS, 12 INCH FENDER (09) - CHASSIS

1

A64878

FENDER

ASSY. - R.H. (Replaces A62296)

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

10

A64879

FENDER

ASSY. - L.H. (Replaces A62297)

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

13

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

6шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

18

A59318

BRACKET

- fender side sheet mounting

4шт.

19

353-405

PLUG,Dome, .562" hole, Nylon

- 9/16" button

1шт.

20

A59722

GROMMET

- wire harness

2шт.

25

A62415

REFLECTOR

- red, fender rear

2шт.

26

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - #10 x 5/8" rd. hd. self-tapping, reflectors

4шт.

27

195-512

WASHER,#10

- plain, 7/32 x 7/16 x 1/16", reflectors

4шт.

28

A62416

BRACKET

- reflector

2шт.

29

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - 1/4 x 1/2" hex. hd. self-tapping, reflectors

4шт.

30

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int.-ext. Shakeproof, reflectors

4шт.

35

A60530

HANDLE

- mounting

1шт.

36

A59338

PLATE

- handle mounting, R.H.

1шт.

37

230-4216

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C., handles

2шт.
