Запчасти Case IH 1175 (208) - TOOL BOX (09) - CHASSIS

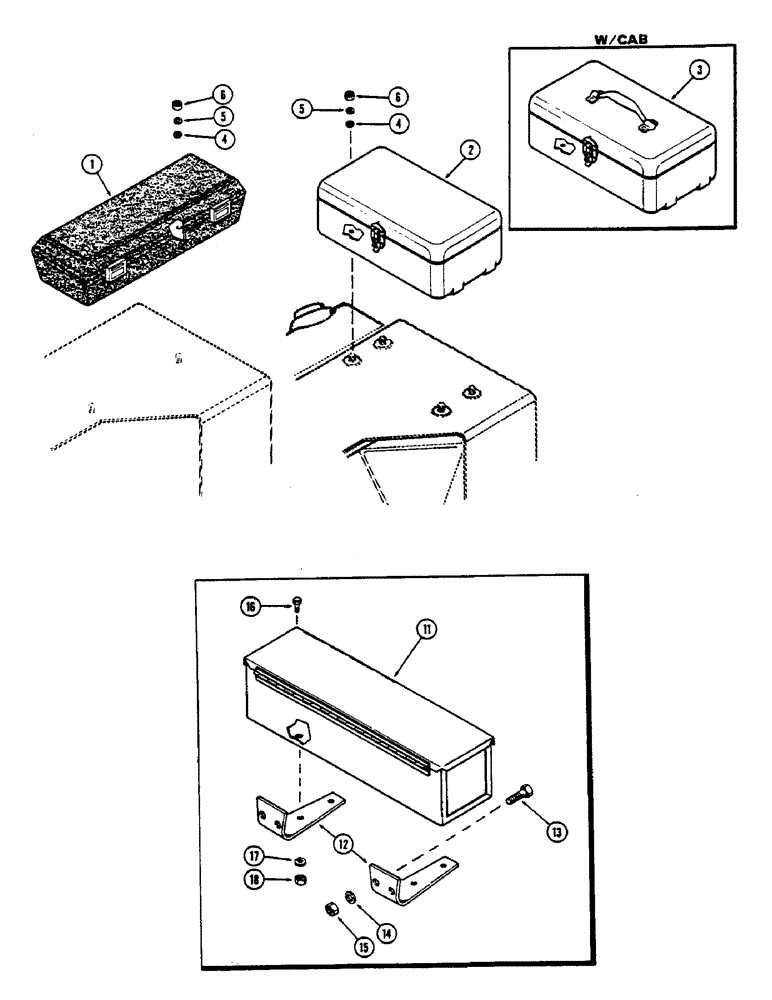

Схема запчастей Case IH 1175 - (208) - TOOL BOX (09) - CHASSIS
4
12
14
6
5
15
16
3
11
1
6
17
2
5
13
18
4

Артикул

Название

Примечание

Количество

1

A66152

BOX

- tool (used w/ or w/o cab) (Replaces A61174 and A61788 tool boxes)

1шт.

2

A61174

BOX

- tool (mounted on fuel tank cover) (w/o cab) (Order A66152)

1шт.

3

A61788

BOX, TOOL

BOX - (tool w/cab) (Order A66152)

1шт.

4

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. hex. jam, Gripco

4шт.

A61840

BOX, TOOL

ATTACHMENT - tool box (Mach. Item), Includes: Ref. 11 - 18

1шт.

11

A59844

BOX, TOOL

TOOL BOX ASSY.

1шт.

12

A61568

SUPPORT

- tool box

2шт.

13

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

4шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 5/16 x 7/8" N.C. hex.

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" N.C. hex., lock

4шт.

Выбрано товаров: 15
