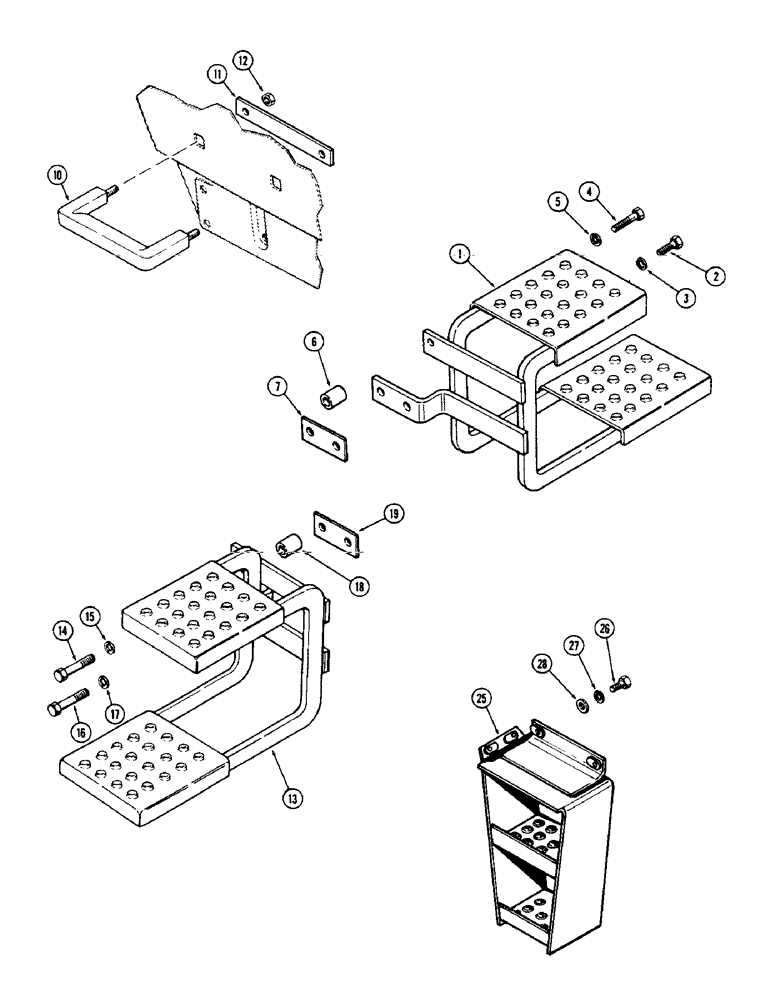

Запчасти Case IH 1175 (206) - STEPS, WITHOUT CAB (09) - CHASSIS

1

A64733

STEP ASSY. - L.H.

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

3

92-8

LOCK WASHER,1/2"

1шт.

4

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

A64735

SPACER - upper, step assy.

1шт.

7

A64699

SPACER - lower, step assy.

1шт.

A64745

ATTACHMENT - step and handle, R.H. (Mach. Item), Includes: Ref. 10 - 19

1шт.

10

A60530

HANDLE

- mounting, R.H. step attachment

2шт.

11

A59338

PLATE

- handle mtg., fender, R.H. step attachment

1шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex., twin lock, RH step attachment

4шт.

13

A64732

STEP ASSY. - R.H., attachment

1шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

R.H. step attachment Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

14

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

R.H. step attachment Hex, 1/2"-13 x 3 1/4", G5

1шт.

15

92-8

LOCK WASHER,1/2"

R.H. step attachment 1/2"

1шт.

16

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

R.H. step attachment Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

16

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

R.H. step attachment Hex, 5/8"-11 x 3 1/4", G5

2шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , RH step attachment 5/8"

2шт.

18

A64735

SPACER - step adapter, upper (w/o side rail), R.H. step attachment

1шт.

19

A64699

SPACER - step adapter, lower (w/o side rail), R.H. step attachment

1шт.

25

A61143

STEP

ASSY., w/ cab

1шт.

26

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex., w/ cab

4шт.

27

92-6

LOCK WASHER,3/8"

w/cab 3/8"

4шт.

28

195-26

WASHER

WASHER - 7/16 x 7/8 x 3/32", w/ cab

4шт.
