Запчасти Case IH 1175 (204) - PLATFORM (09) - CHASSIS

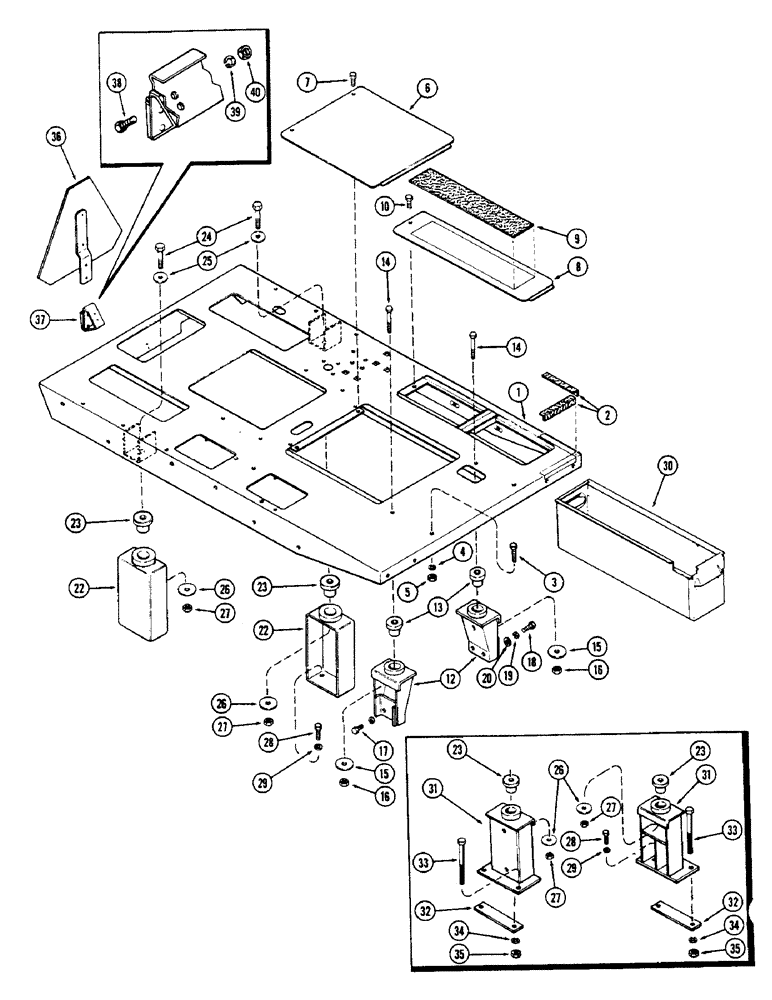

Схема запчастей Case IH 1175 - (204) - PLATFORM (09) - CHASSIS
26
35
23
34
32
5
24
33
14
9
20
2
35
23
34
15
18
19
23
4
23
32
13
17
27
6
3
28
22
27
36
1
10
40
26
22
29
25
14
38
12
29
31
16
15
26
27
39
27
7
16
8
31
33
28
37
30

Артикул

Название

Примечание

Количество

1

A135050

LARGE PLATE

DECK ASSY. - platform (Replaces A62703 and A66429)

1шт.

2

A62468

TREAD

- platform (non-slip)

2шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

6

A61175

COVER ASSY. - platform

1шт.

7

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

8

A59507

GUARD

COVER ASSY. - battery access

1шт.

9

A62469

COVER

TREAD - battery box cover (non-slip)

1шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

12

A62652

MOUNTING PARTS

MOUNT ASSY. - platform, front

2шт.

13

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

MOUNT - rubber, front

2шт.

14

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

15

A66681

WASHER

- 33/64 x 2 x 1/4"

2шт.

16

131-1116

LOCK NUT,1/2"-13, GB

NUT - 1/2" N.c. hex.

2шт.

17

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

2шт.

18

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 3/4"

2шт.

22

A60547

MOUNT ASSY. - platform, rear (w/o cab) (See Ref. 31)

2шт.

23

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

MOUNT - rubber, rear

2шт.

24

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8 x 3-1/2" N.C. hex.

2шт.

25

95-10

WASHER,5/8"

- plain, 11/16 x 1-3/4 x 9/64"

2шт.

26

A59517

WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk

- 21/32 x 2-1/4 x 1/4"

4шт.

27

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

28

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.

30

A62137

BOX

ASSY. - battery

1шт.

31

A64408

PLATFORM

MOUNT ASSY. - platform, rar (w/cab)

2шт.

32

A60874

PLATE - platform rear mount

2шт.

33

15-8144

BOLT - 1/2 x 9" N.C. hex

4шт.

34

92-8

LOCK WASHER,1/2"

4шт.

35

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

36

A59450

WARNING SIGN

EMBLEM ASSY. - slow moving vehicle

1шт.

37

A60977

BRACKET

ASSY. - emblem

1шт.

38

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

40

129-104

NUT,7/16"-14, G5

- 1/4" N.C. hex.

2шт.

Выбрано товаров: 38
