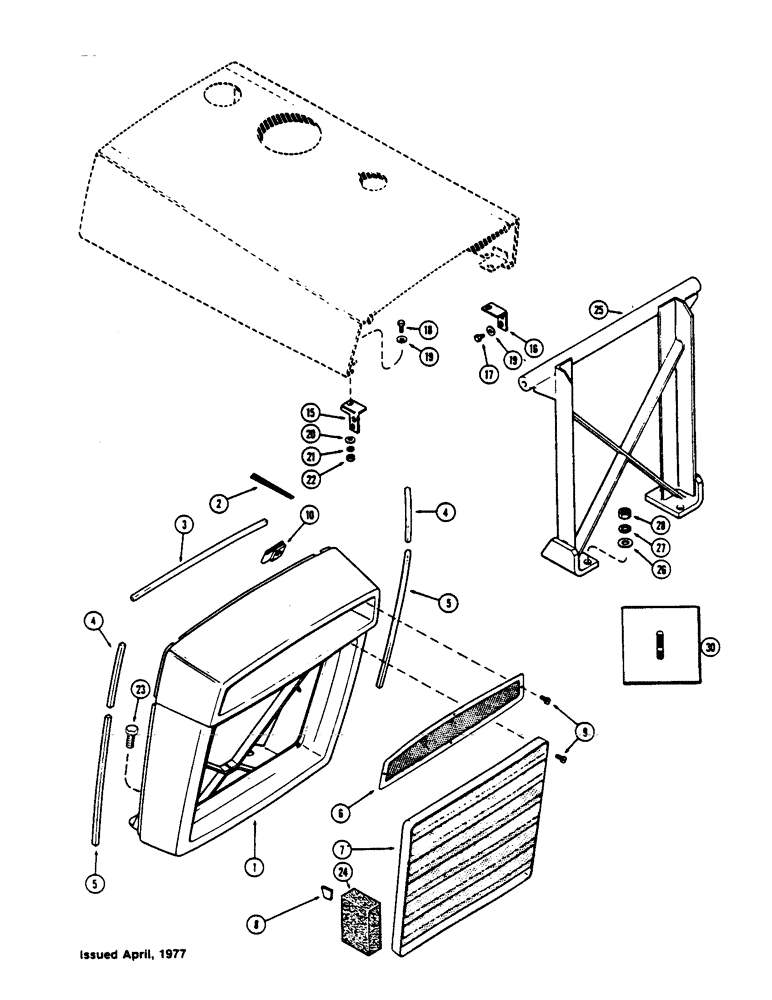

Запчасти Case IH 1175 (200) - GRILLE (09) - CHASSIS

1

A139374

GUARD

GRILLE - fiberglass (Replaces A64244)

1шт.

2

A135604

POINTER

TRIM - grille, sight gauge (Replaces A62690)

1шт.

3

A59746

SEAL

SPACER - hood to grille, center, to be attached with adhesive 345-22

1шт.

4

A59747

GASKET

SPACER - hood to grille side, upper, to be attached with adhesive 345-22

2шт.

5

A59748

GASKET

SPACER - front side sheets to grille, to be attached with adhesive 345-22

2шт.

6

A59754

GRILLE

SCREEN ASSY. - grille cap

1шт.

7

A59752

FILTER SCREEN

SCREEN ASSY. - grille

1шт.

8

A62211

FOAM

- grille screen spacer, to be attached with adhesive 345-22

12шт.

9

169-154

SCREW,Phil Fil Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. Phillips hd. mach

8шт.

10

131-616

NUT,Ret, J, 5/16"-18

- 5/16" Tinnerman

8шт.

15

A62742

BRACKET

- hood to grille, R.H.

1шт.

16

A62743

BRACKET

- hood to grille, L.H.

1шт.

17

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

- 5/16 x 7/8" N.C. hex

4шт.

18

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- 5/16 x 1" N.C. hex

2шт.

19

195-130

WASHER - 3/8 x 7/8 x 5/64"

4шт.

20

195-128

WASHER,5/16"

- 3/8 x 1-1/8 x 1/16"

4шт.

21

192-45

LOCK WASHER

- lock, 5/16"

6шт.

22

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex

2шт.

23

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(Grille to front support) Hex, 3/4"-10 x 2", G5

4шт.

24

A147163

SEAL

- grille, to be attached with adhesive 345-22

2шт.

25

A60535

ATTACHMENT - implement support (Mach. Item)

1шт.

26

195-45

WASHER,3/4"

4шт.

27

192-167

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

28

25-1712

NUT,3/4"-16, G5, Hvy

- 3/8" N.F. hex

4шт.

30

A59423

STUD - grille, 3/4" N.F. x 3-45/64"

4шт.
