Запчасти Case IH 1175 (010) - (451B) TURBO DIESEL ENGINE, AIR CLEANER, FIRST USED TRACTOR SERIAL NUMBER 8736747 (02) - ENGINE

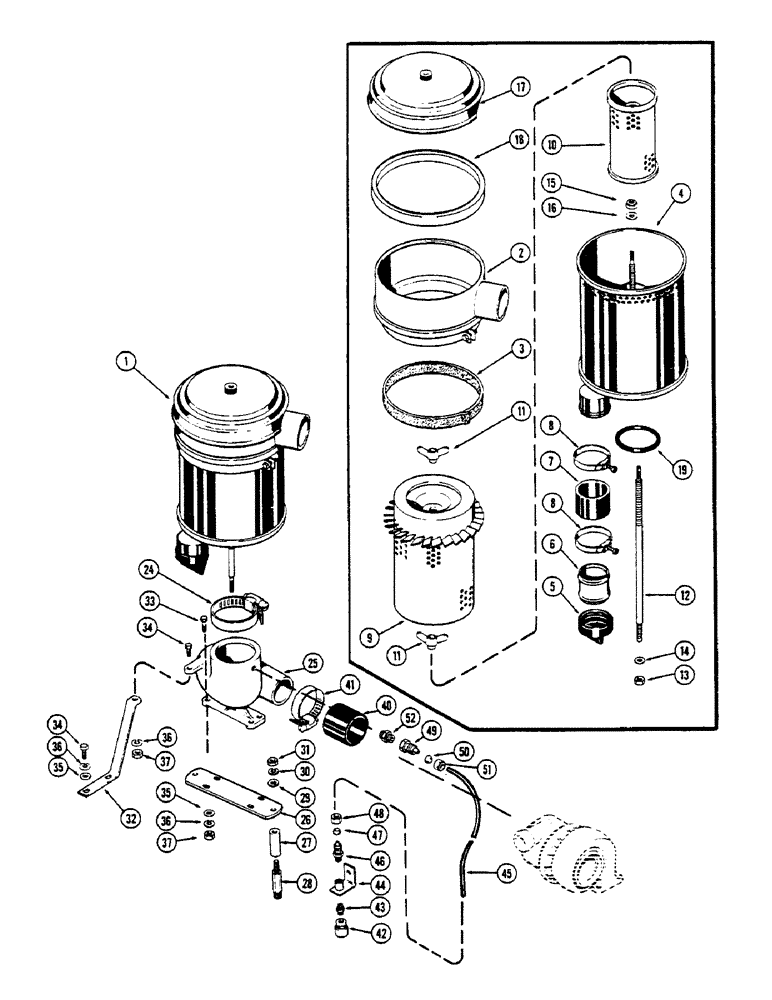

Схема запчастей Case IH 1175 - (010) - (451B) TURBO DIESEL ENGINE, AIR CLEANER, FIRST USED TRACTOR SERIAL NUMBER 8736747 (02) - ENGINE
1
11
34
43
14
46
37
35
10
4
51
26
18
52
32
41
19
2
17
35
45
36
8
47
31
8
3
36
44
29
40
48
9
49
12
16
27
37
11
50
42
34
36
25
6
13
7
30
34
33
28
5
15

Артикул

Название

Примечание

Количество

1

A66744

CLEANER ASSY. - air, Includes: Ref. 2 - 19

1шт.

2

A62762

ADAPTER ASSY. - air cleaner, Includes: Ref. 3

1шт.

3

A44132

GASKET

- adapter

1шт.

4

NSS

NOT SOLD SEPARAT

BODY

1шт.

5

L30414

VALVE

VACUATOR - valve

1шт.

A43706

KIT - adapter, vacuator valve, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

ADAPTER

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE

1шт.

8

NSS

NOT SOLD SEPARAT

CLAMP

2шт.

9

A43264

ELEMENT

- outer, primary

1шт.

10

A43265

ELEMENT

- inner, safety

1шт.

11

D37977

CAP

NUT - wing, w/gasket

2шт.

12

A43266

POST

- mounting

1шт.

13

131-52

NUT,3/8"-16, GC

NUT - 3/8" N.C. hex. lock

1шт.

14

A43267

SEAL

- 5/16 x 7/8 x 3/32" (rubber and steel)

1шт.

15

131-81

LOCK NUT,7/16"-20, GB

NUT - 7/16" N.F. hex. lock

1шт.

16

195-105

WASHER,7/16"

- 1/2 x 1-1/4 x 5/64"

1шт.

17

A44819

COVER

- air cleaner

1шт.

18

A43705

GASKET

-, Serial Range: cover-element

1шт.

19

A43268

SEALING RING

SEAL - body

1шт.

24

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose, 4-1/16 to 5"

1шт.

25

A61626

ELBOW - support, air cleaner

1шт.

26

A64573

BRACKET - mounting, air cleaner

1шт.

27

A64576

SPACER - mounting bracket, 3-3/4" high

2шт.

28

A64577

JACK SCREW,3/8" - 18 x 5.32"

JACKSCREW - mounting bracket

2шт.

29

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 5/64"

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

32

A61627

BRACKET - air cleaner support

1шт.

33

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

34

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex

4шт.

35

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

4шт.

36

92-6

LOCK WASHER,3/8"

7шт.

37

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

5шт.

40

A61631

HOSE

- air intake

1шт.

41

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 to 3-1/4"

2шт.

42

A62574

INDICATOR

- air restriction

1шт.

43

217-194

FITTING,1/8" - 27 Male NPTF x 1/8" - 27 Male NPTF

NIPPLE - 1/8 x 1/8" P.T.

1шт.

44

A61940

BRACKET

- indicator

1шт.

45

A61938

TUBE - indicator, air restriction

1шт.

46

222-5102

COUPLING, BREAK AWAY,7/16"-24 x 1/8" NPT

CONNECTOR - tube, 1/4" tube x 1/8" P.T., Includes: Ref. 47 and 48

1шт.

47

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

48

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

49

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

CONNECTOR - tube, Includes: Ref. 50 and 51

1шт.

50

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

51

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

52

D36264

FITTING

FILTER - air restriction

1шт.

Выбрано товаров: 47
