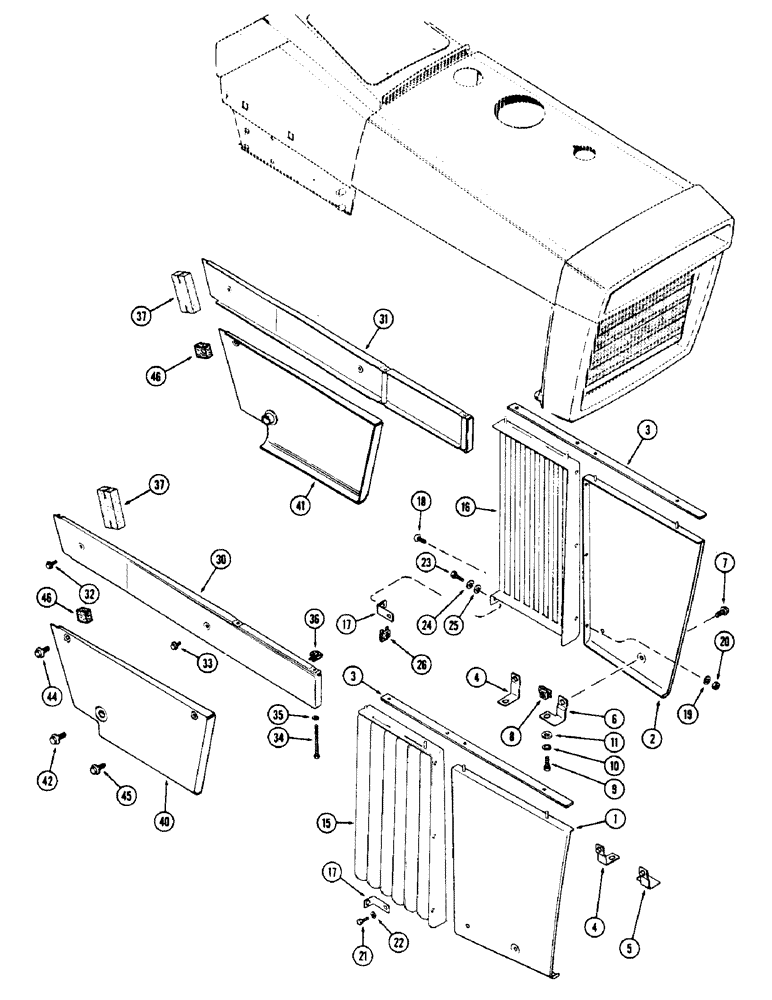

Запчасти Case IH 1175 (199A) - FRONT SIDE PANELS, USED PRIOR TO TRACTOR SERIAL NUMBER 8727601 (09) - CHASSIS

1

A59128

PANEL

ASSY. - front side, R.H.

1шт.

2

A59365

PANEL

ASSY. - front side, L.H.

1шт.

3

A59239

SPACER

- hood and side sheets, to be attached with adhesive 345-22

2шт.

4

A59364

BRACKET

- R.H. and L.H. side panel mounting

2шт.

5

A59278

BRACKET

- R.H. side panel mounting

1шт.

6

A59279

BRACKET - L.H. side panel mounting

1шт.

7

121-114

BOLT,Hex Flg, 5/16"-18 x 1/2", Serr

- 5/16 x 1/2" hex. whiz lock

4шт.

8

131-616

NUT,Ret, J, 5/16"-18

- 5/16" Tinnerman

4шт.

9

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex.

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

195-129

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

4шт.

15

A64922

GUARD

LOUVER ASSY. - R.H.

1шт.

16

A64923

GUARD

LOUVER ASSY. - L.H.

1шт.

17

A61042

BRACKET - louver mounting

2шт.

18

175-466

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" Phillips truss hd.

6шт.

19

92-5

LOCK WASHER,5/16"

6шт.

20

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

6шт.

21

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex.

2шт.

22

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

113-151

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

- 5/16 x 3/4" N.C. hex.

2шт.

24

195-129

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

25

192-45

LOCK WASHER

- lock, 5/16"

2шт.

26

131-616

NUT,Ret, J, 5/16"-18

- 5/16" Tinnerman

2шт.

30

A60968

PANEL

ASSY. - decal, R.H. (Order A65206)

1шт.

31

A60969

DISK HARROW

PANEL ASSY. - decal, L.H. (Order A65213)

1шт.

32

121-114

BOLT,Hex Flg, 5/16"-18 x 1/2", Serr

- 5/16 x 1/2" N.C. hex. whiz lock

2шт.

33

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

34

113-31

BOLT,Hex, 1/4" - 20 x 4-3/4", Gr 5

- 1/4 x 4-3/4" N.C. hex.

6шт.

35

192-44

LOCK WASHER

- lock, 1/4"

6шт.

36

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

RETAINER - Tinnerman, "J" type

6шт.

37

A65939

SEAL

SEAL - decal panel, rear, to be attached with adhesive 345-22

2шт.

40

A60972

PANEL

ASSY. - rear side, R.H.

1шт.

41

A60973

PANEL

ASSY. - rear side, L.H. (Order A65231)

1шт.

42

121-117

BOLT - 5/16 x 1-1/4" N.C. hex. whiz lock

2шт.

44

121-114

BOLT,Hex Flg, 5/16"-18 x 1/2", Serr

- 5/16 x 1/2" N.C. hex. whiz lock

2шт.

45

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

46

A61878

FOAM

SEAL - rear side panels, to be attached with adhesive 345-22

2шт.
