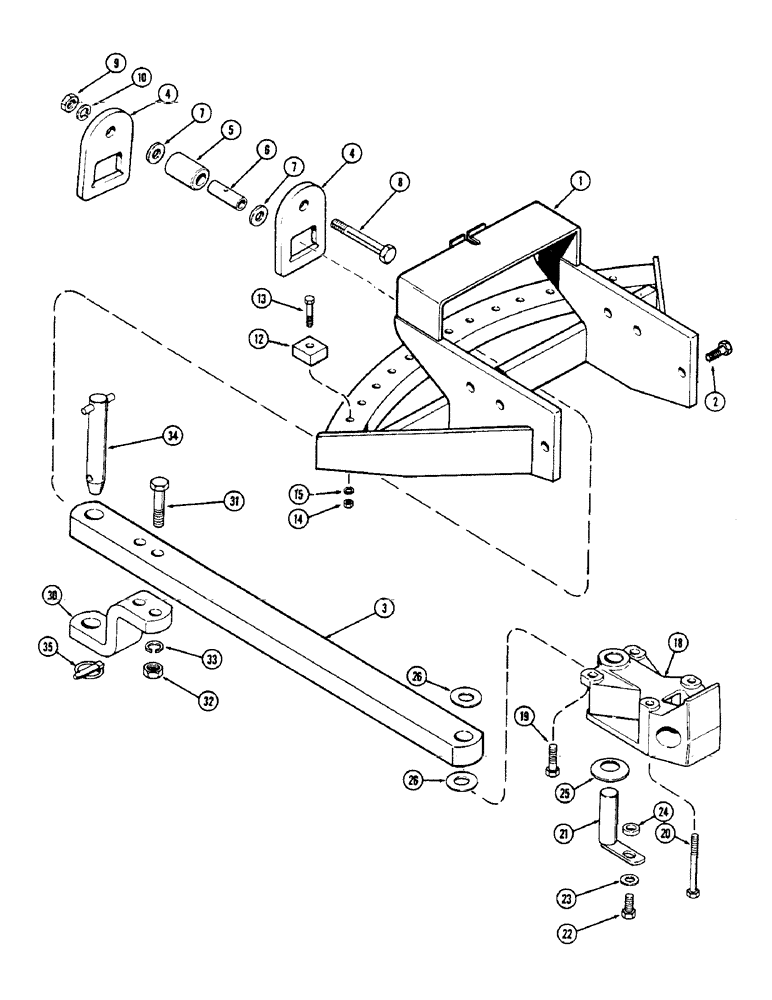

Запчасти Case IH 1175 (194) - DRAWBAR, WITHOUT HITCH (09) - CHASSIS

1

A61552

SUPPORT ASSY. - rear, drawbar

1шт.

2

113-747

X

BOLT - 3/4 x 2-1/4" N.C. hex.

6шт.

3

A61534

DRAWBAR

- (46-1/8" long x 2" thick) (Order A65755, A65756 & (2) 195-2142)

1шт.

3

A65755

DRAWBAR

- (46-1/8" long x 1-3/4" thick)

1шт.

4

A64425

BRACKET

- hanger (1-1/2" high opening use w/A61534)

2шт.

4

A65756

BRACKET

- hanger (2-1/4" high opening use w/A65755)

1шт.

5

A61545

ROLLER

- drawbar

1шт.

6

A61544

SLEEVE

- roller

1шт.

7

A64427

SPACER

- roller (13/16 x 1-3/4 x 3/16")

2шт.

8

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4 x 5-1/2" N.C. hex.

1шт.

9

25-1012

NUT,3/4"-10, G5

1шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

12

A64428

BLOCK

- roller, drawbar

2шт.

13

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 3/8 x 3-3/4" N.C. hex.

2шт.

14

25-1010

NUT,5/8"-11, G5

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

A61416

BRACKET

- front support, drawbar

1шт.

19

113-747

X

BOLT - 3/4 x 2-1/4" N.C. hex.

2шт.

20

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8 x 5-1/2" N.C. hex.

2шт.

21

A65766

PIN

- pivot, drawbar front (Replaces A61548)

1шт.

22

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

23

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

1шт.

24

A61551

SPACER - pivot (33/64 x 3/4 x 9/32")

1шт.

25

A61541

WASHER - spring

1шт.

26

195-2142

WASHER,1 17/32" x 2 1/16" x .109"

- 1-17/32 x 2-1/16 x 1/8" (use w/A65755 drawbar)

2шт.

A61836

KIT

ATTACHMENT - drawbar yoke (Mach. Item), Includes: Ref. 30 - 35

1шт.

30

A61557

DRAWBAR CLAMP

STRAP - yoke, drawbar

1шт.

31

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

32

25-1012

NUT,3/4"-10, G5

2шт.

33

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

34

A65760

PIN

ASSY. - yoke (Replaces A61558), Includes: Ref. 35

1шт.

35

A61560

LOCK PIN

PIN - klik

1шт.
