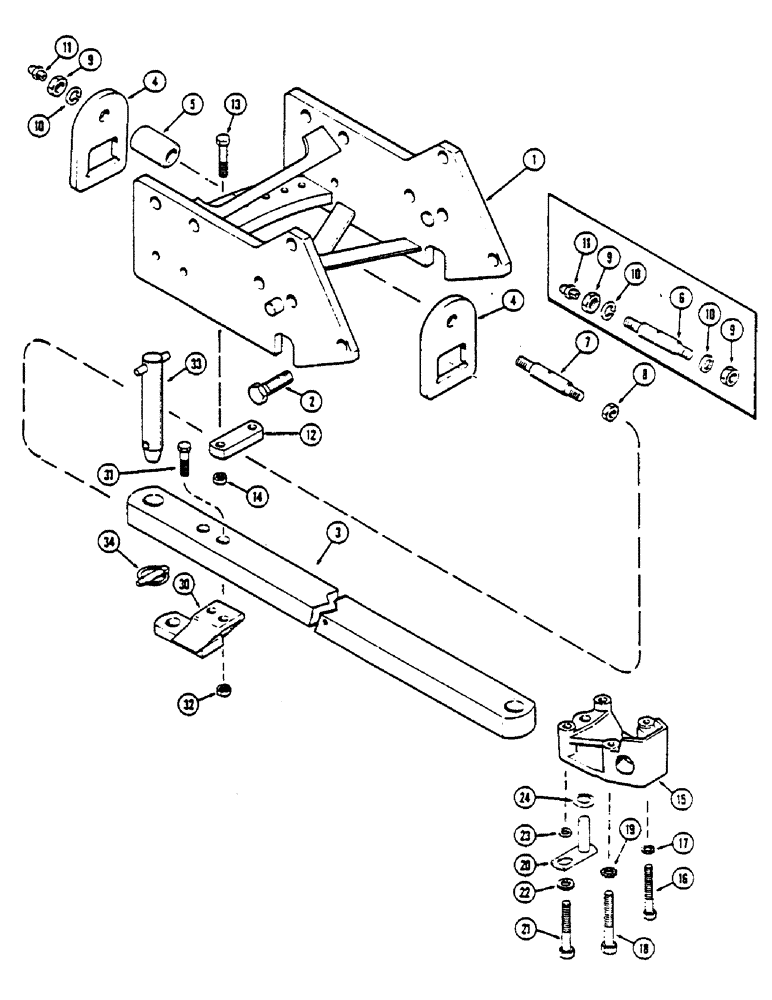

Запчасти Case IH 1175 (192) - DRAWBAR, WITH HITCH (09) - CHASSIS

1

A61885

SUPPORT

ASSY. - rear, drawbar

1шт.

2

113-747

X

BOLT - 3/4 x 2-1/4" N.C. hex

8шт.

3

A65750

DRAWBAR, SWINGING

DRAWBAR - (46" long) (Replaces A64465)

1шт.

4

A60417

BRACKET

- hanger, drawbar (Replaces A60440)

2шт.

5

A59151

ROLLER

- drawbar

1шт.

6

A64464

SHAFT

- roller, drawbar (6-7/32" long) (Order Ref. 7 and 8)

1шт.

7

A65702

SHAFT

- roller, drawbar (5-3/8" long)

1шт.

8

131-561

NUT

- lock, 3/4" N.C. thin (use w/A65702)

1шт.

9

25-1012

NUT,3/4"-10, G5

Use only 1 w/A65702 3/4"-10, G5

2шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (Use only 1 w/A65702) 3/4"

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

12

A58347

STRAP

- drawbar clamp

1шт.

13

13-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

(Use w/strap) Hex, 1/2"-13 x 5", G5

2шт.

13

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2 x 2" N.F. hex. (use w/o strap)

2шт.

14

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Use w/13-880 bolt)

2шт.

14

25-278

NUT,1/2"-20, G5, High

- high, 1/2" N.F. hex. (Use w/14-832 bolt)

1шт.

15

A59603

BRACKET

- front support, drawbar pivot

1шт.

16

113-672

BOLT

- 5/8 x 5-1/4" N.C. hex.

2шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

13-1292

BOLT,Hex, 3/4" - 10 x 5-3/4", Gr 5

1шт.

19

A34651

LOCK WASHER

- lock (3/4" ext. Shakeproof heavy)

1шт.

20

A65762

PIN

- pivot, drawbar (Replaces A59605)

1шт.

21

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- 3/4 x 6" N.C. hex.

1шт.

22

95-12

WASHER,3/4"

- 13/16 x 2 x 5/32"

1шт.

23

A57929

SPACER

- pivot (25/32 x 1-1/8 x 1/4")

1шт.

24

A35270

WASHER

- spring

1шт.

A64384

ATTACHMENT

- drawbar yoke (Mach. Item), Includes: Ref. 30 - 34

1шт.

30

A64201

YOKE

ASSY. - drawbar (optional)

1шт.

31

113-758

X

BOLT - 3/4 x 3-3/4" N.C. hex.

2шт.

32

129-572

NUT,3/4"-10, G8

2шт.

33

A65764

PIN

ASSY. - yoke (Replaces A57998)

1шт.

34

A30338

PIN

- klik

1шт.
