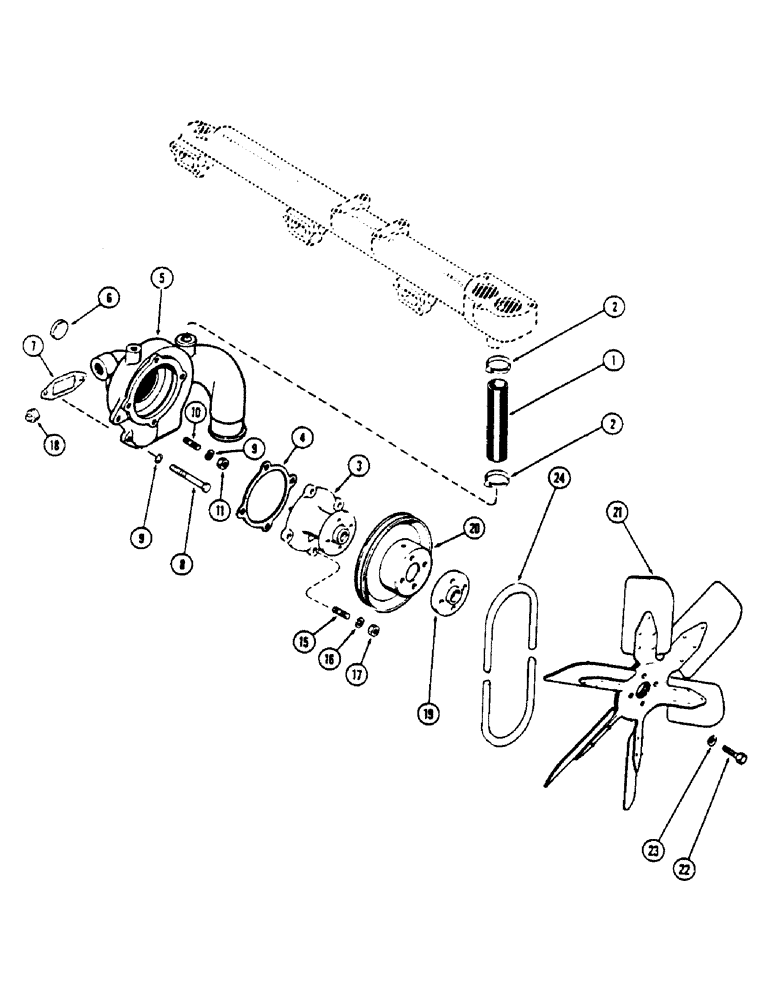

Запчасти Case IH 1175 (009A) - (451B) TURBO DIESEL ENGINE, WATER PUMP (02) - ENGINE

1

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water by-pass (1-1/4" I.D. x 5-5/16")

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

3

A62976

PUMP

ASSY. - water

1шт.

4

A58646

GASKET

-, Serial Range: pump-body

1шт.

5

A138498

HOUSING

BODY ASSY. - water pump (Replaces A59220), Includes: Ref. 6) (for 1/2" heater connection See Figure 282)

1шт.

5

A59220

BODY

ASSY. - water pump (Order A138498) (for 3/4" bushing See Figure 282), Includes: Ref. 6

1шт.

6

A58568

PLUG,Cup, 1 3/8", Stainless

- cup, 1-3/8" dia.

1шт.

7

A58649

GASKET

-, Serial Range: body-block

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

G11204

STUD

- body to block (3/8" N.C. x 1-7/16")

2шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

15

A62234

STUD

- pump to body (3/8" N.C. x 1-5/16")

4шт.

16

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

17

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex

4шт.

18

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - pipe, 3/4" sp. hd.

1шт.

19

A62465

BUSHING

SPACER - fan (1-1/4" thick)

1шт.

20

A58837

PULLEY

- fan and water pump

1шт.

21

A61520

FAN

- engine

1шт.

22

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

A65143

V-BELT,0.69" W x 58.25" L

Drive, Fan and Pump, Replaces A59763 0.69" W x 58.25" L

1шт.
