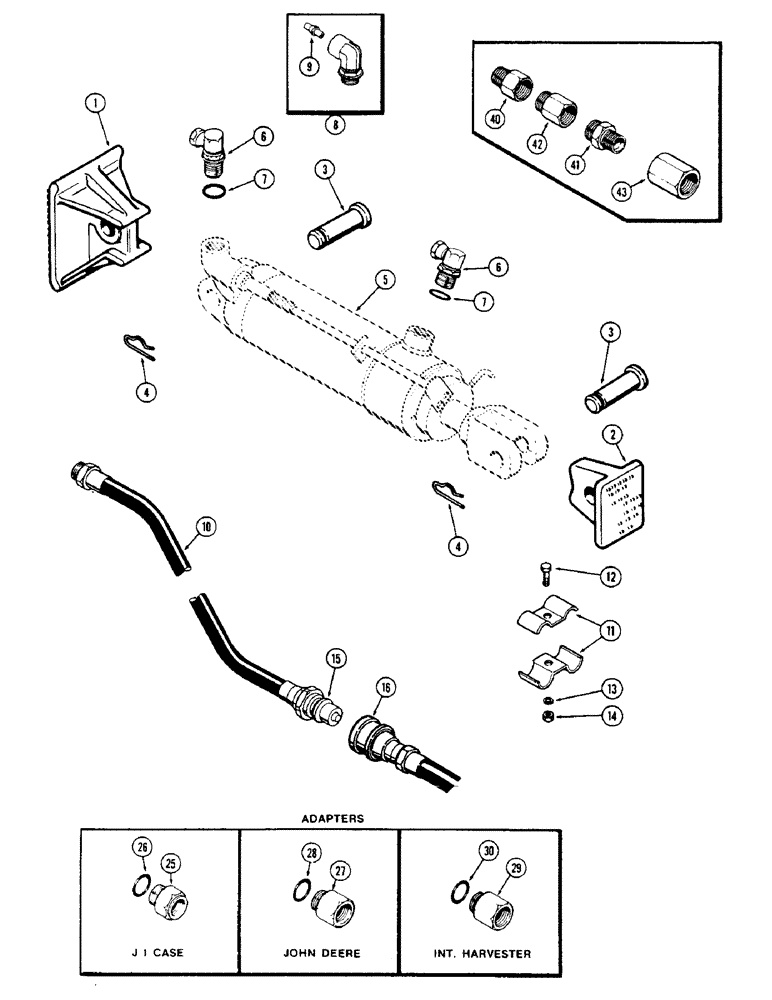

Запчасти Case IH 1175 (186) - REMOTE HYDRAULIC HOSES AND COUPLINGS (08) - HYDRAULICS

1

A57188

BASE

Cylinder, remote hydraulic

1шт.

2

A9163

SPARE PART Cylinder, remote hydraulic

1шт.

3

A27347

PIN

Cylinder retaining

2шт.

4

A29054

HAIR PIN COTTER

Cotter

2шт.

5

REF

INSTRUCTION

CYLINDER ASSY, remote hyd. (See Figures 188 - 190)

2шт.

6

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ADAPTER - hose to cyl. 7/8"-90 Degrees (See Ref. 8), Incl. Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Adapter, 3/4 x 15/16 x 3/32"

1шт.

8

A65953

HYDRAULIC VALVE

KIT - flow regulator (w/7/8"-14 thrd.), Incl. Ref. 9

1шт.

9

A57369

SPOOL

POPPET - flow regulator

1шт.

10

A8204

SPARE PART Remote hydraulic (60" long)

1шт.

10

A8205

SPARE PART Remote hydraulic (96" long)

1шт.

10

A20816

HOSE

Remote hydraulic (106" long)

1шт.

10

A20817

HOSE

Remote hydraulic (118" long)

1шт.

11

A27440

CLAMP

Hose

2шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

Hex

1шт.

15

REF

INSTRUCTION

COUPLING ASSY, male, break-away (See Figure 187A)

1шт.

16

REF

INSTRUCTION

COUPLING ASSY, female break-away (See Figure 187A)

1шт.

25

A135687

ADAPTER

ASSY, hyd. coupling (7/8"-14 male to 7/8"-18 female) (To convert J.I. Case Implement Hoses), Incl. Ref. 26

1шт.

ADAPTER TO BE USED WITH A66816 MALE HALF BREAK-AWAY COUPLING ASSY. (SEE FIGURE 187A)

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8 x 3/4 x 3/32"

1шт.

27

A135688

ADAPTER

ASSY, hyd. coupling (7/8"-14 male to 3/4"-16 female) (to convert John Deere Implement Hoses), Incl. Ref. 28

1шт.

ADAPTER TO BE USED WITH A66816 MALE HALF BREAK-AWAY COUPLING ASSY. (SEE FIGURE 187A)

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8 x 3/4 x 3/32"

1шт.

29

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

ASSY, hyd. coupling (7/8"-14 male to 1/2" female) (to convert Int. Harvester Implement Hoses), Incl. Ref. 30

1шт.

ADAPTER TO BE USED WITH A66816 MALE HALF BREAK-AWAY COUPLING ASSY. (SEE FIGURE 187A)

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8 x 3/4 x 3/32"

1шт.

40

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

Hose, 7/8"-18 female to 1/2" P.T. male

1шт.

41

A27359

ADAPTER

Hose, 7/8"-18 male to 1/2" P.T. male

1шт.

42

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

1шт.

43

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

Hose

1шт.
