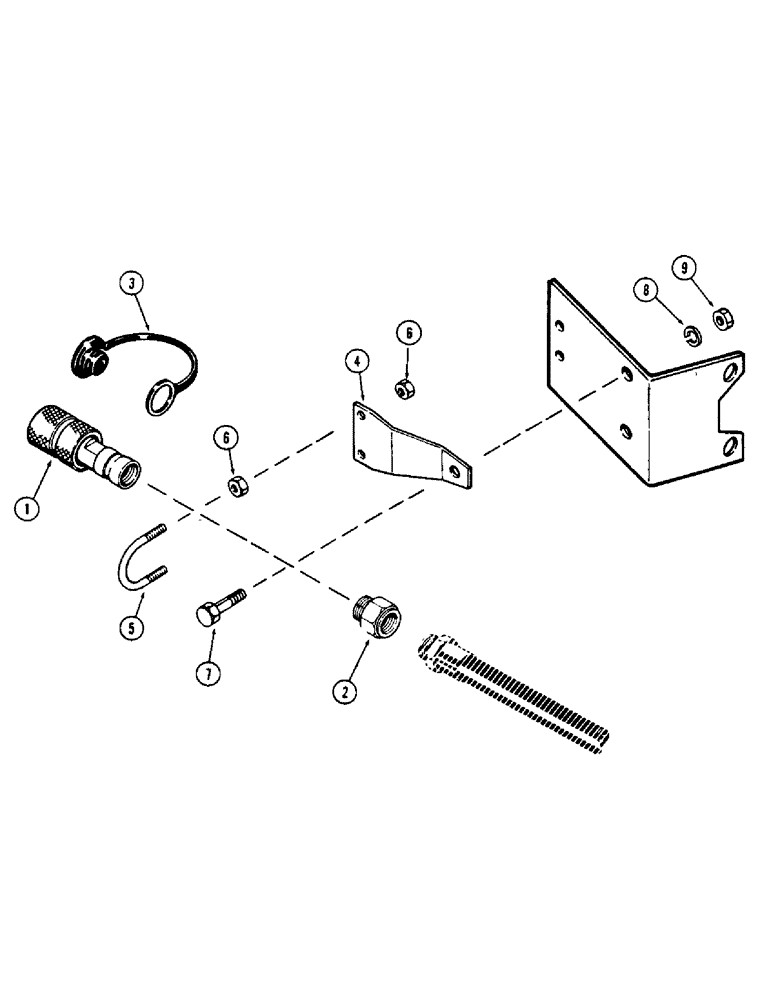

Запчасти Case IH 1175 (185A) - A135675 COUPLING ATTACHMENT, TO CONVERT STANDARD COUPLINGS TO PRESSURE COUPLINGS (08) - HYDRAULICS

A67200

KIT

- coupling, Includes: Ref. 1 - 6

4шт.

1

A141156

COUPLING, BREAK AWAY

COUPLING ASSY. - female (See Figure 187A)

1шт.

2

A135687

ADAPTER

ADAPTOR - hydraulic coupling

1шт.

3

A135004

PLUG

- dust, coupling

1шт.

4

A135674

BRACKET

- remote coupling mounting

1шт.

5

A66788

CLAMP

- remote coupling

1шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.
