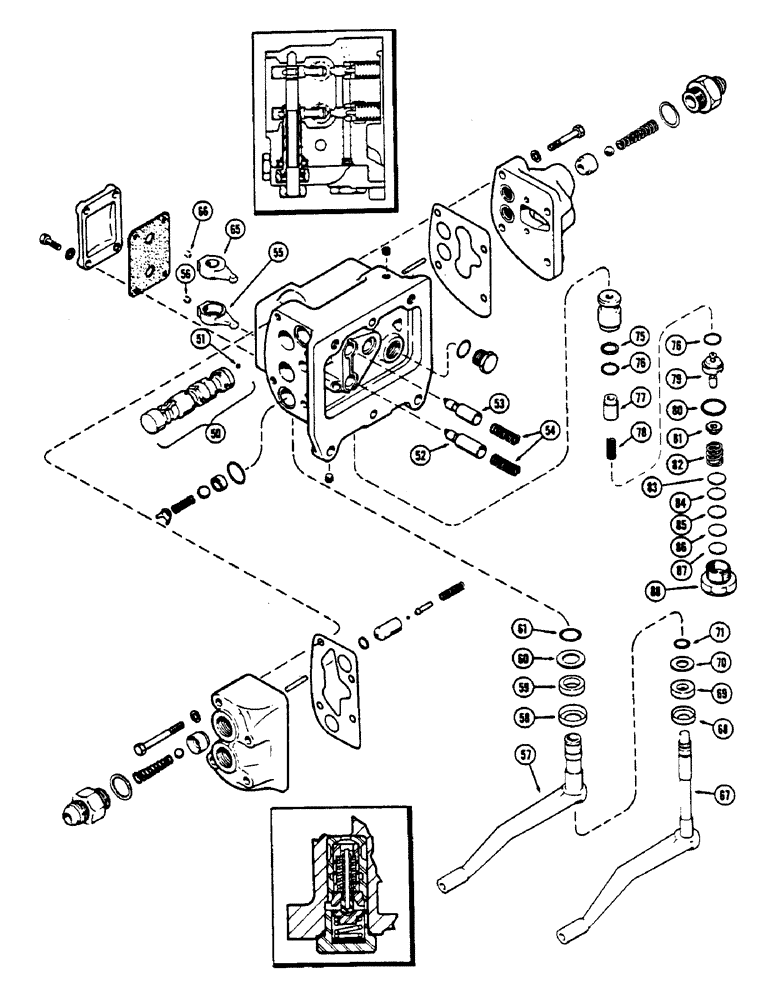

Запчасти Case IH 1175 (171A) - A65326 AUXILIARY VALVE, FIRST USED TRACTOR SERIAL NUMBER 8709725 (08) - HYDRAULICS

A65326

VALVE

ASSY. - auxiliary, Includes: Ref. 50 - 88 and Ref. 1 - 49 on Fig. 170

1шт.

50

A57538

SPOOL

ASSY. - valve

2шт.

51

211-5

BALL,3/16" Dia

- steel, 3/16" Dia

1шт.

52

A57554

PLUNGER

- inner, valve spool

1шт.

53

A57555

PLUNGER

- outer, valve spool (drilled)

1шт.

54

A30883

SPRING

- plunger

2шт.

55

A57546

ARM

ASSY. - shift, lower spool

1шт.

56

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4 x 1/4" N.C. hex. socket cup pt.

1шт.

57

A60391

SHAFT

- shift lever, lower spool

1шт.

58

A30880

RETAINER

- felt washer, outer shaft

1шт.

Included w/ SEAL KIT, A43086

1шт.

59

A30879

WASHER

- felt, outer shaft (3/4 x 1-1/16 x 1/4")

1шт.

Included w/ SEAL KIT, A43086

1шт.

60

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, outer shaft (49/64 x 1-15/64 x 20 ga.)

1шт.

Included w/ SEAL KIT, A43086

1шт.

61

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - outer shaft (3/4 x 15/16 x 3/32")

1шт.

Included w/ SEAL KIT, A43086

1шт.

65

A57547

ARM

ASSY. - shift, upper spool

1шт.

66

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4 x 1/4" N.C. hex. socket cup pt.

1шт.

67

A60393

SHAFT

- shift lever, upper spool

1шт.

68

A30875

RETAINER

- felt washer, inner shaft

1шт.

Included w/ SEAL KIT, A43086

1шт.

69

A30853

WASHER

- felt, inner shaft (1/2 x 15/16 x 1/4")

1шт.

Included w/ SEAL KIT, A43086

1шт.

70

A27409

WASHER

- seal, inner shaft (33/64 x 63/64" x 20 ga.)

1шт.

Included w/ SEAL KIT, A43086

1шт.

71

A64836

O-RING,0.487" ID x 0.693" OD

"O" RING - inner shaft (1/2 x 11/16 x 3/32")

1шт.

Included w/ SEAL KIT, A43086

1шт.

A42888

KIT

- seal, relief valve (not part of valve assy.)

1шт.

74

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

Included w/ SEAL KIT, A43086

1шт.

75

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot, relief valve

1шт.

Included w/ SEAL KIT, A43086

1шт.

76

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - pilot relief valve (5/8 x 3/4 x 1/16")

2шт.

Included w/ SEAL KIT, A43086

1шт.

77

A57553

PISTON

- pilot relief valve

1шт.

78

A34382

SPRING

- pilot relief valve

1шт.

79

A57556

PISTON

ASSY. - pilot relief valve

1шт.

80

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

pilot relief valve

1шт.

81

A57558

RETAINER

- valve spring

1шт.

82

A61466

SPRING

- VALVE

1шт.

83

A61467

SHIM,.005" Thk

Spring, Refer to tag attached to valve for shim data .005" Thk

1шт.

84

A34849

SHIM,.0105" Thk

Spring, Refer to tag attached to valve for shim data .0105" Thk

1шт.

85

A34390

SHIM,.0329" Thk

Spring, Refer to tag attached to valve for shim data .0329" Thk

1шт.

85

A34391

SHIM,.0149" Thk

Spring, Refer to tag attached to valve for shim data .0149" Thk

1шт.

86

A34817

SHIM,.0149" Thk

Spring, Refer to tag attached to valve for shim data .0149" Thk

1шт.

87

A34694

SHIM,.0201" Thk

Spring, Refer to tag attached to valve for shim data .0201" Thk

1шт.

88

A34392

PLUG

- pilot relief valve

1шт.

A43086

SEAL

KIT - seal, complete overhaul, Includes: Ref. 58 - 61 and 68 - 76

1шт.
