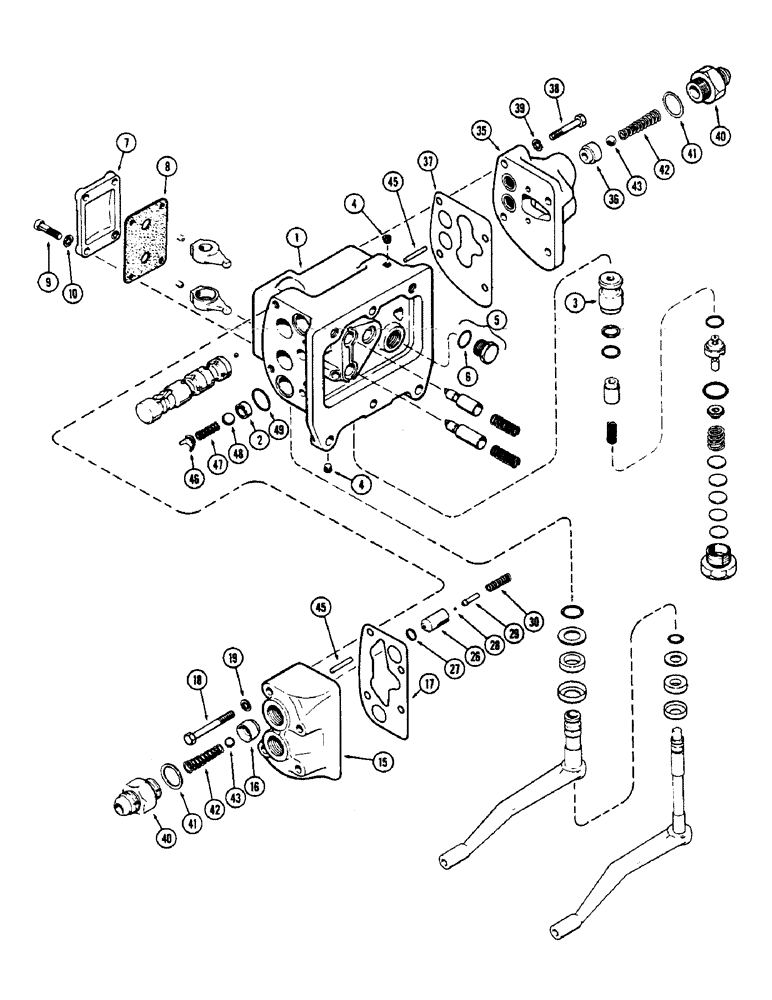

Запчасти Case IH 1175 (170) - A65326 AUXILIARY VALVE, FIRST USED TRACTOR SERIAL NUMBER 8709725 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A65326
VALVE
ASSY. - auxiliary (w/str. outlet fitting on R.H. side), Includes: Ref. 1 - 49 and 50 - 88 on Fig. 171A
1шт.
1
A57534
BODY
ASSY. - valve, Includes: Ref. 2 - 4
1шт.
2
A57537
SEAT
- ball, check valve
4шт.
3
A57536
SLEEVE
- pilot, relief valve
1шт.
4
221-849
PLUG,Hex Soc, 1/8"-27
- pipe, 1/8" hex. socket
4шт.
5
86512512
PLUG,7/8" - 14 ORB
- Body port, Incl. Ref. 6 Hex Hd, 7/8"-14 ORB
1шт.
6
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- 5/8 x 3/4 x 3/32"
1шт.
7
A57552
CAP
- valve body
1шт.
8
A76374
GASKET
- cap
1шт.
9
13-414
BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd
4шт.
10
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
15
A57565
VALVE
HEAD ASSY. - R.H. valve, Includes: Ref. 16
1шт.
16
NSS
NOT SOLD SEPARAT
SEAT - valve head
2шт.
17
A57561
GASKET
- R.H. head
1шт.
18
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
2шт.
18
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- 3/8 x 2-1/2" N.C. hex.
2шт.
19
92-6
LOCK WASHER,3/8"
4шт.
26
A62273
SEAT
- thermal valve
2шт.
27
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
- thermal valve
2шт.
28
211-3
BALL,1/8" Dia
- thermal valve, . 1/8" Dia
2шт.
29
A62272
GUIDE
- ball, thermal valve
2шт.
30
A57396
SPRING
- valve
2шт.
35
A57564
VALVE
HEAD ASSY. - L.H. valve, Includes: Ref. 36
1шт.
36
NSS
NOT SOLD SEPARAT
SEAT - valve head
2шт.
37
A57560
GASKET
- L.H. head
1шт.
38
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
- 3/8 x 2-3/4" N.C. hex.
4шт.
39
92-6
LOCK WASHER,3/8"
4шт.
40
A64708
FITTING
- outlet, remote hose (See Figure 185C)
4шт.
41
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- 3/4 x 59/64 x 1/8"
4шт.
42
A30877
SPRING
- check valve
4шт.
43
211-13
BALL,1/2" Dia
- check valve 1/2" Dia
4шт.
45
A57559
SPOOL
- auxiliary
4шт.
46
A27364
GUIDE
- ball, check valve
4шт.
47
A27452
SPRING
- check valve
4шт.
48
211-15
BALL,5/8" Dia
- check valve, . 5/8" Dia
4шт.
49
A58602
O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro
- 15/16 x 1-1/8 x 3/32"
4шт.
Выбрано товаров: 36
