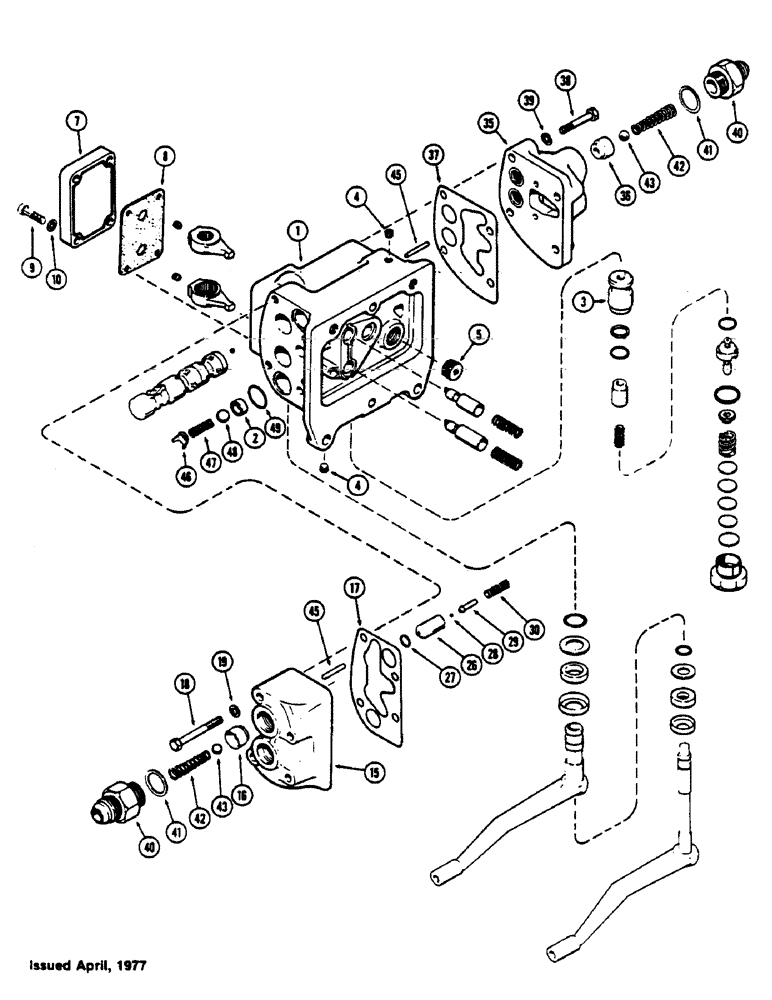

Запчасти Case IH 1175 (168) - A141385 AUXILIARY VALVE, WITH STRAIGHT OUTLET FITTINGS (08) - HYDRAULICS

A141385

VALVE

ASSY. - auxiliary (w/str. outlet fittings on R.H. side) (Replaces A139214 and A66503), Includes: Ref. 1 - 49 and Ref. 50 - 88 on Fig. 169A

1шт.

1

A141405

BODY

ASSY. - valve (Replaces A66628), Includes: Ref. 2 - 5

4шт.

2

A139799

SEAT

- ball, check valve

4шт.

3

A57536

SLEEVE

- pilot, relief valve

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- 1/8" hex. sckt. hd. pipe

4шт.

5

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" hex. sckt. hd. pipe

1шт.

7

A66435

CAP

- valve body

1шт.

8

A76374

GASKET

- cap

1шт.

9

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

A57565

VALVE

HEAD ASSY. - R.H. valve, Includes: Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

17

A143304

GASKET

- R.H. head (Replaces A57561)

1шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

18

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

26

A137335

SEAT

- thermal valve

2шт.

27

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- thermal valve, 3/8 x 9/16 x 3/32"

2шт.

28

211-3

BALL,1/8" Dia

- thermal valve, 1/8" Dia

2шт.

29

A137594

GUIDE

- ball, thermal valve

2шт.

30

A57396

SPRING

- valve

2шт.

35

A57564

VALVE

HEAD ASSY. - L.H. valve, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

37

A143303

GASKET

- L.H. head, (Replaces A57560)

1шт.

38

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex

4шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

A64708

FITTING

- remote hose (See Figure 184)

4шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8"

4шт.

42

A66473

SPRING

- check valve

4шт.

43

211-13

BALL,1/2" Dia

- check valve 1/2" Dia

4шт.

45

A57559

SPOOL

- auxiliary

4шт.

46

A27364

GUIDE

- ball, check valve

4шт.

47

A27452

SPRING

- check valve

4шт.

48

211-15

BALL,5/8" Dia

- check valve, . 5/8" Dia

4шт.

49

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32"

4шт.
