Запчасти Case IH 1175 (007A) - (451B) TURBO DIESEL ENGINE, OIL COOLER (02) - ENGINE

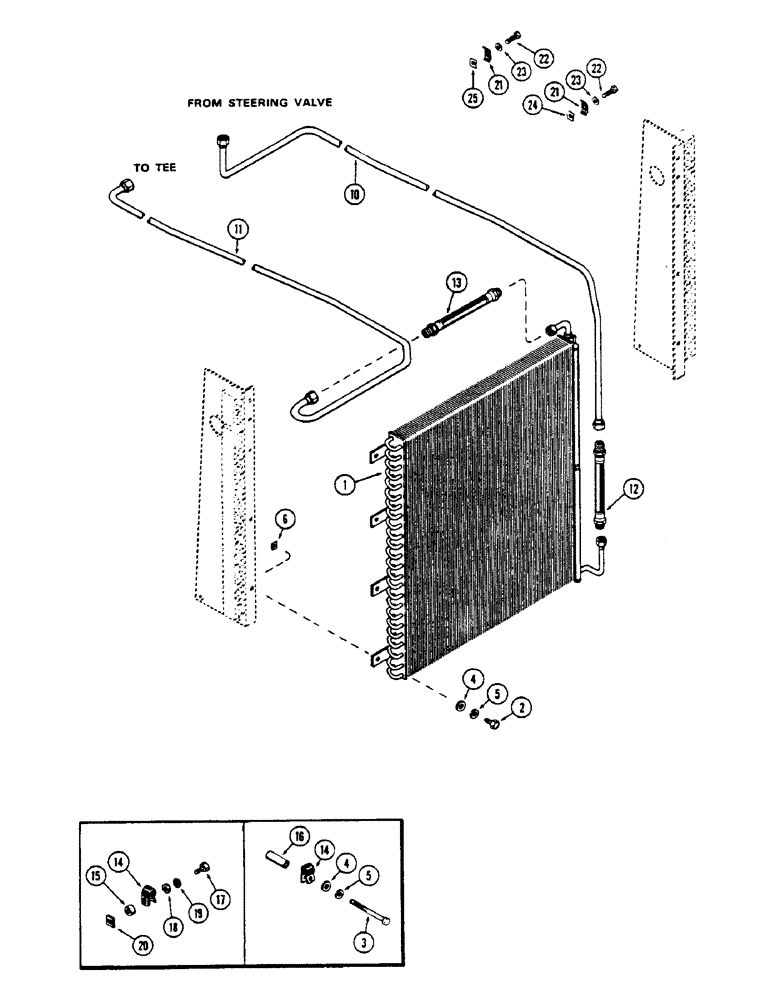

Схема запчастей Case IH 1175 - (007A) - (451B) TURBO DIESEL ENGINE, OIL COOLER (02) - ENGINE
12
19
21
13
4
2
23
5
25
22
14
24
14
10
21
6
16
1
23
18
3
17
15
4
11
20
5
22

Артикул

Название

Примечание

Количество

1

A61454

COOLER

- hydraulic oil

1шт.

2

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

7шт.

3

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1шт.

4

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

8шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

6

131-611

NUT,Ret, 1/4"-20

- 1/4" "U" type

8шт.

10

A64521

TUBE

- steering, Serial Range: valve-cooler

1шт.

11

A64523

TUBE

- cooler to junction tee

1шт.

12

A61458

HOSE,0.50" ID x 6.60", SAE 30R2 Type 3 PER SAE J30

RADIATOR HOSE, , Tube to Cooler, Upper 0.50" ID x 6.60", SAE 30R2 Type 3 PER SAE J30

1шт.

13

A60399

HOSE

- lower, tube to cooler (8.5")

1шт.

14

49838

CLAMP

- junction tube

1шт.

15

A61457

SPACER - clamp (9/32 x 3/4 x 29/64")

1шт.

16

A61813

SPACER - clamp (23/64 x 35/64 x 2")

1шт.

17

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

18

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

131-611

NUT,Ret, 1/4"-20

- 1/4" "U" type

1шт.

21

A60404

CLIP

- tube mounting

2шт.

22

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

23

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

2шт.

24

131-611

NUT,Ret, 1/4"-20

- 1/4" "U" type

1шт.

25

25-104

NUT,1/4"-20, G5

1шт.

Выбрано товаров: 22
