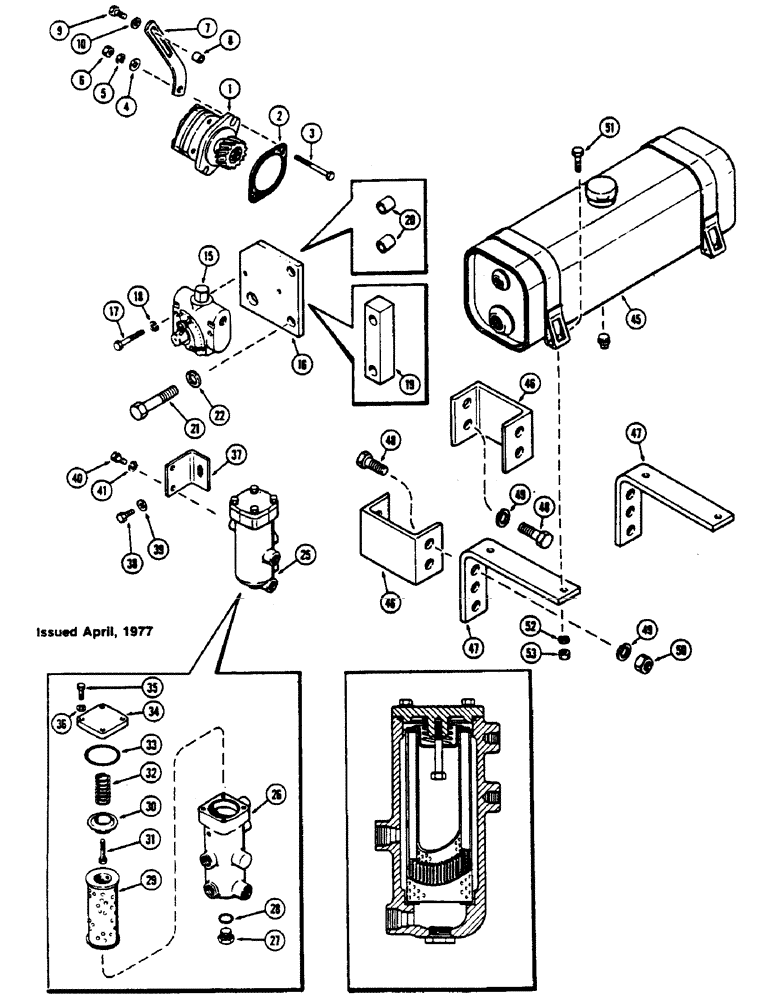

Запчасти Case IH 1175 (167C) - AUXILIARY HYDRAULIC PUMP KIT (08) - HYDRAULICS

A67233

KIT - auxiliary hydraulic (Cont'd from Figure 167A), Includes Ref. 1 - 53

1шт.

A67234

KIT - auxiliary hydraulic (Cont'd from Figure 167A), Includes Ref. 1 - 53

1шт.

1

REF

INSTRUCTION

PUMP - auxiliary (See Figure 167A)

1шт.

2

A58617

GASKET

Pump to timing gear cover

1шт.

3

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

4

195-525

WASHER,3/8", SAE

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

Hex

2шт.

7

A77081

STRAP

Alternator

1шт.

8

A31174

SPARE PART SPACER - 3/8 x 5/8 x 9/16"

1шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

10

195-103

WASHER,5/16"

3/8 x 7/8 x 5/64" (Not part of kit)

1шт.

15

A139696

VALVE

Variable flow

1шт.

16

A141150

SPARE PART Valve mounting

1шт.

17

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

18

92-4

LOCK WASHER,1/4"

2шт.

19

A141144

SPARE PART Valve plate (Used w/o side rails or cast iron weight adapter)

1шт.

20

T54966

SPARE PART Valve plate, 49/64 x 1-3/64 x 13/16" (Used w/side rails)

2шт.

21

113-726

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

(Used w/T54966)

2шт.

21

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

(Used w/A141144)

2шт.

21

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

(Used w/o spacers)

2шт.

22

92-12

LOCK WASHER,3/4"

2шт.

25

NSS

NOT SOLD SEPARAT

FILTER ASSY. - hyd. oil (Order components), Includes: Ref. 26 - 36

1шт.

26

A38416

HOUSING

Filter element

1шт.

27

86512512

PLUG,7/8" - 14 ORB

Assy, Housing, Incl. Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

A51463

FILTER

ELEMENT

1шт.

30

A36523

CAP

Element retainer

1шт.

31

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

32

A29993

VALVE SPRING

Retainer

1шт.

33

A29993

VALVE SPRING

Retainer

1шт.

33

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

1шт.

34

G1248

COVER

CAP - housing

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

36

92-6

LOCK WASHER,3/8"

4шт.

37

A141143

SPARE PART Filter mounting

1шт.

38

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

39

195-103

WASHER,5/16"

3/8 x 7/8 x 5/64"

1шт.

40

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

41

92-6

LOCK WASHER,3/8"

2шт.

45

A141148

SPARE PART RESERVOIR - hyd. oil

1шт.

46

A141146

SPARE PART Extension (Used w/o front weight adapter)

2шт.

47

A141147

SPARE PART Reservoir mounting

2шт.

48

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(Used w/A141146)

4шт.

48

11-1248

CARRIAGE BOLT,Short NK, 3/4"-10 x 7 1/2", G2

3/4 x 3" rd. hd. sq. nk. (Used w/o A141146)

2шт.

49

92-12

LOCK WASHER,3/4"

4шт.

50

25-1012

NUT,3/4"-10, G5

2шт.

51

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

52

92-6

LOCK WASHER,3/8"

4шт.

53

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.
