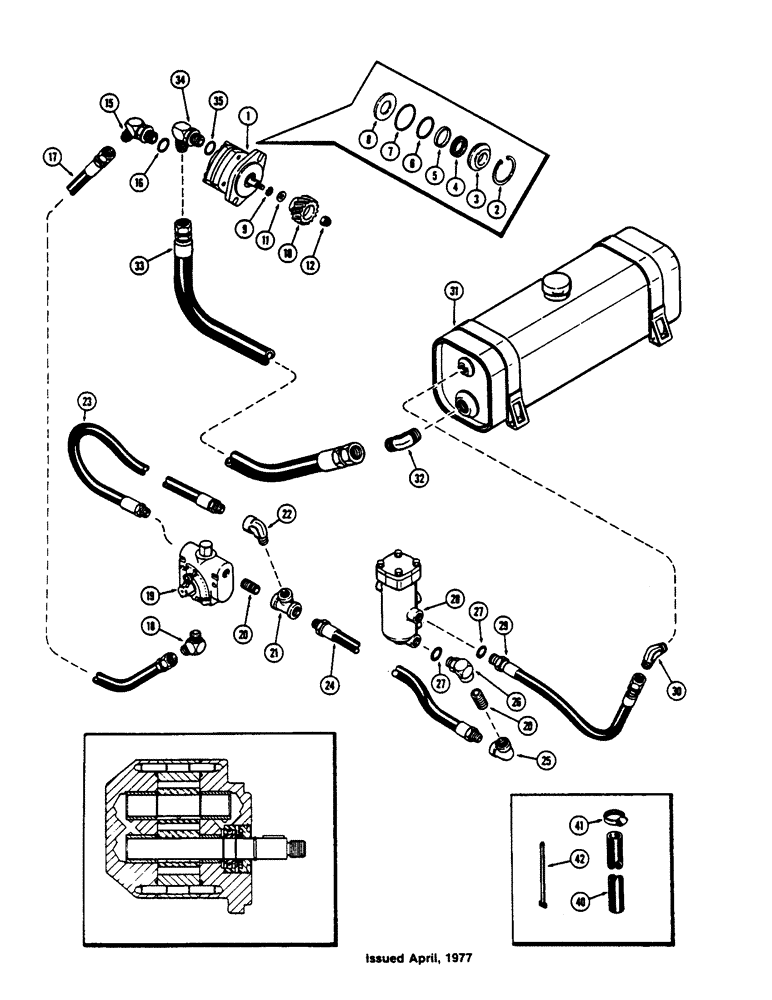

Запчасти Case IH 1175 (167A) - AUXILIARY HYDRAULIC PUMP KIT (08) - HYDRAULICS

A67233

KIT - auxiliary hydraulic (6 G.P.M.) (Mach. Item), Includes: Ref. 1 - 42

1шт.

A67234

KIT - auxiliary hydraulic (11 G.P.M.) (Mach. Item), Includes: Ref. 1 - 42

1шт.

1

A139692

PUMP

Auxiliary (6 G.P.M.)

1шт.

1

A139693

PUMP

SPARE PART Auxiliary (11 G.P.M.), Includes: Ref. 2 - 9

1шт.

A45378

SEAL

KIT - pump seal, Includes: Ref. 2 - 8

1шт.

2

A32181

SNAP RING,1.375", Int, #137

1шт.

3

A45377

SEAL

RETAINER

1шт.

4

A45374

RING

Quad

1шт.

5

A45376

COLLAR

O-Ring

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

15/16 x 1-1/8 x 3/32"

1шт.

7

A59066

O-RING,1.239" ID x 1.379" OD

1шт.

8

A45375

WASHER

Back-up

1шт.

9

D32101

SNAP RING,#62, Ext

1шт.

10

L43703

GEAR

Pump drive

1шт.

11

A64303

WASHER

41/64 x 1-1/16 x 1/16"

1шт.

12

131-58

LOCK NUT,1/2"-20, G5

Hex, Esna

1шт.

15

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ASSY - 5/8" x 3/4" thrds., 45 deg. adjustable, Incl. Ref 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RING - 1-11/64 x 1-33/64 x 15/64"

1шт.

17

L50840

HOSE

Pump to valve pressure (1/2" I.D. x 24")

1шт.

18

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

7/8" x 1/2" thrd., 45 deg

1шт.

19

A139696

VALVE

Variable flow

1шт.

20

221-1185

FITTING

NIPPLE - 1/2" P.T. x 1-1/2"

2шт.

21

218-1424

TEE - 1/2" P.T. street

1шт.

22

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

Street

1шт.

23

A141012

HOSE

Valve by-pass (3/8" I.D. x 22")

1шт.

24

A141145

SPARE PART Valve to filter (1/2" I.D. x 11-3/4")

1шт.

25

221-1377

ELBOW,90 Degree, 1/2" NPT

Street

1шт.

26

218-5454

ELBOW,90 Degree, 7/8"-14 ORB x 1/2" NPT Fem

ASSY, adjustable, Includes Ref. 27

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RING - 3/4 x 27/32 x 3/32"

1шт.

28

REF

INSTRUCTION

FILTER ASSY. - hydraulic oil (Order components) (See Figure 167C)

1шт.

29

HO34686

HOSE - filter to reservoir (1/2" I.D. x 24")

1шт.

30

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

31

A141148

SPARE PART RESERVOIR - hydraulic (5 gal.)

1шт.

32

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

1-5/16" x 1", 90 deg

1шт.

33

A141149

SPARE PART Reservoir to pump, suction (1" I.D. x 54")

1шт.

34

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adjustable, Incl. Ref. 35

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RING - 1-11/64 x 1-11/16 x 15/64"

1шт.

40

A66132

HOSE

Breather, 1" I.D. x 34"

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1-3/16 to 1-3/4"

1шт.

42

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie-down

1шт.
