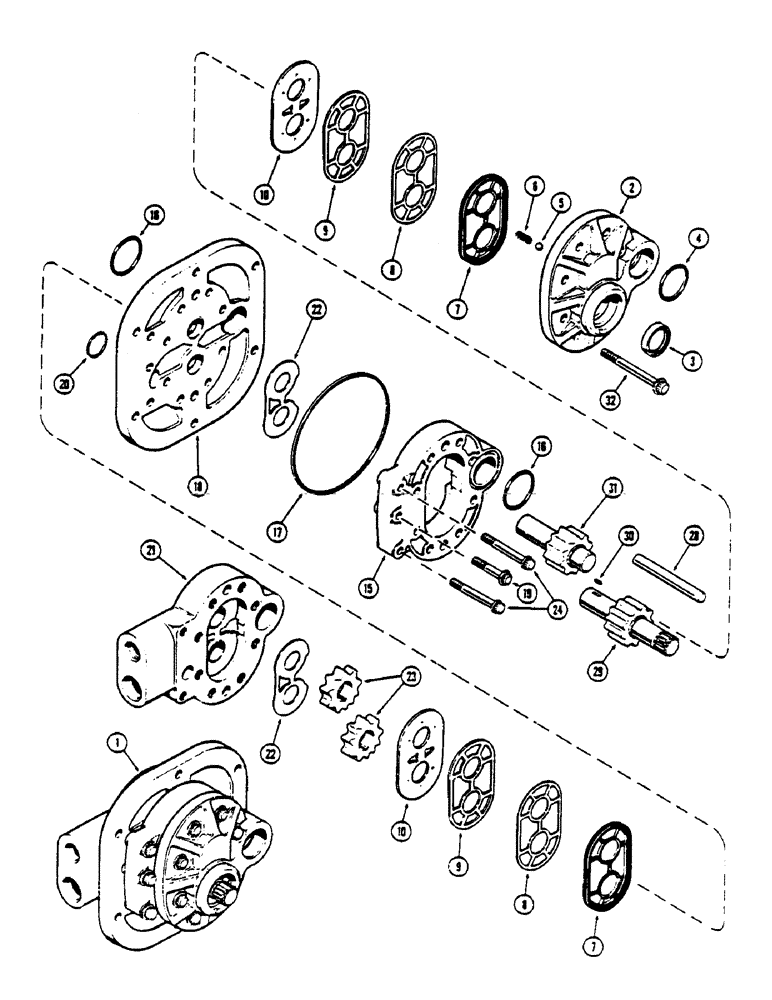

Запчасти Case IH 1175 (166) - HYDRAULIC PUMP (08) - HYDRAULICS

1

A62051

PUMP

PUMP ASSY. - hydraulic, Includes: Ref. 2 - 32

1шт.

1

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

1

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

3

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - main drive shaft

1шт.

Included w/ PUMP REPAIR KIT, A42826

1шт.

4

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - 1-3/8 x 1-5/8 x 1/8"

1шт.

Included w/ PUMP REPAIR KIT, A42826

1шт.

5

211-6

BALL,7/32" Dia

BALL, - relief valve 7/32" Dia

1шт.

Included w/ PUMP REPAIR KIT, A42826

1шт.

6

F9883

SPRING

SPRING - valve

1шт.

Included w/ PUMP REPAIR KIT, A42826

1шт.

7

A42174

SEAL

SEAL - diaphragm

2шт.

Included w/ PUMP REPAIR KIT, A42826

1шт.

8

A42305

GASKET

GASKET - seal, gear cavity

2шт.

Included w/ PUMP REPAIR KIT, A42826

1шт.

9

H273920

GASKET

GASKET - back-up (Replaces A42303)

2шт.

Included w/ PUMP REPAIR KIT, A42826

1шт.

10

A45351

DIAPHRAGM

DIAPHRAGM - pump (Replaces A42304)

2шт.

Included w/ PUMP REPAIR KIT, A42826

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - front (Order A62051)

1шт.

16

A57390

O-RING,0.739" ID x 0.879" OD

"O" RING - 1-9/16 x 1-3/4 x 3/32" (Order D26820)

2шт.

Included w/ PUMP REPAIR KIT, A42826

1шт.

17

A42301

O-RING,5.250" x 5.375" x .062"

"O" RING - 5-1/4 x 5-3/8 x 1/16"

1шт.

Included w/ PUMP REPAIR KIT, A42826

1шт.

18

NSS

NOT SOLD SEPARAT

FLANGE - pump

1шт.

19

166-29

12 PT SCREW,Flg, 5/16" - 18 x 1 3/4", Gr 8

SCREW - cap, 5/16 x 1-3/4" N.C. 12 pt. ferry

1шт.

20

A42302

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

GASKET - pressure port

1шт.

Included w/ PUMP REPAIR KIT, A42826

1шт.

21

NSS

NOT SOLD SEPARAT

COVER - pump end

1шт.

22

A43636

PLATE

PLATE - thrust (Replaces A43381)

2шт.

Included w/ PUMP REPAIR KIT, A42826

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR - displacement (Order A62051)

2шт.

24

166-32

12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8

SCREW - cap, 5/16 x 21/2" N.C. 12 pt. ferry

2шт.

28

NSS

NOT SOLD SEPARAT

PIN - dowel (7/16 x 2-3/4")

2шт.

29

NSS

NOT SOLD SEPARAT

GEAR ASSY. - main drive

1шт.

30

NSS

NOT SOLD SEPARAT

KEY - gear, 1/8 x 3/16 x 3/8"

1шт.

31

NSS

NOT SOLD SEPARAT

GEAR ASSY. - idler

1шт.

32

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - cap, 3/8 x 3-1/2" N.C. 12 point ferry

8шт.

A42826

- pump repair, Includes: Ref. 3 - 10, 16, 17, 20 and 22

1шт.
