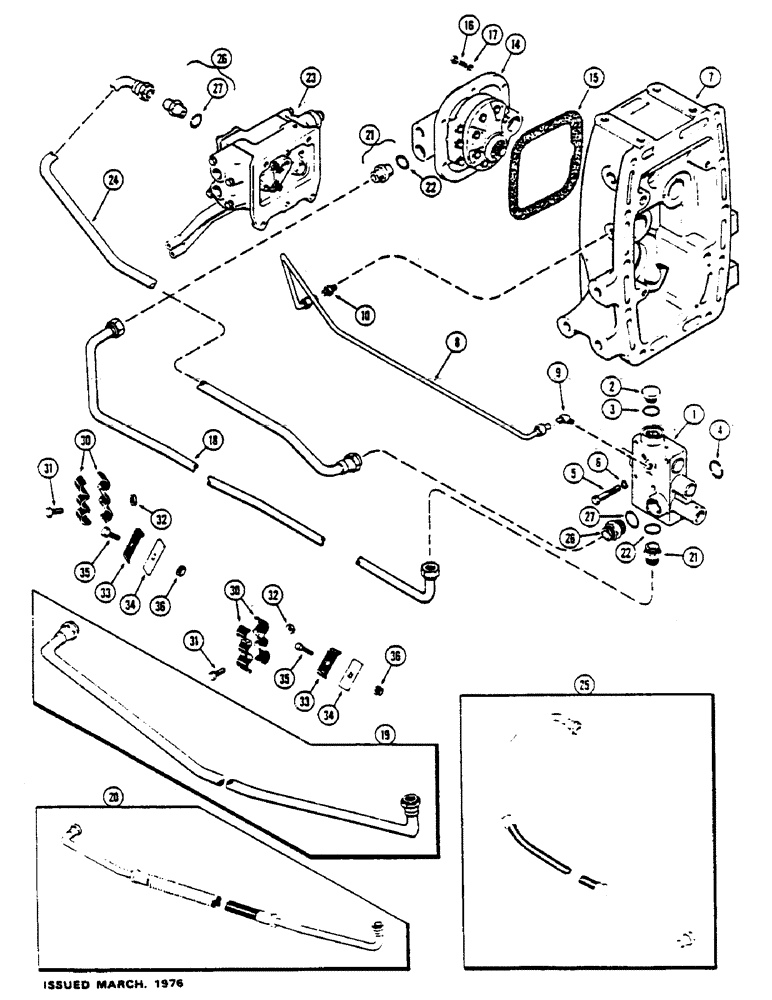

Запчасти Case IH 1175 (160) - HYDRAULIC SYSTEM, WITH P.T.O. (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSY. - regulator (See Figure 164)
1шт.
2
218-5158
PLUG,Hex Hd, 1 1/16"-12 ORB
3/4" tube, Includes: Ref. 3
1шт.
3
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
4
F62075
O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro
"O" RING - port (3/4 x 1 x 1/8")
1шт.
5
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
3шт.
6
92-6
LOCK WASHER,3/8"
3шт.
7
REF
INSTRUCTION
HOUSING - PTO (Order from Figure 144)
1шт.
8
A60289
TUBE
Regulator valve to PTO housing
1шт.
9
218-533
ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF
(3/8" tube)
1шт.
14
A62051
PUMP
ASSY. - hydraulic (See Figure 166)
1шт.
14
AR62051
REMAN-HYD PUMP
Remanufactured, HYDRAULIC PUMP
1шт.
14
AC62051
CORE-HYDRAULIC PUMP
Return Number
1шт.
15
A32096
GASKET
Pump
1шт.
16
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
6шт.
17
92-6
LOCK WASHER,3/8"
6шт.
18
A139845
TUBE
Regulator valve to pump (Replaces A64479 and A67071)
1шт.
19
A67071
TUBE
Regulator valve to pump (Replaces A64479) (Order A139845)
1шт.
20
A64479
TUBE ASSY.
Regulator valve to pump (Order A139845)
1шт.
21
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
3/4" tube, Incl. Ref. 22
2шт.
22
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
23
REF
INSTRUCTION
VALVE ASSY. - auxiliary (See Figure 170)
1шт.
24
A67073
TUBE
Valve to valve (Replaces A64477)
1шт.
25
A64477
TUBE
Valve to valve (Order A67073)
1шт.
26
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
3/4" tube, Incl. Ref. 27
2шт.
27
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
30
A60862
CLAMP
Tube (3 tubes)
4шт.
32
9635082
NUT,5/16" - 18, Gr 5
Hex
4шт.
33
A61272
CLAMP
Tube (2 tubes)
2шт.
34
A60864
PLATE
Clamp mounting
2шт.
36
9635082
NUT,5/16" - 18, Gr 5
Hex
2шт.
Выбрано товаров: 33
