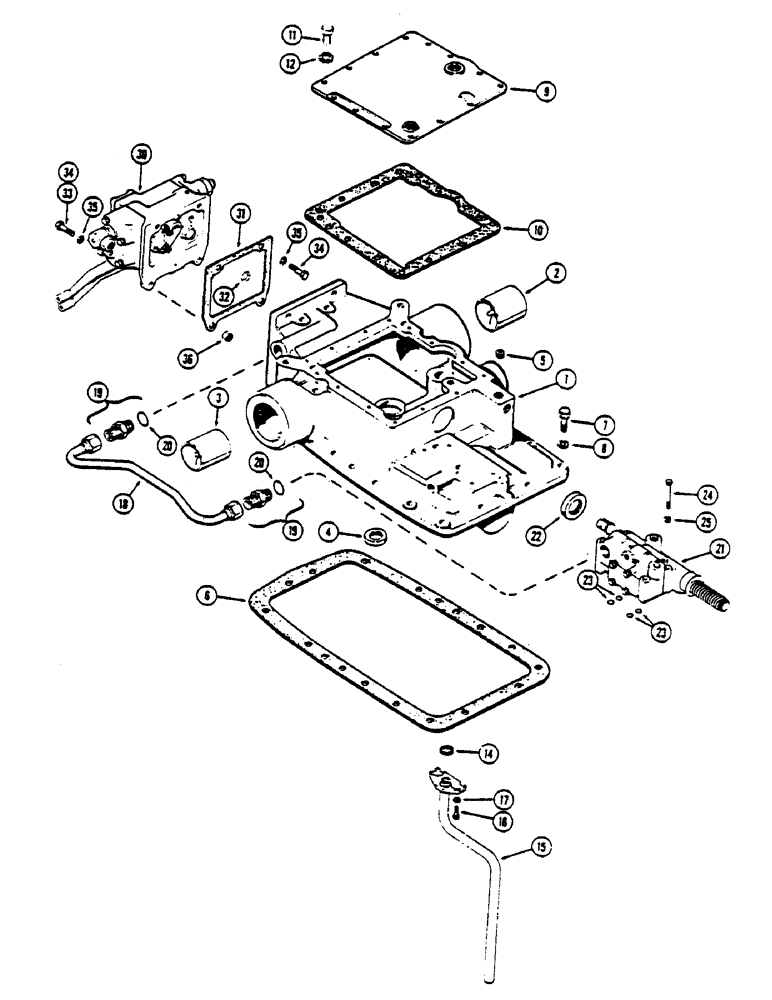

Запчасти Case IH 1175 (158) - HYDRAULIC SYSTEM, WITH DRAFT CONTROL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A60639
HOUSING
ASSY. - rockshaft, Includes Ref. 2 - 5
1шт.
2
A32303
BUSHING,69.75mm ID x 74.73mm OD x 76.2mm L
LH (2-3/4 x 2-15/16 x 3")
1шт.
3
A32302
BUSHING,60.27mm ID x 65.2mm OD x 76.2mm L
RH (2-3/8 x 2-9/16 x 3")
1шт.
4
A12014
BUSHING
Lower (1-1/2 x 1-3/4 x 3/4")
1шт.
5
221-842
DRAIN PLUG,Hex Soc, 3/8"-18 NPTF
Pipe
3шт.
6
A32299
GASKET
, Serial Range: Housing-trans.
1шт.
7
113-464
BOLT - 1/2 x 1-1/2" N.C. hex. (Gr. 8)
12шт.
7
113-414
X
BOLT - 1/2 x 6" N.C. hex. (Gr. 8)
2шт.
8
80679
LOCK WASHER,1/20.507 CST ZND
16шт.
9
A59598
COVER
Housing
1шт.
10
A33383
GASKET
Cover
1шт.
11
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
10шт.
11
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
2шт.
12
193-45
WASHER,Ext-Int Tooth, 5/16"
SPARE PART Shakeproof
2шт.
14
A32343
SEAL
Return tube (47/64 x 1-13/64 x 13/64")
1шт.
15
A58371
TUBE
Return, hydraulic fluid
1шт.
16
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
17
92-6
LOCK WASHER,3/8"
2шт.
18
A59602
TUBE
Control, Serial Range: valve-housing
1шт.
19
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
3/4" tube, Incl. Ref. 20
2шт.
20
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
21
A59600
VALVE
ASSY, draft control (See Figure 172)
1шт.
22
A32307
SEAL
Valve (1-15/32 x 1-7/8 x 13/64")
1шт.
23
A27410
O-RING,0.487" ID x 0.693" OD x 0.103"
4шт.
24
13-544
BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5
3шт.
24
13-556
BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5
1шт.
25
92-5
LOCK WASHER,5/16"
4шт.
30
REF
INSTRUCTION
VALVE ASSY. - auxiliary (See Figure 168)
1шт.
31
A32349
GASKET
, Serial Range: Valve-housing
1шт.
32
A32348
GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk
, Serial Range: Valve-housing
1шт.
33
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
2шт.
34
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
2шт.
35
92-8
LOCK WASHER,1/2"
4шт.
36
25-108
NUT,1/2"-13, G5
Hex
2шт.
Выбрано товаров: 35
