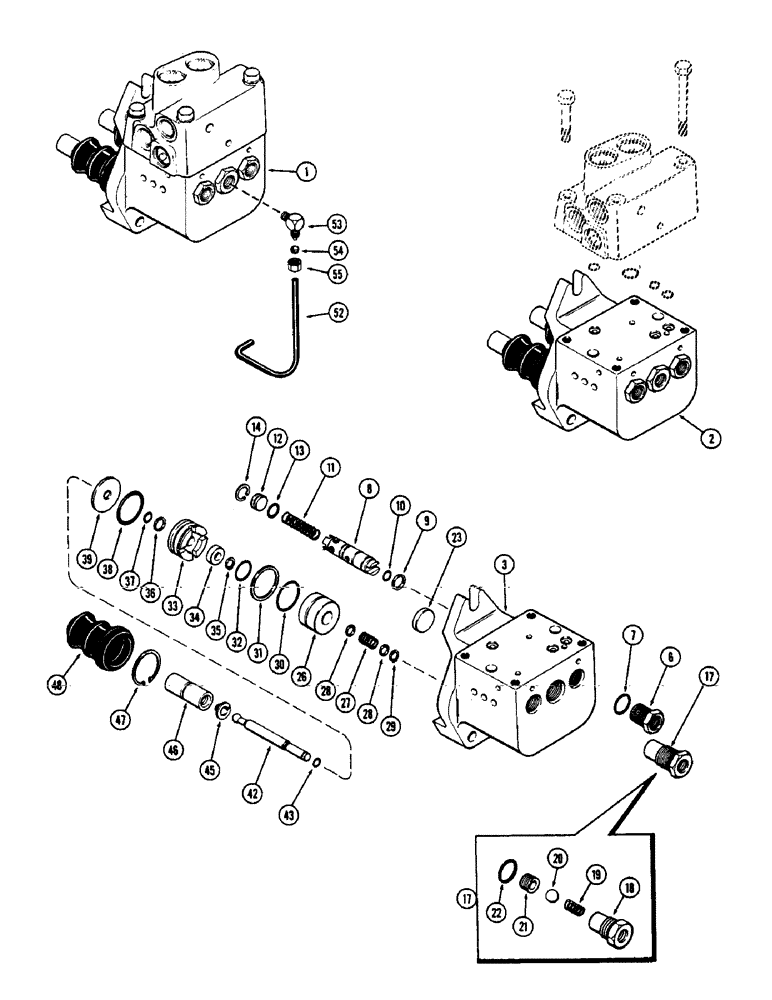

Запчасти Case IH 1175 (135A) - A65054 POWER BRAKE VALVE (07) - BRAKES

1

A65054

VALVE

ASSY. - power brake (Cont'd from Figure 134), Includes: Ref. 2 - 48

1шт.

2

A65053

VALVE

ASSY. - master cylinder (Replaces A62075), Includes: Ref. 3 - 48

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve (Order G100292)

1шт.

6

A59948

PLUG

- reducer

2шт.

8

A61104

SPOOL

- boost

2шт.

9

A59951

RING

- seal

2шт.

Included w/ REPAIR KIT, A43710

1шт.

10

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Spool

2шт.

Included w/ REPAIR KIT, A43710

1шт.

11

A59950

SPRING

- spool

2шт.

12

A59952

PLUG - spool

2шт.

13

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - plug, 7/16 x 5/8 x 3/32"

2шт.

Included w/ REPAIR KIT, A43710

1шт.

14

G46147

SNAP RING,0.625", Int, #62

Ring, Snap, , plug 0.625", Int, #62

2шт.

17

A61508

VALVE

ASSY. - pressure relief, Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - (Order A61508)

1шт.

19

A61510

SPRING

- compression

1шт.

20

211-12

BALL,7/16 Dia

- steel 7/16" dia.

1шт.

21

A61511

SEAT

- ball

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 5/8 x 3/32"

1шт.

23

41-1016

PLUG,Cup, 1"

- dia. Cup, 1"

1шт.

26

A59953

PISTON

- valve

2шт.

27

A59957

SPRING

- piston

2шт.

28

A59958

RETAINER

- spring (1/16" thick) (Can use A65936)

4шт.

28

A65936

COLLAR

RETAINER - spring (1/8" thick (Replaces A59958)

2шт.

29

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston #31, Ext

2шт.

30

A59954

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - piston, 1-3/16 x 1-5/16 x 1/16"

2шт.

Included w/ REPAIR KIT, A43710

1шт.

31

A59955

SEALING RING

RING - seal

2шт.

Included w/ REPAIR KIT, A43710

1шт.

32

F8220

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

"O" RING - 3/4 x 7/8 x 1/16"

2шт.

Included w/ REPAIR KIT, A43710

1шт.

33

A62072

SEAT

STOP - piston

2шт.

34

A59959

WASHER

- seal

2шт.

35

G10659

SNAP RING,#31, Ext

Ring, Snap, , washer #31, Ext

2шт.

36

A59961

RING

- back-up

2шт.

Included w/ REPAIR KIT, A43710

1шт.

37

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - 3/8 x 9/16 x 3/32"

2шт.

Included w/ REPAIR KIT, A43710

1шт.

38

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - 1-1/4 x 1-1/2 x 1/8"

2шт.

39

A60646

SPACER

RETAINER - piston stop

2шт.

42

A59963

ROD

- piston

2шт.

43

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - 3/16 x 5/16 x 1/16"

2шт.

Included w/ REPAIR KIT, A43710

1шт.

45

A60647

COLLAR

RETAINER - nylon, piston rod

2шт.

Included w/ REPAIR KIT, A43710

1шт.

46

A59964

CONNECTOR, ELEC

CONNECTOR - piston rod

2шт.

47

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , connector 1.50", Int, #150

2шт.

48

A59966

BOOT

- piston rod

2шт.

Included w/ REPAIR KIT, A43710

1шт.

52

A60771

TUBE

- relief valve pressure

1шт.

53

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

- 90 Degrees, 3/8 " tube x 1/4" P.T., Includes: Ref. 54 and 55

2шт.

54

222-5186

SLEEVE,3/8" Tube

- nylon, 3/8" Tube

1шт.

55

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

A43710

KIT

REPAIR KIT - valve assy. Includes: Ref. 9, 10, 13, 30 - 32, 36, 37, 43, 45 and 48

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - plug, 41/64 x 1/2 x 3/32"

2шт.
