Запчасти Case IH 1175 (006) - (451B) TURBO DIESEL ENGINE, OIL COOLER (02) - ENGINE

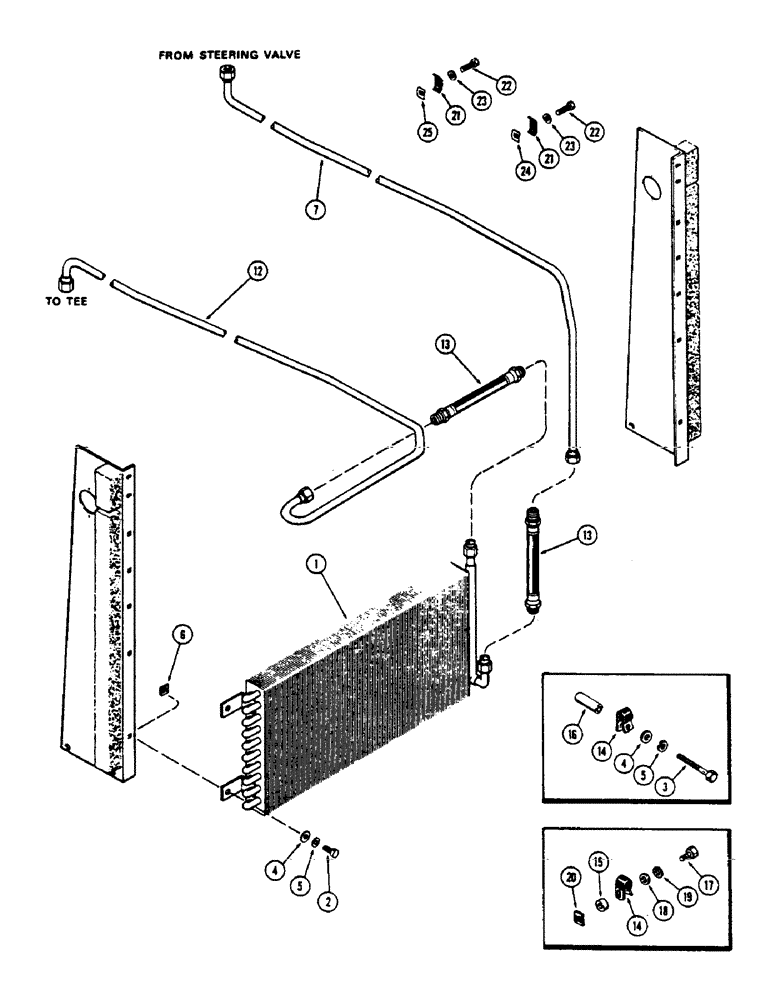

Схема запчастей Case IH 1175 - (006) - (451B) TURBO DIESEL ENGINE, OIL COOLER (02) - ENGINE
19
14
6
18
24
21
22
4
2
12
22
23
3
23
4
14
13
25
17
1
5
15
13
5
20
21
16
7

Артикул

Название

Примечание

Количество

1

A67088

COOLER

- oil

2шт.

2

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

7шт.

3

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1шт.

4

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

8шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

6

131-611

NUT,Ret, 1/4"-20

- 1/4" Tinnerman

8шт.

7

A64521

TUBE

- oil cooler, upper

1шт.

12

A64522

TUBE

- oil cooler, lower

1шт.

13

A60399

HOSE

- tube to cooler (8" long)

2шт.

14

49838

CLAMP

- oil cooler tube lower

2шт.

15

A61457

SPACER - cooler to clamp, lower (9/32 x 3/4 x 7/16")

1шт.

16

A61813

SPACER - cooler to clamp, upper (23/64 x 35/64 x 2")

1шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

18

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

131-611

NUT,Ret, 1/4"-20

- 1/4" Tinnerman

1шт.

21

A60404

CLIP

- tube mounting

2шт.

22

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

23

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

2шт.

24

131-611

NUT,Ret, 1/4"-20

- 1/4" "U" type Tinnerman

1шт.

25

25-104

NUT,1/4"-20, G5

1шт.

Выбрано товаров: 21
