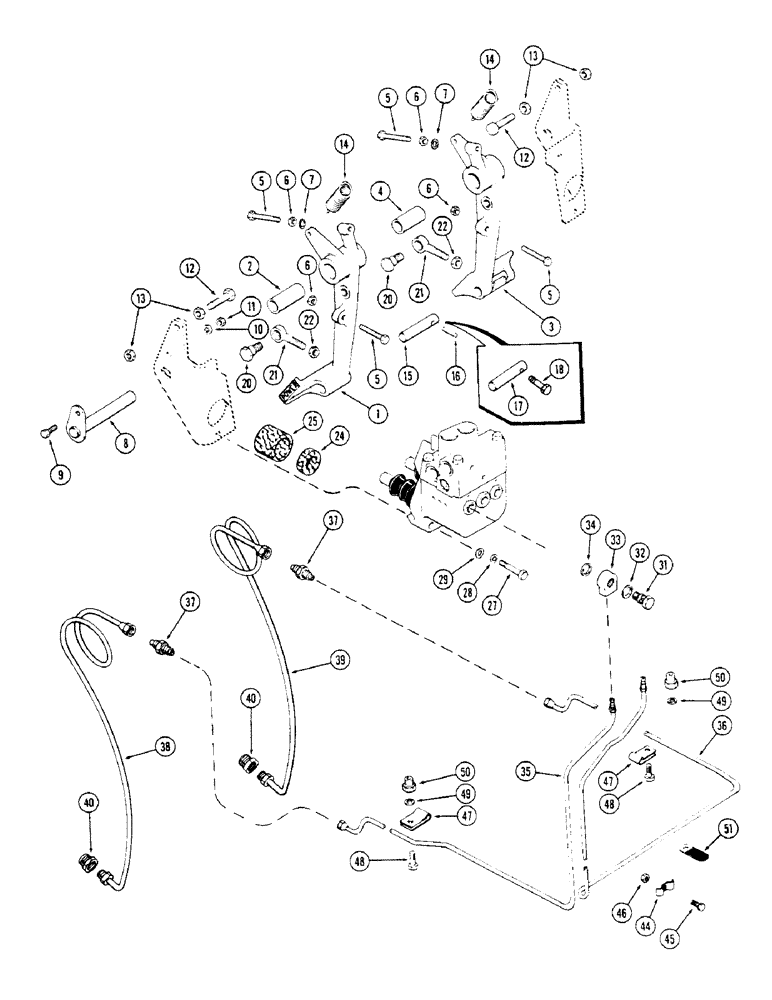

Запчасти Case IH 1175 (131A) - POWER BRAKE SYSTEM, USED PRIOR TO TRACTOR SERIAL NUMBER 8715247 (07) - BRAKES

1

A59394

SPARE PART ASSY - brake, RH, Includes Ref. 2

1шт.

2

A59475

BUSHING

Pedal

1шт.

3

A59471

SPARE PART ASSY - brake, LH, Includes Ref. 4

1шт.

4

A59475

BUSHING

Pedal

1шт.

5

A59472

BOLT

Stop, 5/16 x 2-1/4" N.C. hex.

4шт.

6

25-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

7

193-9

LOCK WASHER,Ext Tooth, 5/16"

2шт.

8

A59452

SHAFT

Pivot, brake pedal

1шт.

9

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

1шт.

12

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

13

25-146

JAM NUT,Jam, 3/8"-16, G5

4шт.

14

A59470

SPRING

Return, pedal

2шт.

15

A59454

PIN

Lock, brake pedal (See Ref. 17 and 18)

1шт.

16

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

(See ref. 17 and 18)

1шт.

17

A65342

PIN

Lock, brake pedal (w/5/16" tapped hole)

1шт.

18

A65343

BOLT

Lock pin, 5/16 x 1-1/2" N.C. hex.

1шт.

20

A59152

STEP BOLT

Shoulder, pedal to eye bolt

2шт.

21

A59538

BOLT

Eye, Serial Range: pedal-valve

2шт.

22

25-146

JAM NUT,Jam, 3/8"-16, G5

2шт.

23

REF

INSTRUCTION

VALVE ASSY - power brake (See Figures 132-133E and 134-135A)

1шт.

24

A61287

COLLAR

Air seal, inner

2шт.

25

A61288

COLLAR

Air seal, outer

2шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Early valve assy)

2шт.

27

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

(Late valve assy)

2шт.

28

92-6

LOCK WASHER,3/8"

3шт.

29

95-6

WASHER,3/8"

7/16 x 1 x 5/64"

2шт.

31

A12864

BOLT

Tube connection

2шт.

32

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

GASKET - outer, 13/16 x 5/8 x 1/32"

2шт.

33

A18531

FITTING

Brake, Serial Range: tube-valve

2шт.

34

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

Inner, 13/16 x 1/2 x 1/32"

2шт.

35

A59478

TUBE

Upper RH, brake valve

1шт.

36

A59479

TUBE

Upper LH, brake valve

1шт.

37

222-712

FITTING

UNION - upper to lower tube, 1/4" tube x 1/4" P.T.

2шт.

38

A61484

SPARE PART Lower RH, brake valve

1шт.

39

A61485

SPARE PART Lower LH, brake valve

1шт.

40

222-1013

HYD CONNECTOR,7/16"-24 Inv Fl x 1/4" NPT

Tube to housing

2шт.

44

A60556

SPARE PART Tube, upper

1шт.

45

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

46

25-104

NUT,1/4"-20, G5

1шт.

47

A59793

SPARE PART Tube

4шт.

48

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

49

95-4

WASHER,1/4"

WASHER - 5/16 x 3/4 x 1/16"

4шт.

50

A59481

NUT

Blind fastener (in platform)

4шт.

51

A22880

CLIP

LH tube

1шт.
