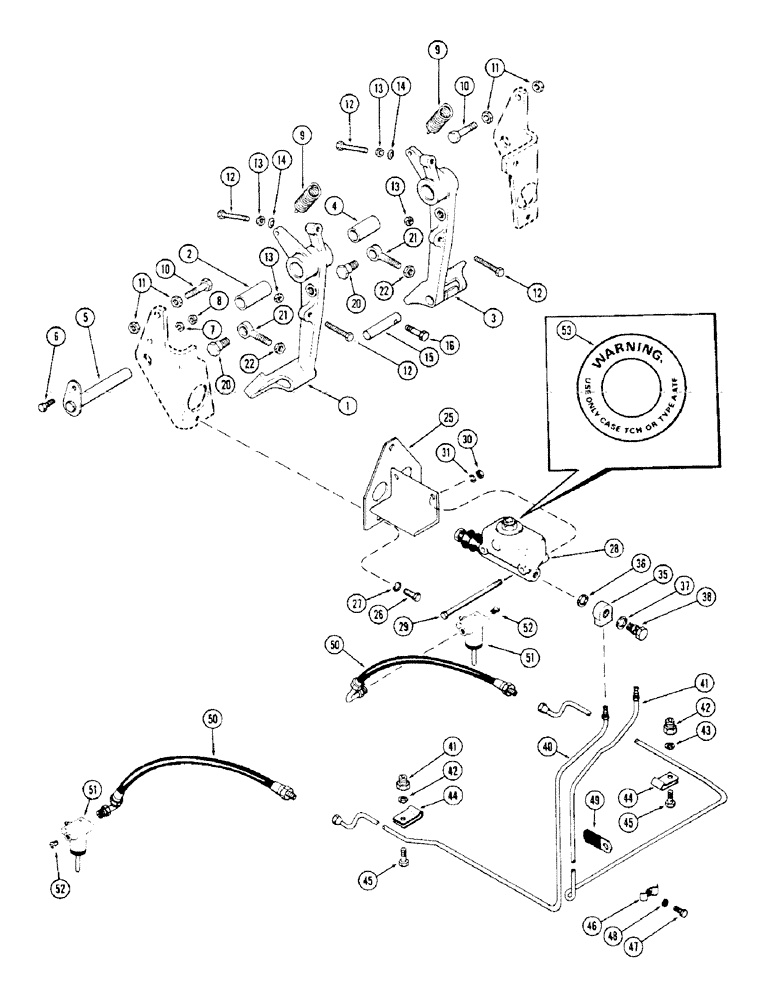

Запчасти Case IH 1175 (130) - HYDRAULIC BRAKE SYSTEM, FIRST USED TRACTOR SERIAL NUMBER 8715247 (07) - BRAKES

1

A59394

PEDAL ASSY. - R.H. brake, Includes: Ref. 2

1шт.

2

A59475

BUSHING

- pedal pivot

1шт.

3

A59471

PEDAL ASSY. - L.H. brake, Includes: Ref. 4

1шт.

4

A59475

BUSHING

- pedal pivot

1шт.

5

A59452

SHAFT

- pivot, brake pedal

1шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

9

A59470

SPRING

- return, brake pedal

2шт.

10

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Spring anchor Hex, 3/8"-16 x 1 3/4", G5

2шт.

11

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex.

4шт.

12

A59472

BOLT

- pedal stop, 5/16 x 2-1/4" N.C. hex.

4шт.

13

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C. hex.

4шт.

14

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

15

A65342

PIN

- pedal lock

1шт.

16

A65343

BOLT

- lock pin, 5/16 x 1-1/2" N.C. hex.

1шт.

20

A59152

STEP BOLT

BOLT - shoulder, eye, Serial Range: bolt-pedal

2шт.

21

A61269

BOLT

- eye, Serial Range: pedal-valve

2шт.

22

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex.

2шт.

25

A59535

SUPPORT - master cylinder

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

27

92-6

LOCK WASHER,3/8"

3шт.

28

A59534

CYLINDER

ASSY. - master (Repairs Figure 131C)

2шт.

29

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

BOLT - 3/8 x 5-1/2" N.C. hex.

2шт.

30

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

35

A18531

FITTING

- tube to master cylinder

2шт.

36

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner, tube fitting (1/2 x 13/16 x 1/32" copper)

2шт.

37

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, tube fitting (5/8 x 13/16 x 1/32" copper)

2шт.

38

A59477

STEP BOLT

BOLT - tube fitting

2шт.

40

A59478

TUBE

- hydraulic, R.H. valve

1шт.

41

A59479

TUBE

- hydraulic, L.H. brake

1шт.

42

A59481

NUT

- blind, Serial Range: tube-platform

4шт.

43

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

4шт.

44

A59793

CLIP -, Serial Range: tube-platform

4шт.

45

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

46

A60556

CLAMP -, Serial Range: tube-firewall

1шт.

47

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

49

A22880

CLIP

- L.H. tube to platform bolt

1шт.

50

A59483

HOSE

- slave cylinder

2шт.

51

A62483

CYLINDER

ASSY. - slave, brake assy. (Repairs Figure 131C)

2шт.

52

222-1062

PLUG,7/16"-24, Inv Fl

- fitting, 1/4" tube x 7/16-24 thrd.

2шт.

53

A61114

DECAL

PLATE - warning, master cylinder

2шт.
