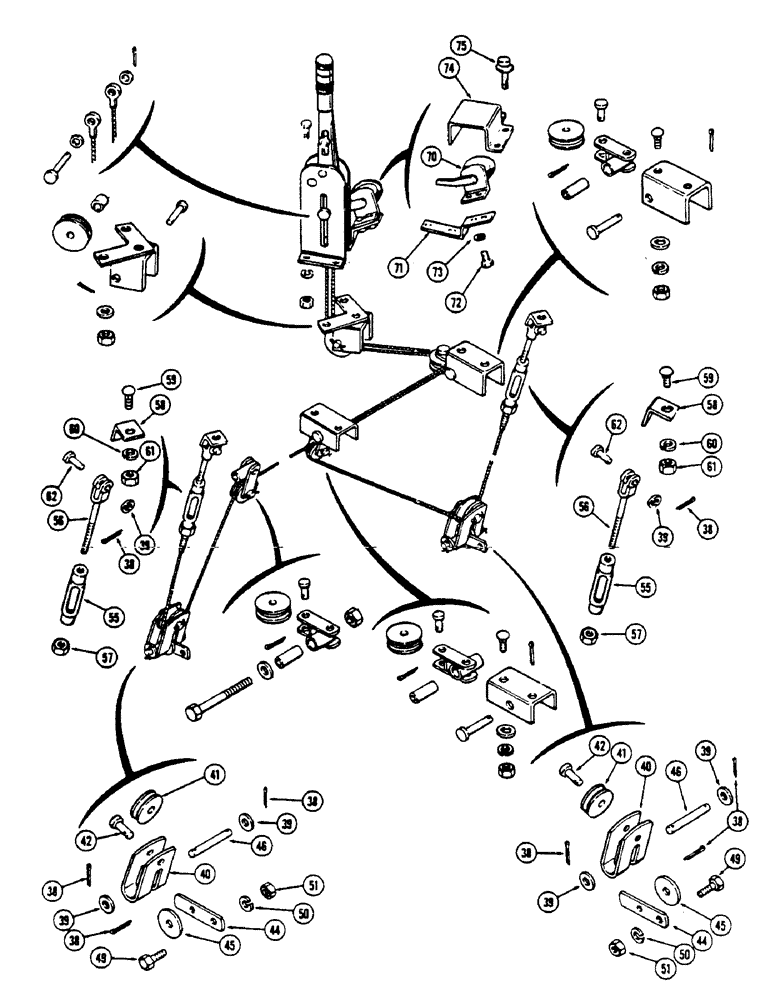

Запчасти Case IH 1175 (125C) - PARKING BRAKE, USED WITH POWER BRAKES, USED PRIOR TO TRACTOR SERIAL NUMBER 8715247 (07) - BRAKES

38

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

6шт.

39

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 3/32"

6шт.

40

A62373

SUPPORT - pulley, lower

2шт.

41

A59416

SHEAVE

PULLEY - brake, lower

2шт.

42

A59419

PIN,7.9mm OD x 30.96mm L

- clevis (7/16 x 1-1/8")

2шт.

44

A62374

SUPPORT - pulley, lower

2шт.

45

A62375

SPACER - support

2шт.

46

A62376

PIN

- support pulley

2шт.

49

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

50

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

51

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

55

49785

TURNBUCKLE

- cable

2шт.

56

A61501

ROD

- cable end

2шт.

57

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

58

A61498

SUPPORT - cable end

2шт.

59

111-236

BOLT - 5/16 x 7/8" N.C. rd. hd. sq. nk.

2шт.

60

92-5

LOCK WASHER,5/16"

2шт.

61

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

62

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Cable end 5/16" x .940"

2шт.

70

A33977

SWITCH

- brake light

1шт.

71

A60542

BRACKET - switch

1шт.

72

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10-32 x 3/8" rd. hd.

2шт.

73

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

74

A59422

COVER - light switch

1шт.

75

187-1053

SELF-TAP SCREW,Truss Hd, #10 x 1/2"

SCREW - self-tapping, #10 x 1/2" truss hd.

3шт.
