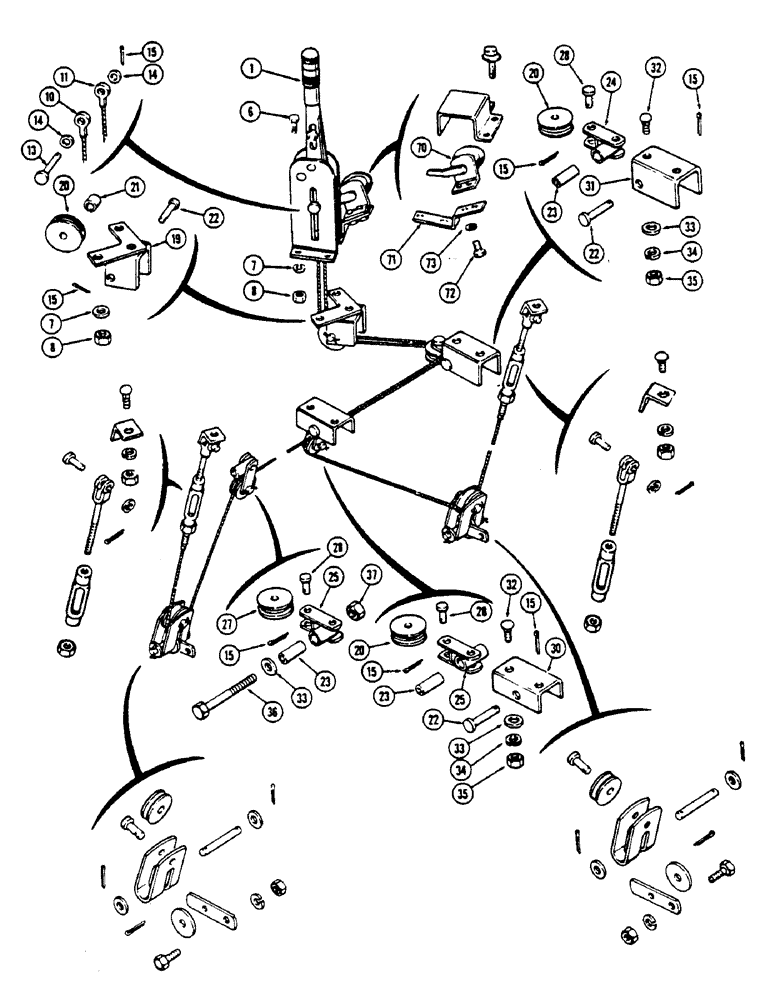

Запчасти Case IH 1175 (125A) - PARKING BRAKE, USED WITH POWER BRAKES, USED PRIOR TO TRACTOR SERIAL NUMBER 8715247 (07) - BRAKES

1

A59410

LEVER

ASSY. - hand brake

1шт.

A42204

PIN

- lever

1шт.

D47261

WASHER

- spring

1шт.

C14652

RING

- snap, pin retaining

1шт.

6

113-293

BOLT

- 3/8 x 1" N.C. hex.

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

10

A62222

CABLE

- brake (45")

1шт.

11

A62223

CABLE

- brake (64")

1шт.

12

A62120

BUSHING - spacer support

3шт.

12

A59153

CLEVIS PIN

PIN - clevis (5/16 x 2-1/4") (Order Ref. 13, 14 and 15)

1шт.

13

A76379

PIN

- straight (Replaces A59153)

1шт.

14

195-21

WASHER,5/16"

- 11/32 x 11/16 x 1/16"

2шт.

15

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

9шт.

19

A62219

SUPPORT - pulley

1шт.

20

A62224

PULLEY - brake, upper

3шт.

21

A61496

SPACER - pulley

1шт.

22

A61495

PIN - clevis (7/16 x 1-31/32")

3шт.

24

A62466

SUPPORT - pulley (L.H. platform)

1шт.

25

A62117

SUPPORT - pulley

2шт.

27

A59416

SHEAVE

PULLEY - brake, upper

1шт.

28

A59419

PIN,7.9mm OD x 30.96mm L

- clevis (7/16 x 1-18")

3шт.

30

A61025

SPRING

CHANNEL - pulley support

1шт.

31

A62480

CHANNEL

- pulley support

1шт.

32

111-236

BOLT - 5/16 x 78" N.C. rd. hd. sq. nk.

4шт.

33

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 3/32"

5шт.

34

92-5

LOCK WASHER,5/16"

4шт.

35

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

36

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- 5/16 x 3-3/4" N.C. hex.

1шт.

37

131-173

NUT,5/16"-18, GA

- self-locking, 5/16" N.C. hex.

1шт.
