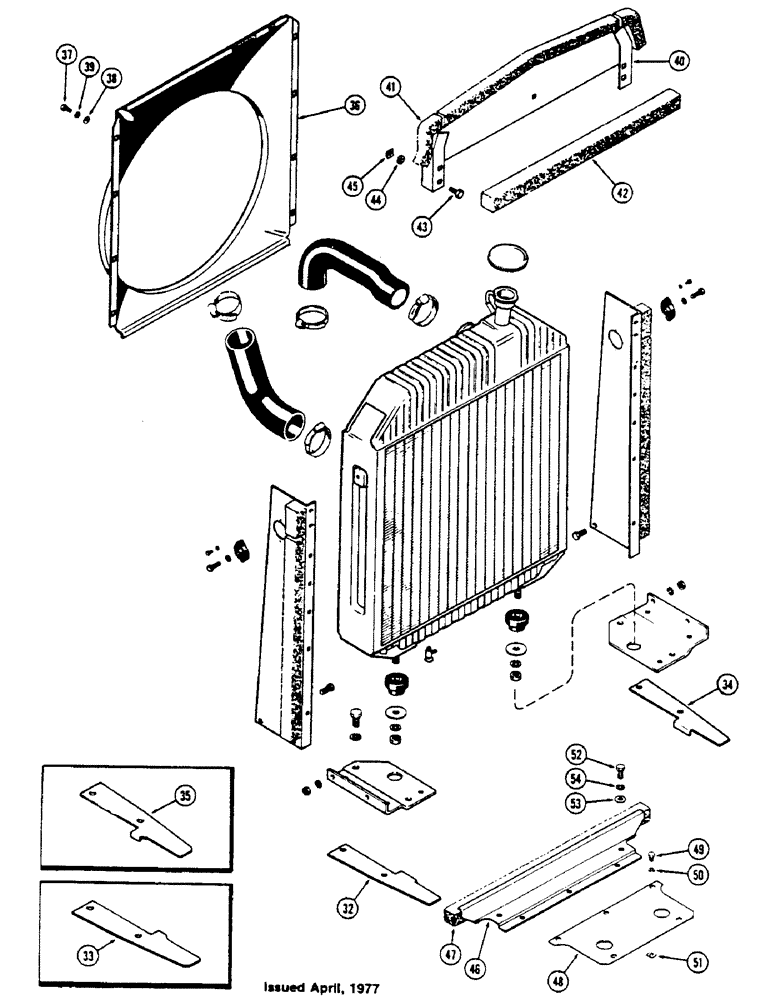

Запчасти Case IH 1175 (005A) - RADIATOR AND ATTACHING PARTS, (451BDT) DIESEL ENGINE (02) - ENGINE

32

A61298

BAFFLE

- lower, R.H. (1st used trac. ser. no. 8693001)

1шт.

33

A61662

BAFFLE

- lower, R.H. to trac., Serial Range: -8693001

1шт.

34

A61299

BAFFLE

- lower, L.H. (1st used trac. ser. no. 8693001)

1шт.

35

A61663

BAFFLE

- lower, L.H. to trac., Serial Range: -8693001

1шт.

36

A59891

GUARD

SHROUD - fan

1шт.

37

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

38

195-515

WASHER,#12

- 1/4 x 1/2 x 1/16"

8шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

40

A61726

BAFFLE ASSY. - front, radiator, Includes: Ref. 41 and 42

1шт.

41

A61727

SEAL

- top, to be attached with adhesive 345-22

1шт.

42

A59877

SEAL

- upper core, to be attached with adhesive 345-22

1шт.

43

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

45

131-611

NUT,Ret, 1/4"-20

- 1/4" N.C. Tinnerman

4шт.

46

A59879

BAFFLE ASSY. - lower rear, radiator, Includes: Ref. 47

1шт.

47

A59880

SEAL

- bottom, to be attached with adhesive 345-22

1шт.

48

A59881

BAFFLE - lower front, radiator

1шт.

49

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

50

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

51

131-610

SPRING NUT,U, Ret, 1/4"-20

3шт.

52

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

53

95-6

WASHER,3/8"

- 7/16 x 1/8 x 5/64"

4шт.

54

92-6

LOCK WASHER,3/8"

4шт.
