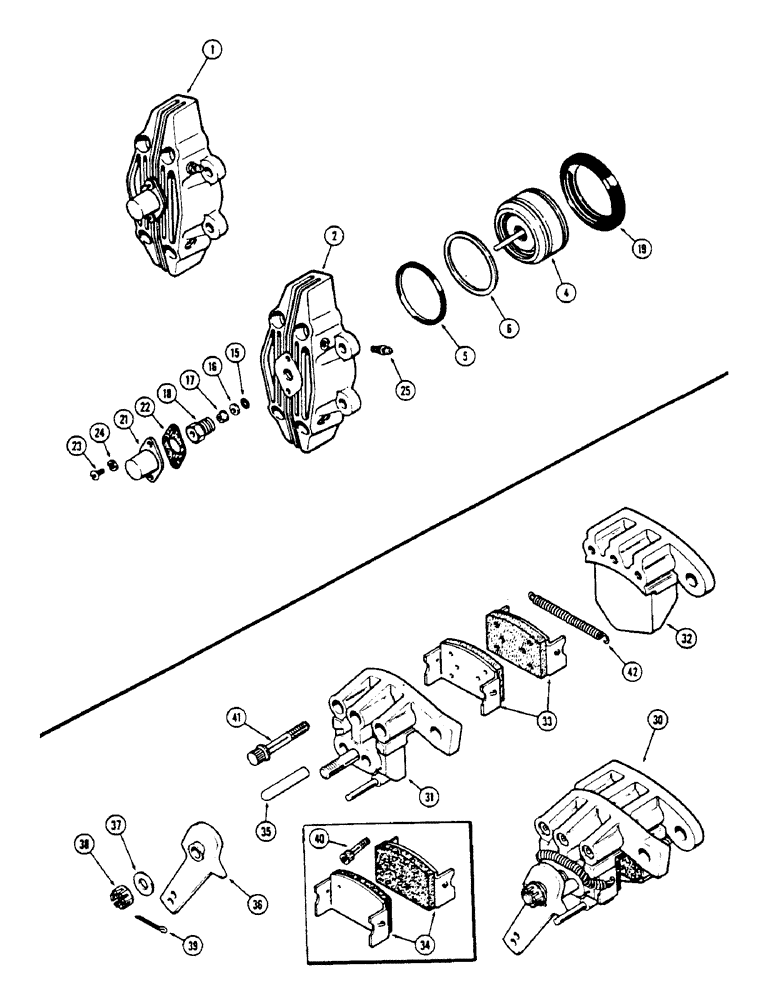

Запчасти Case IH 1175 (122) - CALIPER BRAKE, USED PRIOR TO TRACTOR SERIAL NUMBER 8715247 (07) - BRAKES

1

A65338

BRAKE ASSY.

- caliper, R.H. (Replaces A62126), Includes: Ref. 2 - 25

1шт.

1

A65339

BRAKE

ASSY. - caliper, L.H. (Replaces A62127), Includes: Ref. 2 - 25

1шт.

2

A43310

HOUSING

- brake, R.H.

1шт.

2

A43311

HOUSING

- brake, L.H.

2шт.

4

A43312

PISTON

ASSY. - brake

1шт.

5

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston (outer seal), Includes: Ref. 5 and 6

1шт.

6

A23535

OIL SEAL

RING - back-up

1шт.

15

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - brake pin

1шт.

16

A43314

WASHER

- spacer

1шт.

17

A43315

COLLAR

COLLET - brake

1шт.

18

A43316

NUT

- torque

1шт.

19

A43313

BOOT

- dust

1шт.

21

A43318

COVER

- brake assy.

1шт.

22

A43317

GASKET

- cover

1шт.

23

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" rd. hd.

2шт.

24

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

25

A43319

BLEEDER,Bleeder, 5/16" - 24 x 0.64"

- brake

1шт.

30

A61304

BRAKE ASSY. - parking, R.H., Includes: Ref. 31 - 42

1шт.

30

A61305

BRAKE ASSY. - parking, L.H., Includes: Ref. 31 - 42

1шт.

31

A43302

HOUSING ASSY. - L.H. (incl. stop pin and stud), parking brake

1шт.

31

A43306

HOUSING ASSY. - R.H. (incl. stop pin and stud), parking brake

1шт.

32

A43303

HOUSING - carrier, L.H., parking brake assembly

1шт.

32

A43307

HOUSING - carrier, R.H., parking brake assembly

1шт.

33

A43864

BRAKE PAD

LINER ASSY. - brake (riveted), parking

2шт.

34

A43299

SLEEVE CYLINDER

LINER ASSY. - brake (bonded) (Order A43864), parking

2шт.

35

A43301

PIN

- brake thrust, parking, assembly

2шт.

36

A43304

LEVER - cam, R.H., parking brake assembly

1шт.

36

A43308

LEVER - cam, L.H., parking brake assembly

1шт.

37

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32", parking brake assembly

1шт.

38

A43305

NUT - lock, cam retainer, parking brake assembly

1шт.

39

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), , Parking brake assembly 5/32" x 1"

2шт.

40

61-644

SCREW

- 3/8 x 2-3/4" N.C. socket hd. (w/bonded liner), parking brake assembly

3шт.

41

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - 3/8 x 3-1/2" N.C. ferry hd. (w/riveted liner), parking brake assembly

3шт.

42

A43300

SPRING

- liner, parking brake assembly

2шт.
