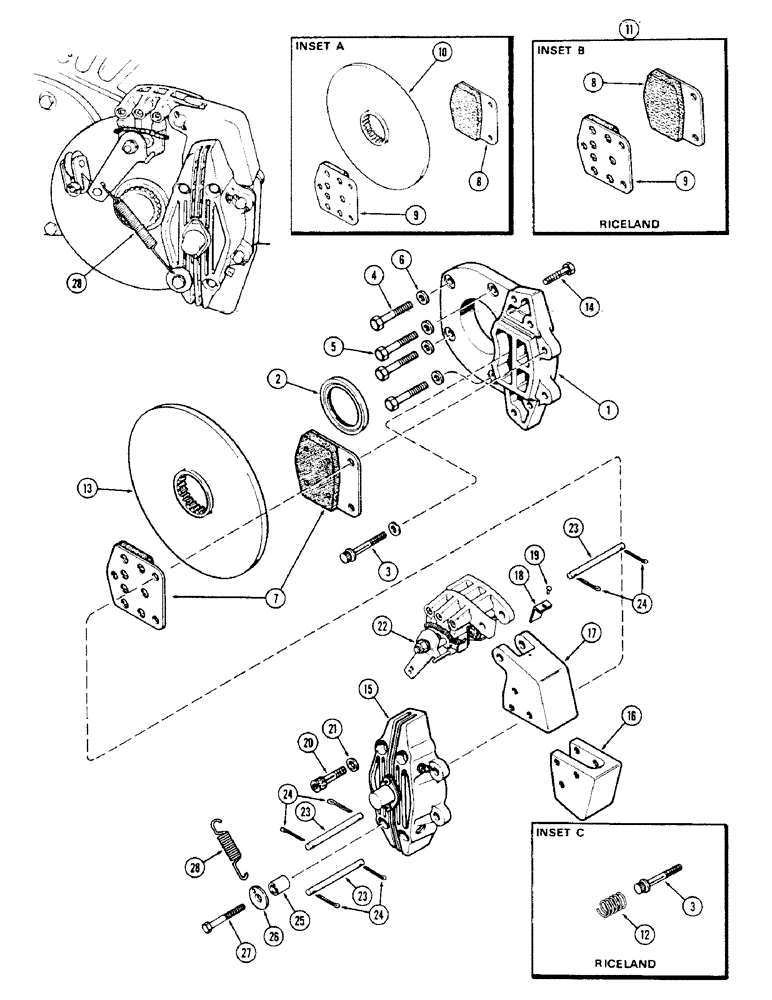

Запчасти Case IH 1175 (121A) - CALIPER BRAKE ASSEMBLY, USED PRIOR TO TRACTOR SERIAL NUMBER 8715247 (07) - BRAKES

1

A61311

ADAPTER - R.H. brake

1шт.

1

A62455

ADAPTER - L.H. brake

1шт.

2

A57658

OIL SEAL

- adapter

1шт.

3

166-120

SPECIAL BOLT,Flg, 5/8" - 11 x 3 1/4"

SCREW - cap, 5/8 x 3-1/4" N.C. hex.

2шт.

4

A61300

BOLT - 5/8 x 3-1/4" N.C. hex. (Jay-Lok)

4шт.

5

113-651

BOLT

- 5/8 x 3-1/4" N.C. hex

4шт.

6

A29881

WASHER

- 41/64 x 1-1/16 x 1/16"

10шт.

7

A45038

KIT

- pad, brake (solid lining) (Replaces A42994)8 and 9

4шт.

A44696

KIT

- brake (Replaces A43363) (See Inset A), Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

PAD - brake (solid lining) (Riceland model) (Replaces A42993) (Order A45038 kit)

2шт.

9

NSS

NOT SOLD SEPARAT

PAD - brake (solid lining) (Riceland model) (Replaces A42993) (Order A45038 kit)

2шт.

10

A44655

DISC

- brake caliper (Riceland model)

2шт.

11

NSS

NOT SOLD SEPARAT

KIT - brake (solid lining) (Riceland M-model) (Order Refs. 8 and 9) (See Inset B)

4шт.

12

A27877

SPRING

- brake pad (Riceland model) (fits over 166-120 cap screw) (See Inset C)

2шт.

13

A61301

DISC

- brake caliper

2шт.

14

113-470

X

BOLT - 1/2 x 4-1/2" N.C. hex

8шт.

15

A65338

BRAKE ASSY.

- R.H. (Replaces A62126) (Repairs Figure 122)

1шт.

15

A65339

BRAKE

ASSY. - L.H. (Replaces A62127) (Repairs Figure 122)

1шт.

16

A62007

SPACER - lower, brake

2шт.

17

A62008

SPACER

BRACE - upper, brake

2шт.

18

A62462

SHIM,.005" Thk

Parking brake .005" Thk

1шт.

18

A62463

SHIM,.010" Thk

Parking brake .010" Thk

1шт.

18

A62464

SHIM - parking brake (.0179")

1шт.

19

168-66

DRIVE SCREW,Type U, Rnd Hd, #6 x 1/4"

- shim, #6 x 1/4" rd. hd. drive

2шт.

20

166-92

SCREW,1/2" - 13 x 2 3/4"

- cap, 1/2 x 2-3/4" N.C. Ferry

8шт.

21

A37029

WASHER

- 33/64 x 7/8 x 1/8"

8шт.

22

A61304

BRAKE ASSY. - parking, R.H. (See Figure 122)

1шт.

22

A61305

BRAKE - parking, L.H.

1шт.

23

A61306

PIN

- brake

6шт.

24

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

12шт.

25

A62063

SPACER

- brake spring

2шт.

26

A62062

RETAINER - spring

2шт.

27

113-458

X

BOLT - 1/2 x 4" N.C. hex

2шт.

28

A36607

SPRING

- brake, parking

2шт.
