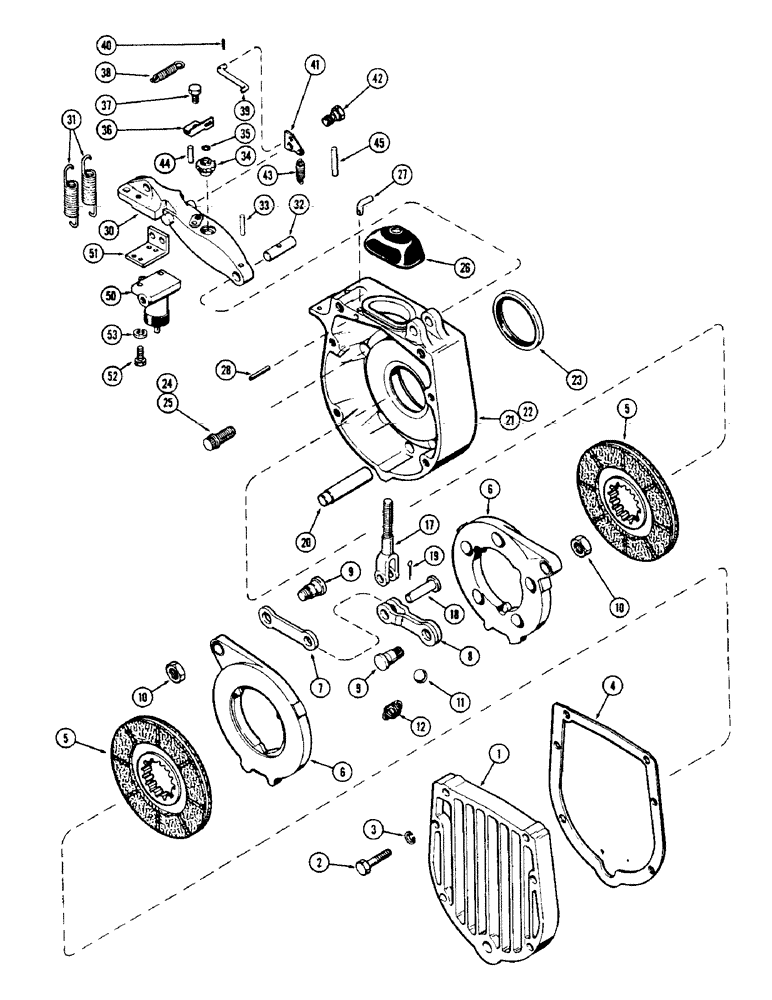

Запчасти Case IH 1175 (120) - DISC BRAKE ASSEMBLY, FIRST USED TRACTOR SERIAL NUMBER 8715247 (07) - BRAKES

1

A58461

COVER

- brake housing

2шт.

2

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

12шт.

3

92-8

LOCK WASHER,1/2"

12шт.

4

A59088

SHIM,.1196" Thk

Brake cover .1196" Thk

1шт.

5

A65189

DISC

- brake (w/bonded lining)

4шт.

6

A41860

DISC

- brake actuating

4шт.

7

A41861

LINK

- single, actuating disc

2шт.

8

A41862

LINK

- straddle, actuating disc

2шт.

9

A41865

BOLT

BOLT - actuating disc link

4шт.

10

129-165

JAM NUT,Jam, 1/2"-20, G5

4шт.

11

A42043

BALL

- actuating disc (1" dia.)

10шт.

12

A41864

SPRING

- disc tension

6шт.

17

A58021

ROD

-, Serial Range: lever-brake

2шт.

18

141-7

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, 5/8 x 1-29/64"

2шт.

19

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

20

A58449

PIN

- anchor, brake disc

2шт.

21

A58454

HOUSING

ASSY. - R.H. brake (Includes: Ref. 23)

1шт.

22

A58455

HOUSING

ASSY. - L.H. brake (Includes: Ref. 23)

1шт.

23

A57658

OIL SEAL

- oil

1шт.

24

A65175

BOLT - front, brake housing, 5/8 x 4" N.C.

6шт.

25

A65176

BOLT

- rear, brake housing (5/8 x 4" N.C. w/Jay-Lock)

4шт.

26

A27465

CAP

- dust, brake rod

2шт.

27

A65191

STUD

- spring hold-down

2шт.

28

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

2шт.

30

A62923

LEVER

- brake actuating

2шт.

31

A35789

SPRING

- return, brake lever (2-3/8" free length)

4шт.

32

A62822

PIN

-, Serial Range: lever-housing

2шт.

33

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

34

A62230

NUT

- adjusting, brake rod (7/16" N.F. ratchet type)

2шт.

35

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - ratchet nut, 3/8 x 9/16 x 3/32"

2шт.

36

A59609

BRACKET

- self-adjusting rod

2шт.

37

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

38

A60555

SPRING

- self-adjusting rod (1-39/64" free length)

2шт.

39

A59607

ROD

- self-adjusting, brake

2шт.

40

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

41

A64490

CAM

- self-adjusting brake

2шт.

42

A58471

STEP BOLT

BOLT - shoulder, Serial Range: cam-lever

2шт.

43

A60489

SPRING

- cam to stud (1-23/32" free length)

2шт.

44

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

2шт.

45

A61216

ROD

- spring, adjuster cam

2шт.

50

A62483

CYLINDER

ASSY. - slave (Repairs Figure 131C)

2шт.

51

A65190

BRACKET

- parking brake pulley

2шт.

52

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- 1/4 x 1-1/2" N.C. hex.

4шт.

53

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
