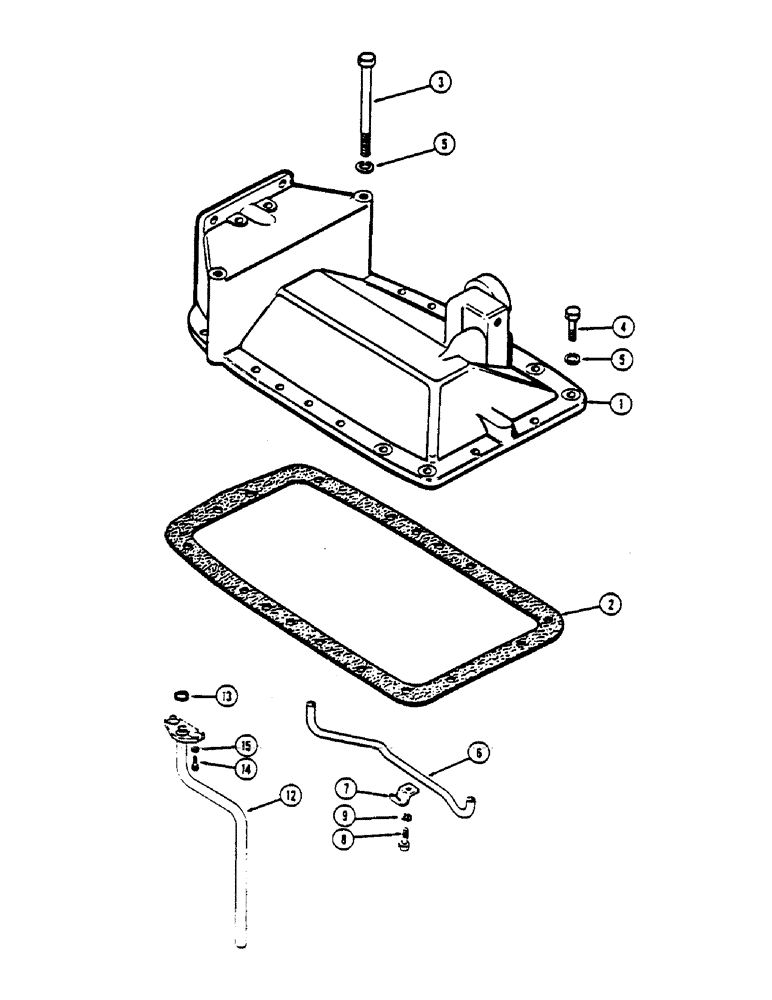

Запчасти Case IH 1175 (162) - TRANSMISSION REAR COVER, WITHOUT HITCH (06) - POWER TRAIN

1

A60637

COVER - rear top, trans. case

1шт.

2

A3299

GASKET -, Serial Range: cover-case

1шт.

3

15-8112

BOLT

- 1/2 x 7" N.C. hex.

2шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

5

92-8

LOCK WASHER,1/2"

14шт.

6

A33521

PIPE CLAMP

TUBE - return, auxiliary valve

1шт.

7

A33554

CLIP - tube

2шт.

8

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

12

A58371

TUBE

- return, hydraulic oil

1шт.

13

A32343

SEAL

- flange (47/64 x 1-13/64 x 13/64")

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.
