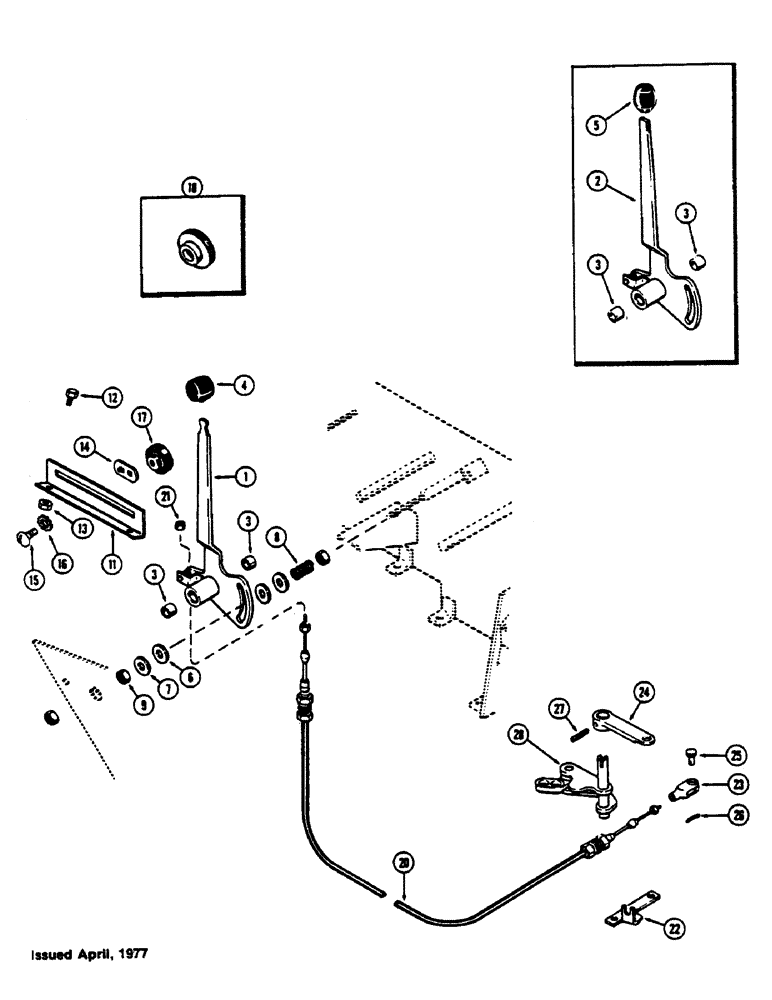

Запчасти Case IH 1175 (155A) - DRAFT CONTROLS (06) - POWER TRAIN

1

A137820

LEVER

ASSY. - hand, D.O.M. (Replaces A63033), Includes: Ref. 3

1шт.

2

A63033

LEVER

ASSY. - hand, draft control (Order A137820 lever and A137806 knob), Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- pivot

2шт.

4

A137806

KNOB

- hand lever (Rubber)

1шт.

5

A65699

KNOB

- lever (Plastic)

1шт.

6

A61069

DISC

- friction, lever

2шт.

7

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4" x 14 ga

2шт.

8

A65583

SPRING

- tension, friction disc (Replaces A26546)

1шт.

9

131-1306

JAM NUT,Jam, 3/8"-16

NUT - jam, 3/8" N.C. hex

2шт.

11

A59273

BRACKET

QUADRANT - draft control lever

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

13

131-113

SPRING NUT,J, Ret, 5/16"-18

- 5/16" N.C. hex

2шт.

14

G15950

STOP

- quadrant, adjustable

1шт.

15

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

16

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER - Shakeproof, 1/2" ext

2шт.

17

A143181

NUT

- knurled, stop adjusting (Plastic) (Replaces G15951)

2шт.

18

G15951

NUT

- knurled, stop adjusting (Metal) (Order A143181)

2шт.

20

A63953

CABLE

- draft control (38") (Replaces A59522)

1шт.

21

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. Keps

1шт.

22

A61037

BRACKET

- cable

1шт.

23

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable to lever, #10-32

1шт.

24

A59521

LEVER

- lower, draft control

1шт.

25

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16 x 9/16"

1шт.

26

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

27

138-2028

PIN,3/16" x 1 1/4", Coiled

1шт.

28

A32310

LINK

- draft sensing (Link C)

1шт.
