(154) - REMOTE HYDRAULIC CONTROLS

Запчасти Case IH 1175 (154) - REMOTE HYDRAULIC CONTROLS (06) - POWER TRAIN

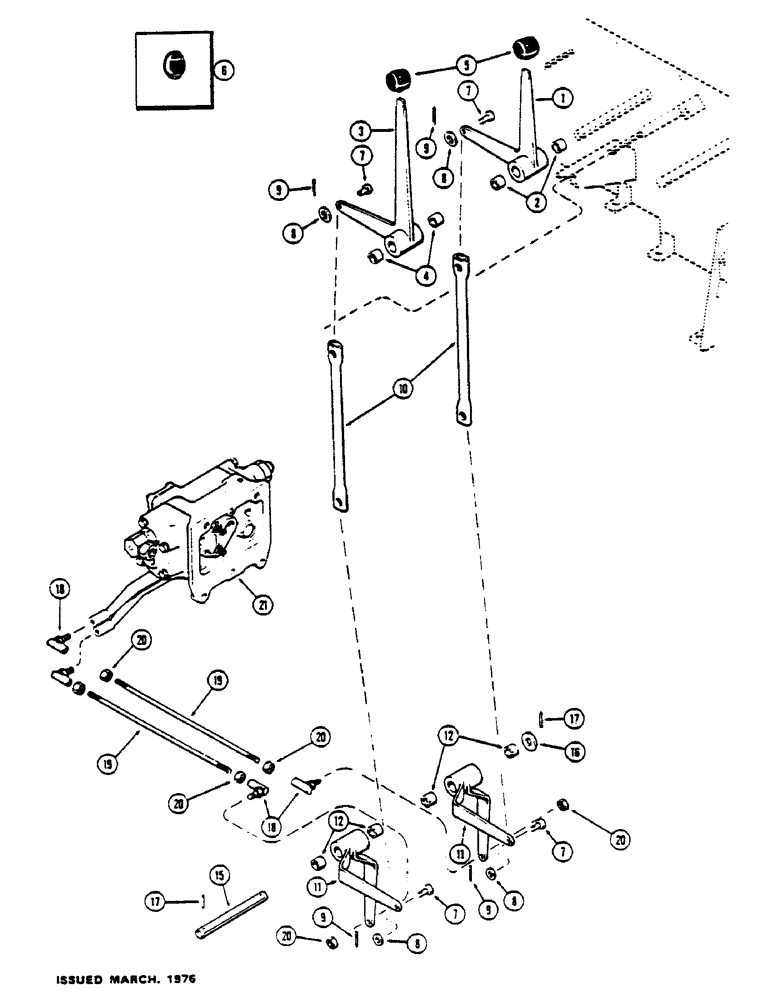

Схема запчастей Case IH 1175 - (154) - REMOTE HYDRAULIC CONTROLS (06) - POWER TRAIN
12
8
17
7
8
19
18
8
7
4
15
21
20
9
18
6
9
3
16
20
20
10
17
11
9
12
9
1
11
8
20
20
7
5
2
7
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A63543

LEVER

ASSY, inner, remote control (Replaces A59525), Includes: Ref. 2

1шт.

2

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Pivot

2шт.

3

A65542

GASKET

LEVER ASSY. - outer, remote control (Replaces A59523), Includes: Ref. 4

1шт.

4

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Pivot

2шт.

5

A137806

KNOB

Remote levers (Rubber)

2шт.

6

A65699

KNOB

Remote levers (Plastic)

2шт.

7

141-3

CLEVIS PIN,5/16" x .940"

5/16 x 13/16"

4шт.

8

195-21

WASHER,5/16"

11/32 x 11/16 x 1/16"

4шт.

9

132-25

COTTER PIN,3/32" x 5/8"

4шт.

10

A61659

ROD

LINK - upper, remote lever

2шт.

11

A59527

SPARE PART ASSY, bellcrank, remote, Includes: Ref. 12

2шт.

12

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Lever

2шт.

15

A59529

SHAFT

Lever

1шт.

16

195-41

WASHER,5/8"

1шт.

17

138-61

LOCK PIN,1/8" x 1", Slotted

2шт.

18

A60604

BALL JOINT

Remote lever rod

4шт.

19

A59519

ROD

SPARE PART Lower, remote lever

2шт.

20

25-115

NUT,5/16"-24, G5

Hex

6шт.

21

REF

INSTRUCTION

VALVE ASSY. - auxiliary (See Figure 168)

1шт.
