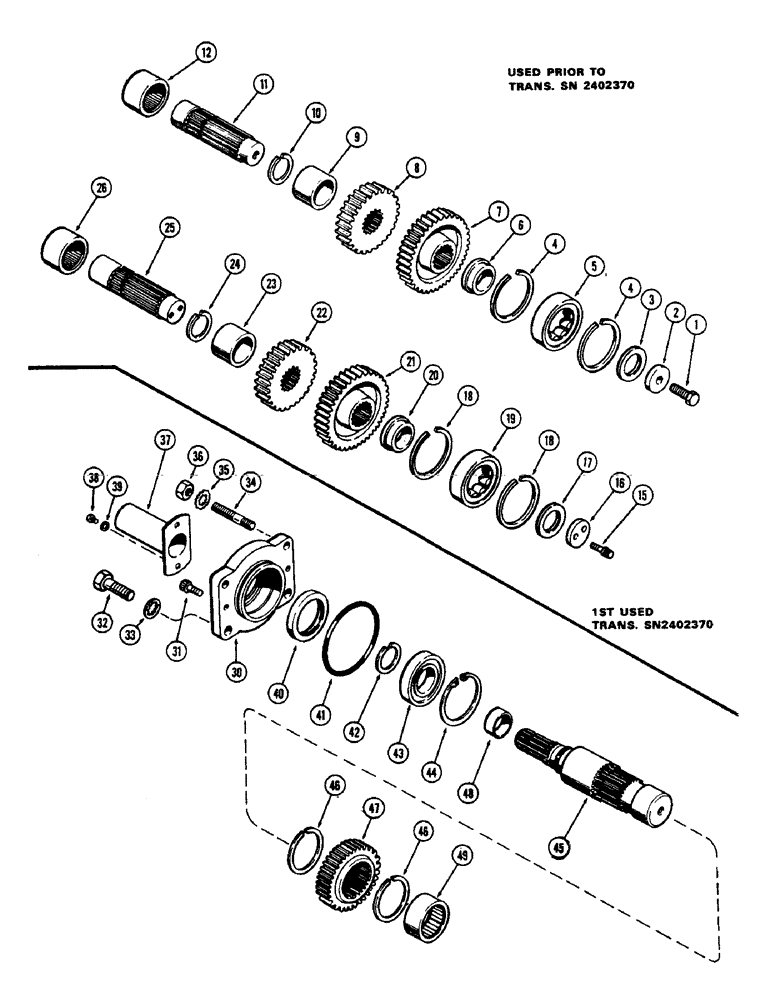

Запчасти Case IH 1175 (152) - P.T.O. IDLER SHAFT, SINGLE SPEED, USED PRIOR TO TRANSMISSION SERIAL NUMBER 2402370 (06) - POWER TRAIN

1

121-415

BOLT,Hex, 1/2" x 1"

- lock, 1/2 x 1" N.C. hex.

1шт.

2

A57462

WASHER

- retaining, 2nd idler shaft

1шт.

3

A57509

PLATE

- inner race

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING - snap, 2nd idler gear

2шт.

5

A32423

BEARING ASSY

BEARING - outer race, front

1шт.

6

A57510

BEARING CONE,1.5748" ID x 2.245" OD x 0.74"

BEARING - inner race

1шт.

7

A32408

GEAR

- driven, 2nd idler (36T)

1шт.

8

A58986

GEAR

- drive, 2nd idler (28T)

1шт.

9

A58207

SPACER

- idler shaft

1шт.

10

A7339

RING

- snap, idler shaft

1шт.

11

A58203

SHAFT

- 2nd idler (Order A65253 Kit)

1шт.

12

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, idler shaft (1-3/4 x 2-1/8 x 1")

1шт.

15

A65246

BOLT,Flanged, 3/8" - 16 x 1", Grade 8

SCREW - cap (3/8 x 1" N.C. 12 pt. flanged)

2шт.

16

A65247

RETAINER

PLATE - retaining, 2nd idler shaft

1шт.

17

A57509

PLATE

- inner race

1шт.

18

A32422

SNAP RING,2.36mm Thk, Int

RING - snap, 2nd idler gear

2шт.

19

A32423

BEARING ASSY

BEARING - outer race, front

1шт.

20

A57510

BEARING CONE,1.5748" ID x 2.245" OD x 0.74"

BEARING - inner race

1шт.

21

A32408

GEAR

- driven, 2nd idler (36T)

1шт.

22

A58986

GEAR

- drive, 2nd idler (28T)

1шт.

23

A65245

SPACER

- idler shaft

1шт.

24

A7339

RING

- snap, idler shaft

1шт.

25

A65248

SHAFT

- 2nd idler

1шт.

26

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, idler shaft (1-3/4 x 2-1/8 x 1")

1шт.

30

A62389

CARRIER - bearing, output shaft

1шт.

31

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

SCREW - cap, 3/8 x 1" N.C. ferry

2шт.

32

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

2шт.

33

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

34

A58195

STUD

- bearing carrier (5/8" N.C. x 3-1/2")

2шт.

35

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

36

25-1010

NUT,5/8"-11, G5

2шт.

37

A32456

GUARD - output shaft

1шт.

38

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

A57708

SEAL

- oil, output shaft (1-3/4 x 2-1/2 x 1/2")

1шт.

41

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - carrier (4 x 4-1/4 x 1/8")

1шт.

42

A27085

RING

- snap, rear bearing

1шт.

43

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, rear (1-49/64 x 3-11/32 x 3/4")

1шт.

44

A57921

SNAP RING,3.346", Int, #334

Ring, Snap, , brg carrier 3.346", Int, #334

1шт.

45

A59026

SHAFT

- output

1шт.

46

A58234

SNAP RING,#237, 2.295", Ext

RING - snap, output shaft

2шт.

47

A59021

GEAR - output (32T)

1шт.

48

A32419

SLEEVE CYLINDER

SLEEVE - oil seal (1-5/8 x 1-3/4 x 5/8")

1шт.

49

A58197

NEEDLE BEARING,2.25" ID x 2.6255" OD x 1.25"

BEARING - needle, output shaft

1шт.
