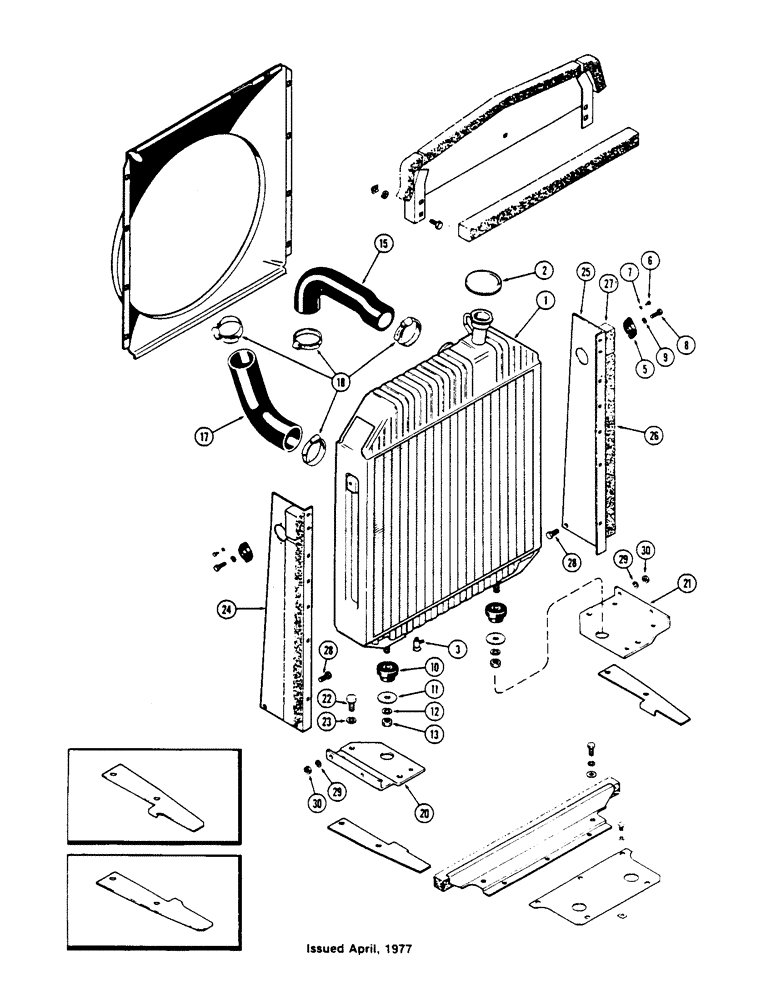

Запчасти Case IH 1175 (004) - RADIATOR AND ATTACHING PARTS, (451BDT) DIESEL ENGINE (02) - ENGINE

1

A62852

RADIATOR

1шт.

2

A141846

CAP

- radiator (10 PSI non-vented) (1st used trac. ser. no. 8808749)

1шт.

2

A61784

CAP

- radiator (14 PSI) to trac., Serial Range: -8808749

1шт.

3

A23656

COCK, DRAIN

VALVE - drain, radiator (1/4" P.T.)

1шт.

5

A59862

ANCHOR

MOUNT - side, radiator support

2шт.

6

187-1303

SELF-TAP SCREW,Hex Hd, #6 x 3/8"

SCREW - #6-32 x 3/8" rd. hd.

4шт.

7

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

4шт.

8

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

A59863

MOUNTING PARTS

MOUNT - bottom, radiator support

2шт.

11

51200247

WASHER

- bottom mount, Reverse Idler Gear

2шт.

12

192-163

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

A59887

LARGE HOSE,2.50" ID x 9.80", SAE 20R4 CLASS D1 OR D2

RADIATOR HOSE, , Upper Inlet 2.50" ID x 9.80", SAE 20R4 CLASS D1 OR D2

1шт.

17

A61931

HOSE,2.62" ID x 5.50", SAE 20R4 CLASS SC

RADIATOR HOSE, , Lower Outlet 2.62" ID x 5.50", SAE 20R4 CLASS SC

1шт.

18

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16" to 3-1/4"

4шт.

20

A59178

PLATE - R.H., radiator support

1шт.

21

A59179

PLATE - L.H., radiator support

1шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- 1/2 x 1-1/8" N.C. hex

4шт.

23

92-8

LOCK WASHER,1/2"

4шт.

24

A61718

SUPPORT ASSY. - R.H. side, Includes: Ref. 26 and 27

1шт.

25

A61719

SUPPORT

ASSY. - L.H. side

1шт.

26

A59873

SEAL

- lower, radiator side, to be attached with adhesive 345-22

1шт.

27

A59890

SEAL

- upper, radiator side, to be attached with adhesive 345-22

3шт.

28

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.
