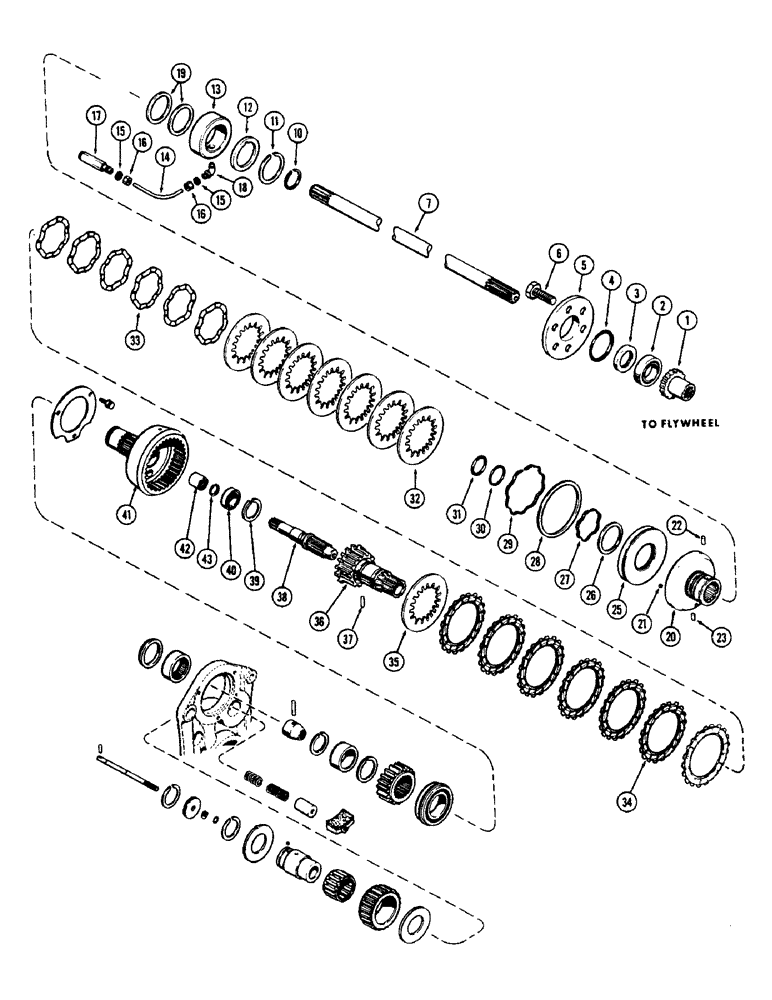

Запчасти Case IH 1175 (146) - P.T.O. DRIVE AND CLUTCH (06) - POWER TRAIN

1

A34522

SLEEVE

- drive shaft front

1шт.

2

A60023

BEARING ASSY,34.99mm ID x 62mm OD x 14mm W

BEARING - pilot, drive shaft front

1шт.

3

A57479

OIL SEAL

- oil, drive shaft front (1-1/2 x 2-1/8 x 7/16")

1шт.

4

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - retainer (2-1/2 x 2-3/4 x 1/8")

1шт.

5

A7145

RETAINER

- front oil seal

1шт.

6

114-622

X

BOLT - 5/8 x 2" N.C. hex.

6шт.

7

A34435

SHAFT

- drive, P.T.O. and hyd. pump

1шт.

10

A62195

SNAP RING,#156K, 1.453", Ext, Spiral

RING - snap, piston carrier (small)

1шт.

11

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, piston carrier (large)

1шт.

12

A62849

WASHER,58.67mm ID x 76.2mm OD x 6.35mm Thk

- retainer, collar

1шт.

13

A59006

COLLAR

- clutch

1шт.

14

A62355

TUBE

ASSY. - clutch feed, Includes: Ref. 15 and 16

1шт.

15

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

2шт.

16

222-114

NUT,5/8"-24

NUT - 3/8" tube

2шт.

17

A59015

CONNECTOR, ELEC

CONNECTOR -, Serial Range: tube-housing

1шт.

18

222-4047

ELBOW

- tube to collar, 1/4" P.T.

1шт.

19

A59005

SEAL

RING - seal, piston carrier

2шт.

20

A62200

CARRIER

- piston

1шт.

21

211-6

BALL,7/32" Dia

steel 7/32" Dia

1шт.

22

135-138

GROOVED PIN,3/16" x 5/8", Type A, Hardened

Pin, Grooved, , shearproof 3/16" x 5/8", Type A, Hardened

1шт.

23

138-2044

PIN,1/16" x 1/2", Coiled

- 1/16 x 1/2" spirol

1шт.

25

A59008

PISTON

- clutch

1шт.

26

A59009

RING

- piston seal (small)

1шт.

27

A59010

SPRING

- expander (small)

1шт.

28

A59011

RING

- piston seal (large)

1шт.

29

A59012

SPRING

- expander (large)

1шт.

30

A62193

O-RING,1.424" ID x 1.63" OD

"O" RING - (1-7/16 x 1-5/8 x 1/4")

1шт.

31

A62194

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

"O" RING - (1-1/2 x 1-11/16 x 3/32")

1шт.

32

A66365

PLATE

- clutch, driven (internal teeth) (Replaces A65425)

7шт.

33

A59013

SPRING

- separator, clutch plate

6шт.

34

A66364

PLATE

- clutch, drive (external teeth) (Replaces A59231)

7шт.

35

A61618

PLATE

- backing, clutch

1шт.

36

A62199

HUB

- clutch, P.T.O. drive

1шт.

37

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, 1/8" x 13/16", Slotted

1шт.

38

A59020

SHAFT

- drive, hydraulic pump

1шт.

39

A32439

RING

- snap, ball bearing

1шт.

40

A32437

BALL BEARING,24.99mm ID x 47mm OD x 12mm W

BEARING - ball, clutch drum

1шт.

41

A62890

CLUTCH

DRUM ASSY. - clutch, P.T.O., Includes: Ref. 42

1шт.

42

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

1шт.

43

A32438

SNAP RING

RING - snap, needle bearing

1шт.
