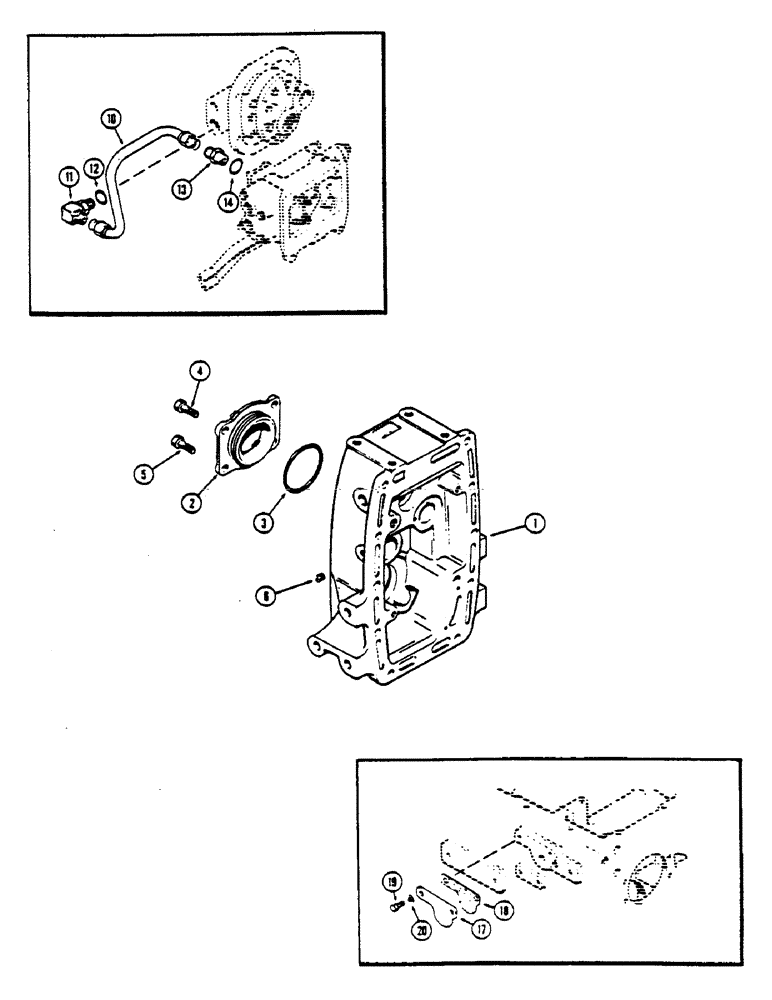

Запчасти Case IH 1175 (143A) - P.T.O. HOUSING, WITHOUT P.T.O. (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING ASSY - (Order from Figure 144)

1шт.

2

A58193

SPARE PART Rear opening

1шт.

3

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Cover

1шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

5

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

6

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

PTO housing

1шт.

10

A60294

TUBE

Pump to auxiliary valve

1шт.

11

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

A60295

COVER - PTO oil return

1шт.

18

A60296

GASKET

Cover

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.
