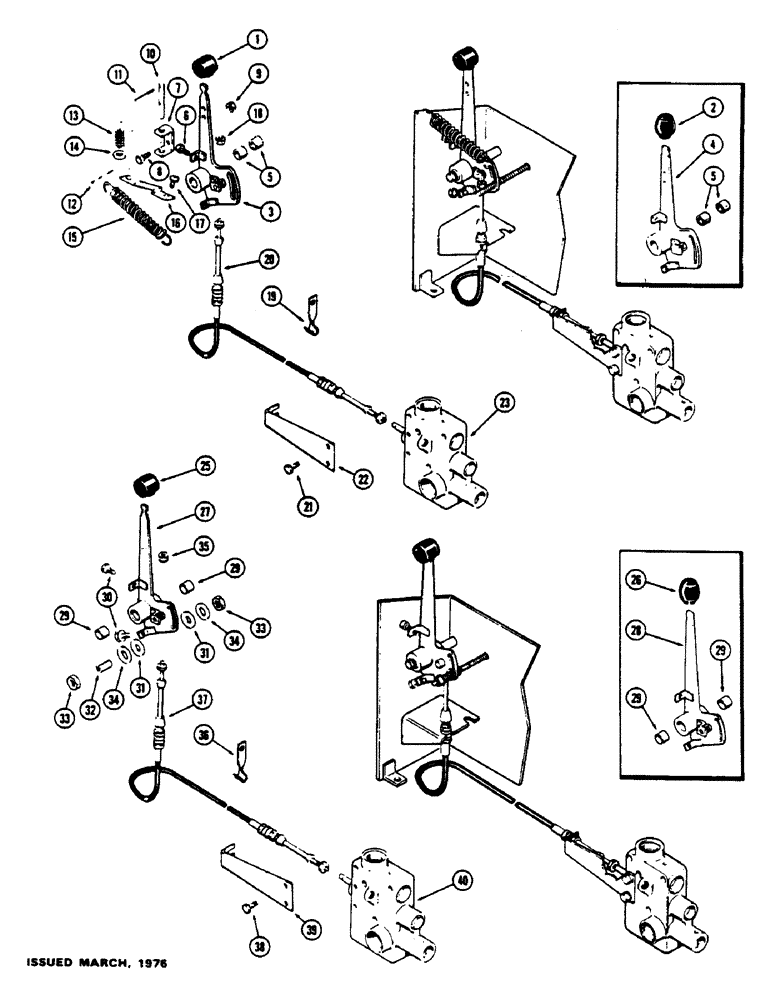

Запчасти Case IH 1175 (142) - P.T.O. CONTROL LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

Hand lever (Rubber), w/positive on-off

1шт.

2

A65699

KNOB

PTO hand lever (Plastic), w/ positive on-off

1шт.

3

A137817

LEVER

ASSY - PTO hand (Replaces A65574), w/ positive on-off, Includes Ref. 5

1шт.

4

A65574

LEVER

ASSY - hand, PTO (Order A137817 lever and A137806 knob), w/ positive on-off, Includes Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Lever, w/ positive on-off

2шт.

6

A59463

BOLT

1/4 x 5/8" N.C. hex., nylon, w/ positive on-off

2шт.

A65481

KIT

Positive "ON-OFF", PTO control, with, Includes Ref. 7 - 17

1шт.

7

A65478

BRACKET

Hand lever, w/ positive on-off

1шт.

8

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

w/ positive on-off

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

w/ Positive on-off

2шт.

10

A65479

PIN

Lever lock, w/ positive on-off

1шт.

11

138-324

LOCK PIN,3/16" x 7/8", Slotted

w/positive on-off

1шт.

12

138-321

LOCK PIN,3/16" x 2", Slotted

w/ positive on-off

1шт.

13

A137733

SPRING

Lock pin, w/ positive on-off

1шт.

14

195-529

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16"), w/ positive on-off

1шт.

15

A35789

SPRING

Return, control lever, w/ positive on-off

1шт.

16

A66387

LOCK

Lever position, w/ positive on-off

1шт.

17

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

SPARE PART Self-tapping, w/ positive on-off

2шт.

18

193-1000

NUT,Keps, w/LW,#10-32

w/ext. skpf. washer, w/ positive on-off

1шт.

19

A59467

SPARE PART Cable, w/ positive on-off

1шт.

20

A59466

CABLE

PTO control, w/ positive on-off

1шт.

21

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

w/ positive on-off

2шт.

22

A60267

BRACKET

PTO cable, w/ positive on-off

1шт.

23

REF

INSTRUCTION

VALVE ASSY. - flow divider and PTO control (See Figure 164), w/ positive on-off

1шт.

25

A137806

KNOB

Hand lever (Rubber), w/o positive on-off

1шт.

26

A65699

KNOB

PTO hand lever (Plastic), w/o positive on-off

1шт.

27

A137817

LEVER

ASSY. - PTO hand (Replaces A65574), w/o positive on-off, Includes Ref. 29

1шт.

28

A65574

LEVER

ASSY. - hand, PTO (Order A137817 lever and A137866 knob), w/o positive on-off, Includes Ref. 29

1шт.

29

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Lever, w/o positive on-off

2шт.

30

A59463

BOLT

1/4 x 5/8" N.C. hex., nylon, w/o positive on-off

2шт.

31

A61069

DISC

Friction, 25/64 x 1-1/4 x 1/8", w/o positive on-off

2шт.

32

A65583

SPRING

Compression, friction disc, w/o positive on-off

1шт.

33

131-1306

JAM NUT,Jam, 3/8"-16

Top face lock, w/o positive on-off

2шт.

34

195-2172

WASHER,7/16" x 1 1/4" x .083"

w/o positive on-off

2шт.

36

A59467

SPARE PART Cable, w/o positive on-off

1шт.

37

A59466

CABLE

Control, PTO valve, w/o positive on-off

1шт.

38

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

w/o positive on-off

2шт.

39

A60267

BRACKET

Cable, w/o positive on-off

1шт.

40

REF

INSTRUCTION

VALVE ASSY. - PTO control (See Figure 164), w/o positive on-off

1шт.
